Door Lock/Window Switch - Driver X4 (AN3 or KA1)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

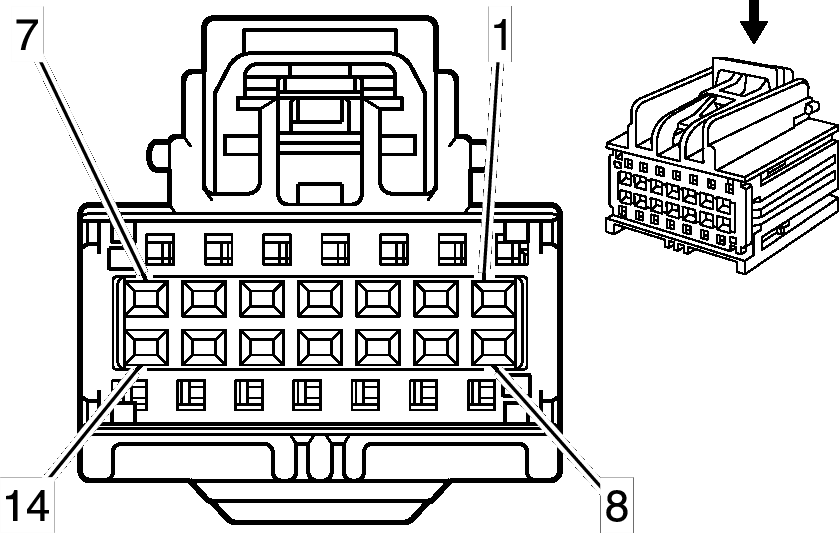

Fig 1: Door Lock/Window Switch - Driver X4 (AN3 or KA1) Connector End View
GM1664522Courtesy of GENERAL MOTORS CORP.
Door Lock/Window Switch - Driver X4 (AN3 or KA1)

Pin Wire Circuit Function
1 0.35 WH/BK 6177 Driver Heated Seat Medium Temperature Indicator Control
2 0.35 D-GN 1661 Driver Heated Seat High Temperature Indicator Control (AN3)
0.35 BK/D-GN 1661 Driver Heated Seat High Temperature Indicator Control (KA1)
3 0.35 L-GN 6098 Driver Cooled Seat Switch Signal (KB6)
4 0.35 L-BU 5978 Low Reference (AN3)
0.35 BK/WH 6184 Low Reference (KA1)
5 0.35 OG 614 Low Reference (AN3)
6 0.35 D-BU 6172 Driver Heated Seat Back and Cushion Indicator Control (AN3)
0.35 BK 6172 Driver Heated Seat Back and Cushion Indicator Control (KA1)
7 0.35 GY 6175 Driver Heated Seat Back Indicator Control
8 - - Not Used
9 0.35 L-BU 1662 Driver Heated Seat Low Temperature Indicator Control (AN3)
0.35 D-BU 1662 Driver Heated Seat Low Temperature Indicator Control (KA1)
10 0.35 BN 6173 Driver Heated Seat Back and Cushion Indicator Control
11 0.35 PU 6174 Driver Heated Seat Back Indicator Control
12 0.35 OG 6178 Driver Cooled Seat Indicator Control (KB6)
13 0.35 BN/WH 6064 Memory Switch Dimming Control (AN3)
0.35 BN/WH 6176 Heated Seat Switch Dimming Control (KA1)
14 0.35 GY/BK 5979 Memory Function Switch Control (AN3)
Connector Part Information
  • OEM Connector: 15127039
  • Service Connector: 15127039
  • Description: 14-Way F Kaizen 0.64 Series (GY)
Terminal Part Information
  • Terminal/Tray: SAIT-A03T-M064/14
  • Core/Insulation Crimp: P/P
  • Release Tool/Test Probe: J-38125-215A/J-35616-64B (L-BU)
