Body Control Module (BCM) - C5
WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Body Control Module (BCM) - C5
 Courtesy of GENERAL MOTORS CORP.
|

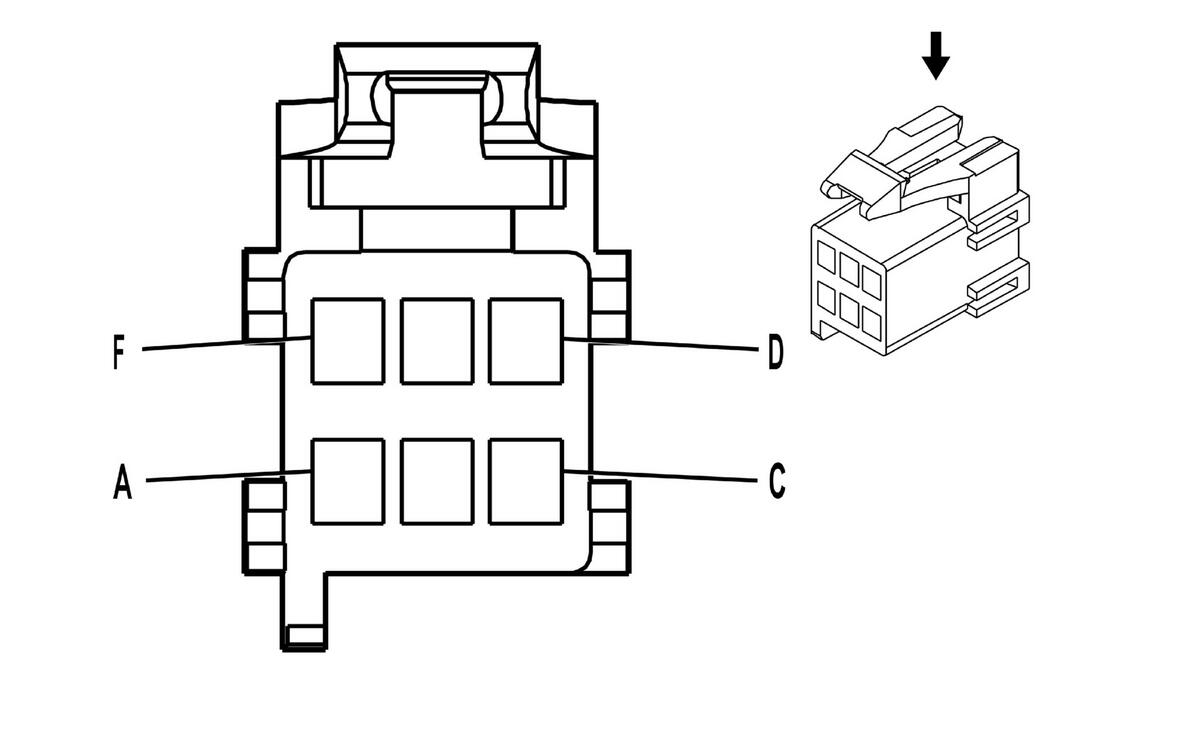

| Connector Part Information |
- 12177195
- 6-Way F Metri-Pack 150 Series (BK)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A-C |
- |
- |
Not Used |
| D |
OG |
2140 |
Battery Positive Voltage |
| E |
GY/BK |
690 |
Courtesy Lamp Control |
| F |
L-GN |
24 |
Backup Lamp Supply Voltage |
