Oxygen Sensor: Locations



Engine Controls Component Views

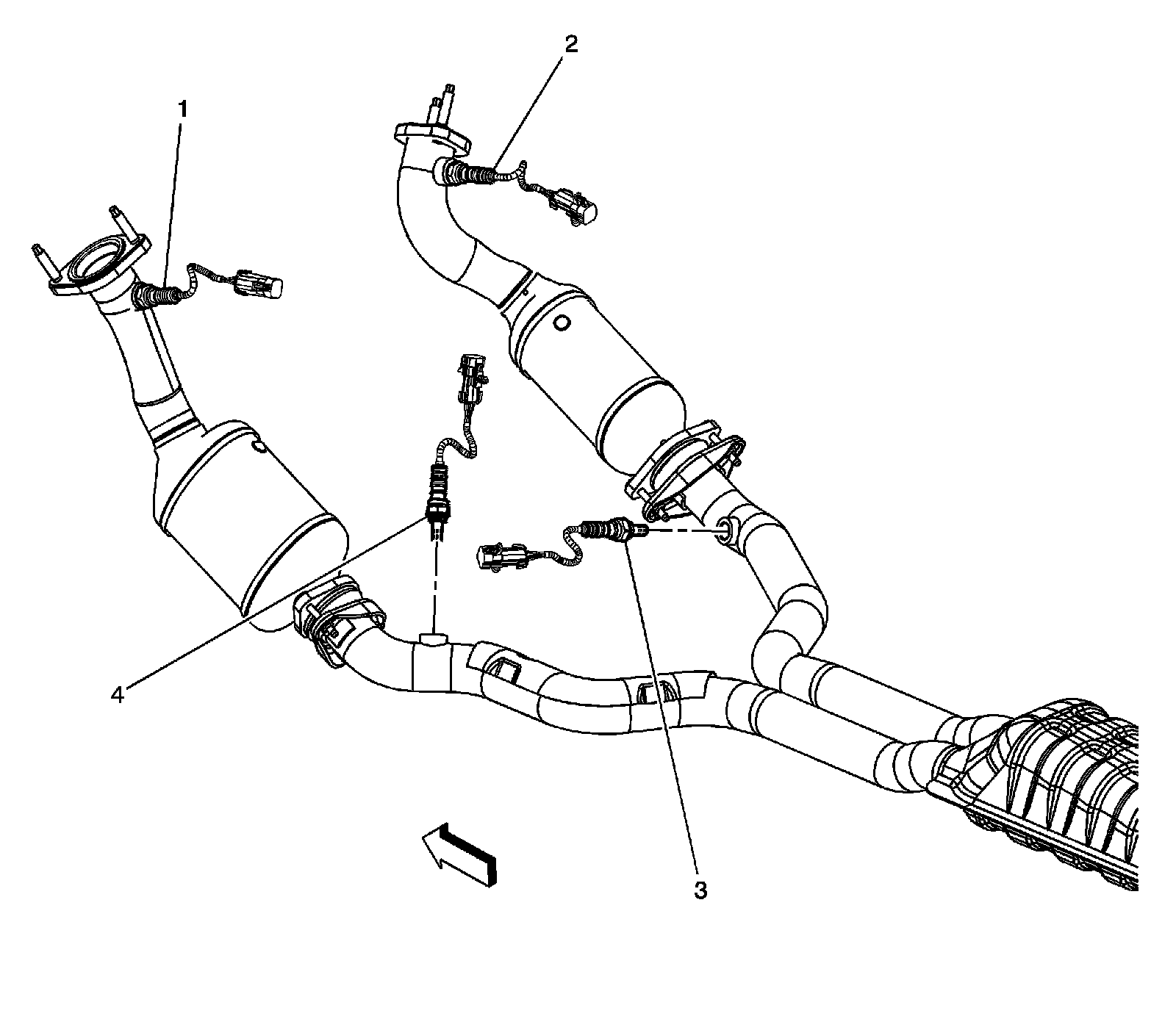

Exhaust Pipes




1 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1
2 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1
3 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2
4 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2
