Electronic Brake Control Module: Locations

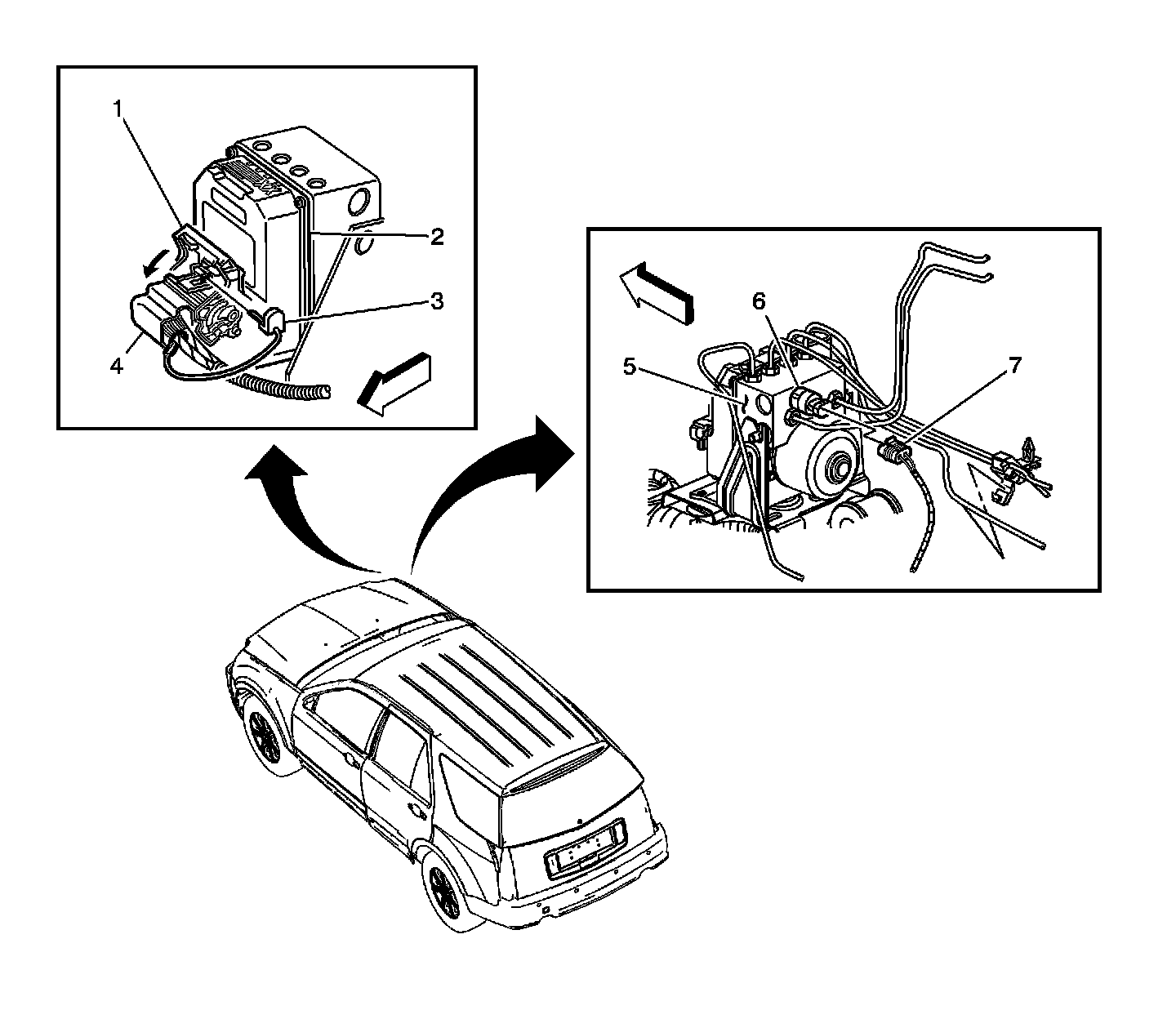

Right Front of Vehicle Near the Right Front Wheel

Right Front Of Vehicle Near The Right Front Wheel:

1 - EBCM Connector Lock
2 - Electronic Brake Control Module (EBCM)
3 - EBCM Connector Position Assurance Retainer
4 - EBCM Connector
5 - Brake Pressure Modulator Valve (BPMV)
6 - Brake Fluid Pressure Sensor
7 - Brake Fluid Pressure Sensor Connector
