Fuel Tank Pressure Sensor: Locations

Engine Controls Component Views

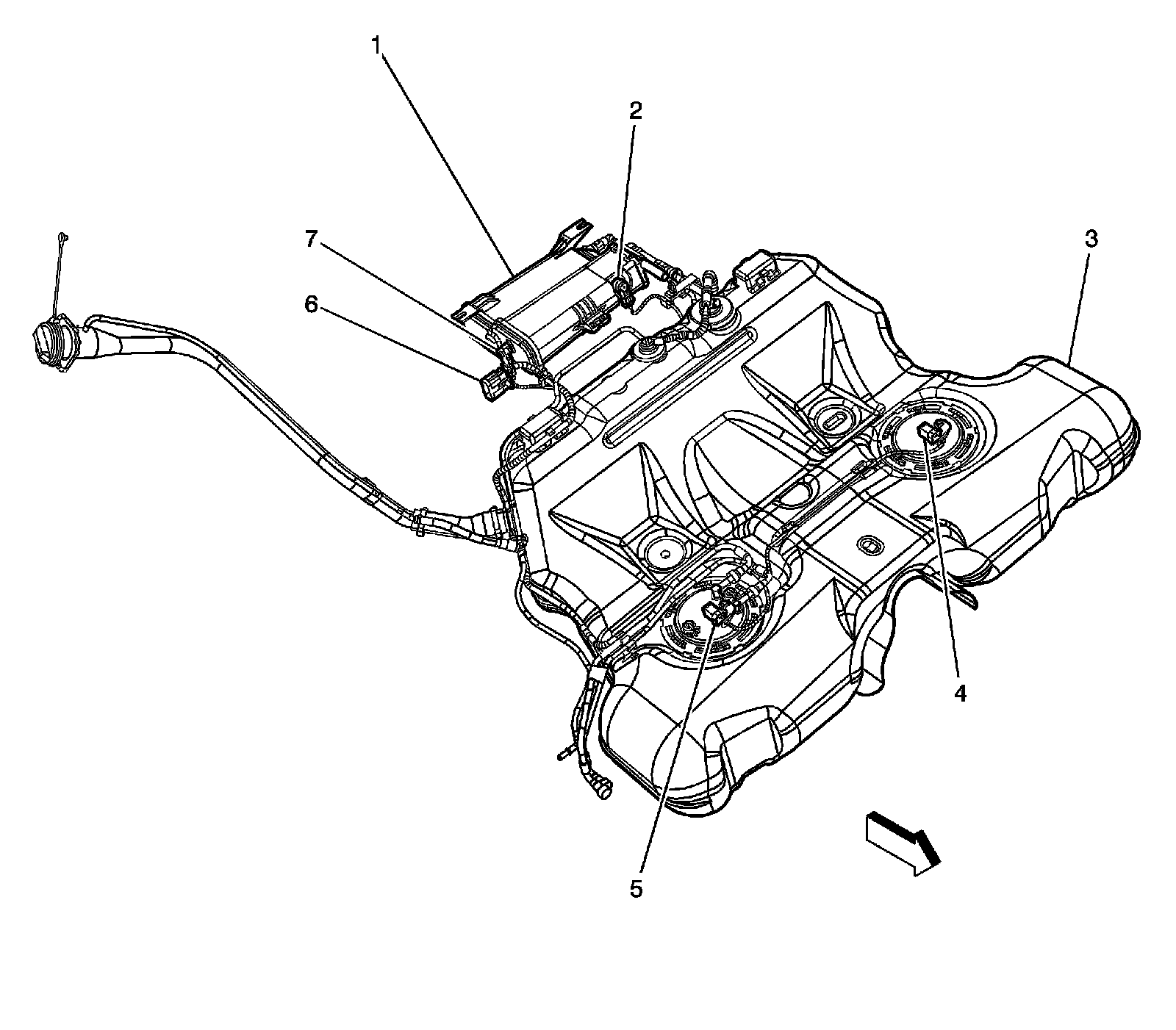

Fuel Tank Components




1 - EVAP Canister
2 - Evaporative Emissions (EVAP) Canister Vent Solenoid (LY7/LH2)
3 - Fuel Tank
4 - Secondary Fuel Sender Assembly
5 - Fuel Pump and Sender Assembly (LY7/LH2)
6 - C420
7 - Fuel Tank Pressure (FTP) Sensor (LY7/LH2)
