Scan Tool Output Controls



Scan Tool Output Controls (5L40-E/5L50-E)

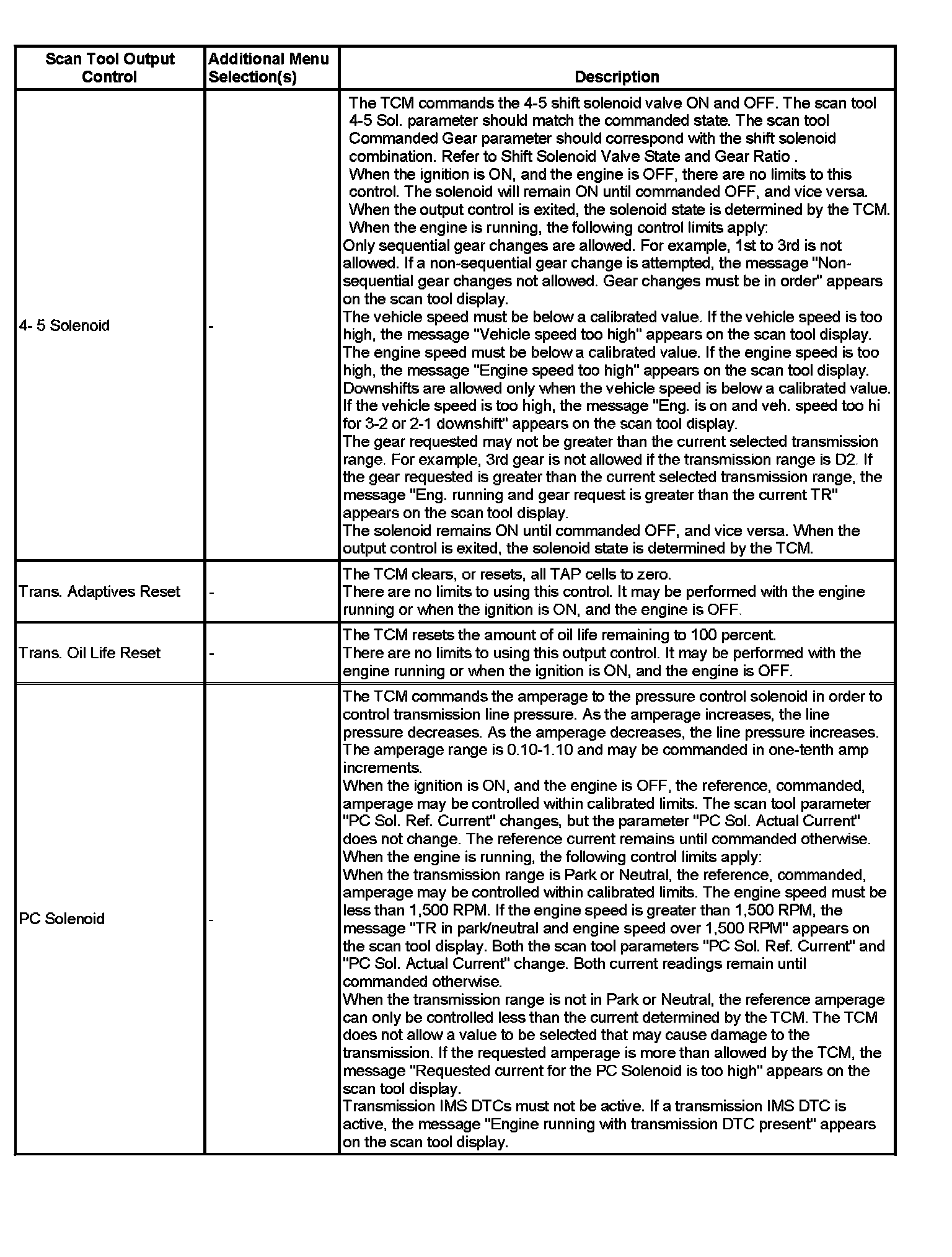

Scan Tool Output Controls (Part 1):

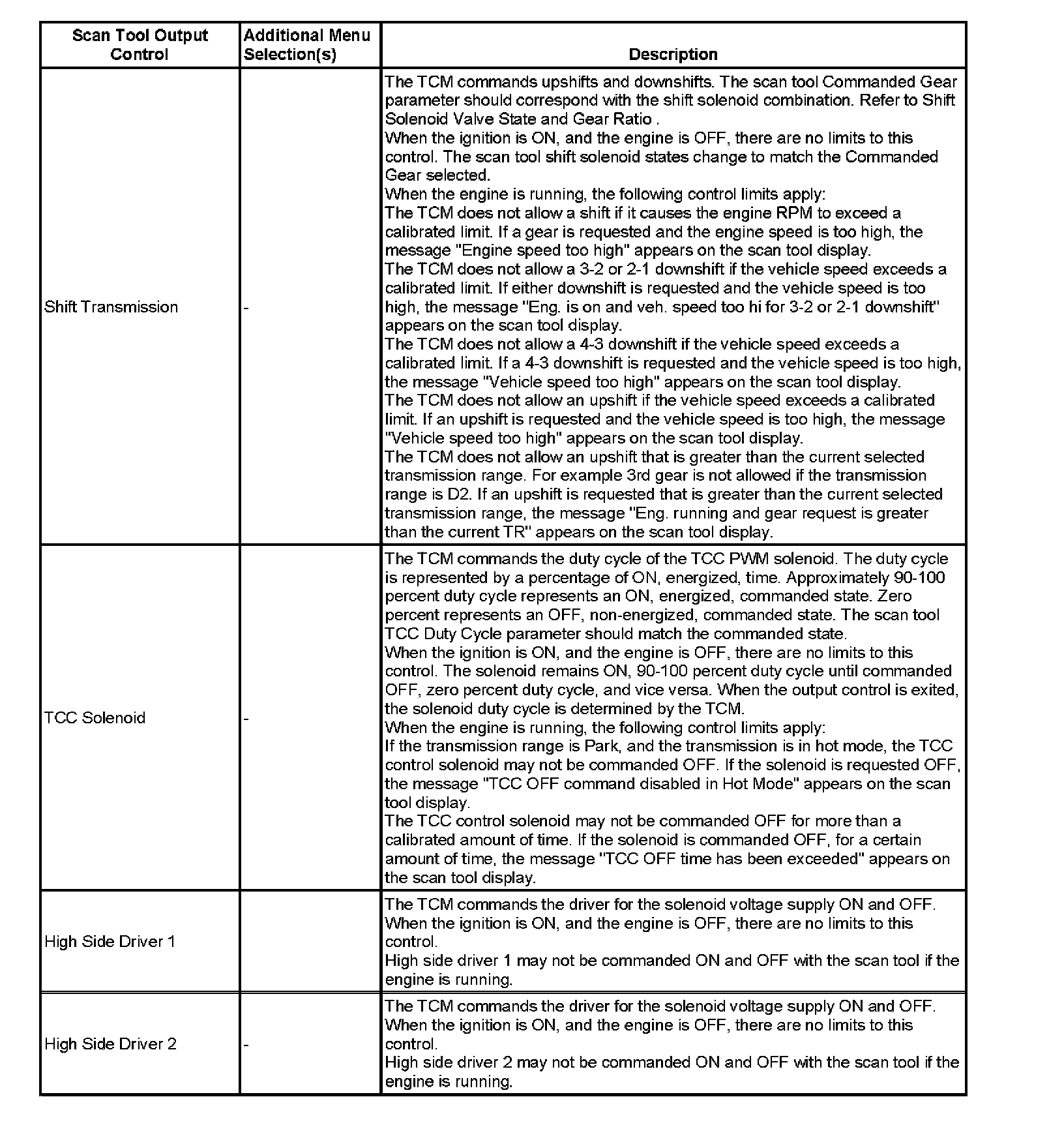

Scan Tool Output Controls (Part 2):

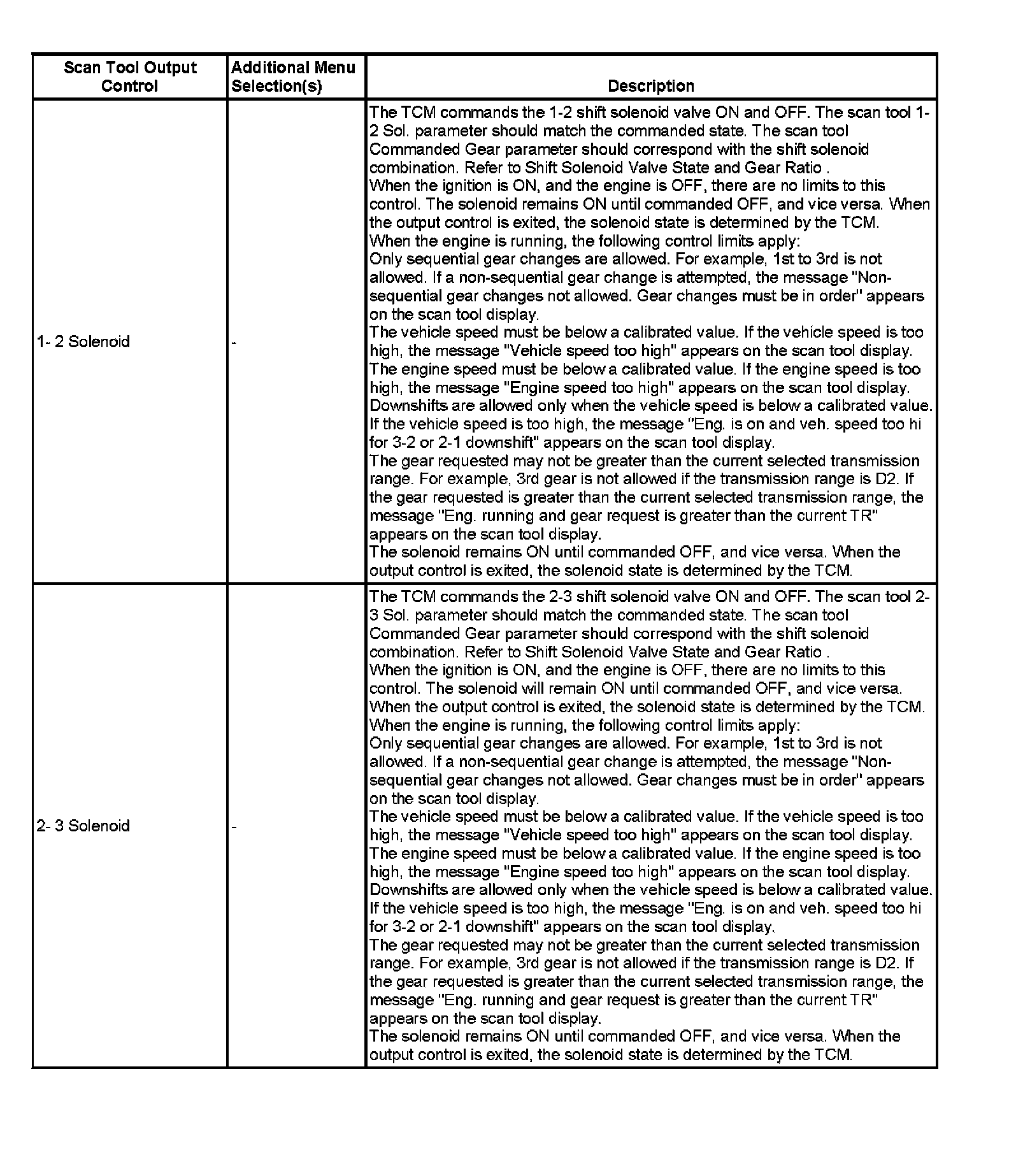

Scan Tool Output Controls (Part 3):
