Installation Procedure

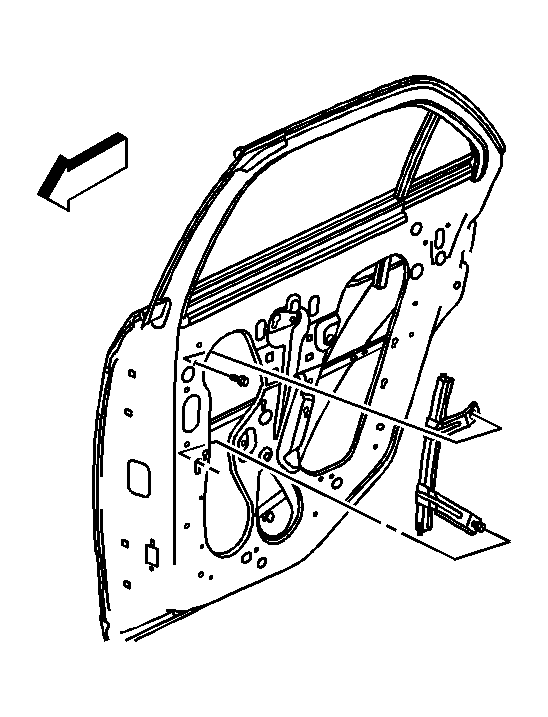

    Fig 1: View Of Rear Door Front Window Channel
    GM758970Courtesy of GENERAL MOTORS CORP.
  1. Install the front window channel into the door, top end first.
  2. Insert the lower bolt into the keyhole slot.
  3. Rotate the top of the front window channel rearward and align on the lower edge of the window.
    4. NOTE: Refer to Fastener Notice .
  4. Install the upper bolt.

    Tighten:  Tighten the bolts to 9 N.m (80 lb in).

  5. Install the water deflector. Refer to Rear Side Door Water Deflector Replacement .
  6. Install the door trim panel. Refer to Rear Side Door Trim Panel Replacement .
