Vacuum Bypass Valve Connector End View

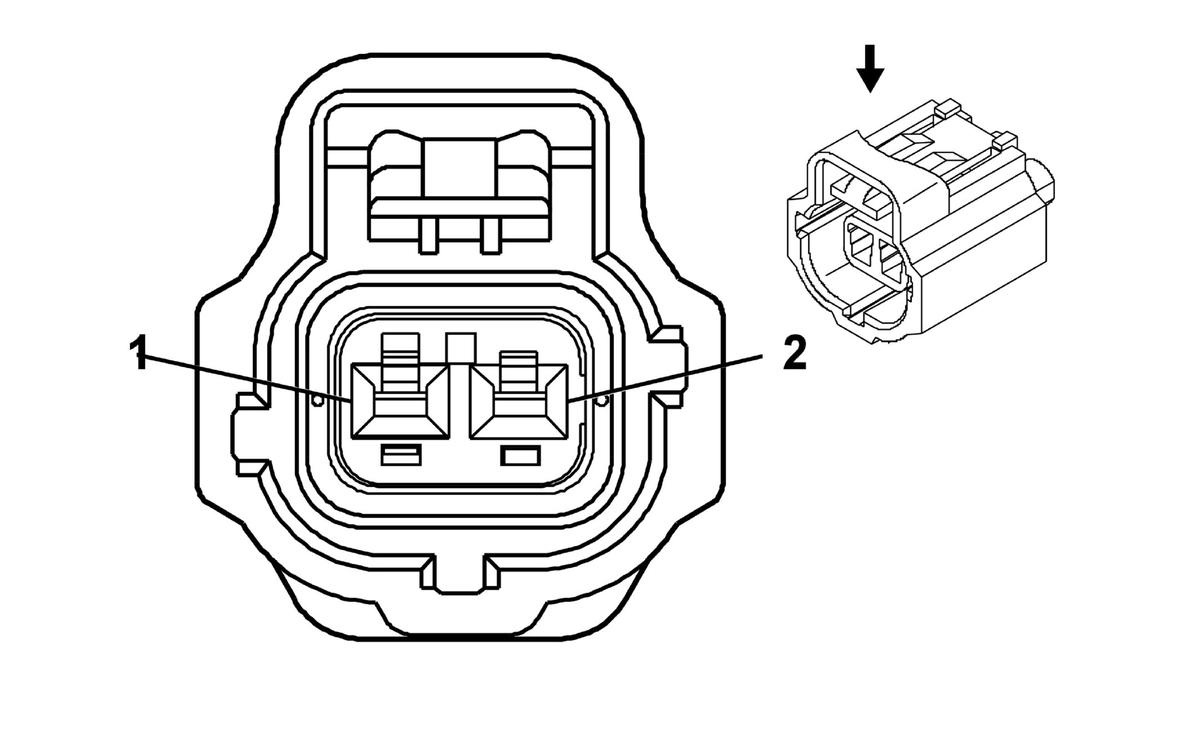

Fig 1: Vacuum Bypass Valve Connector End View
GM1701981Courtesy of GENERAL MOTORS CORP.
Vacuum Bypass Valve Connector Parts Information

Connector Part Information
  • OEM: 184006-2
  • Service: 88988501
  • Description: 2-Way M Asm Key D-C3 AMP (GY)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Vacuum Bypass Valve Connector End View

Pin Wire Color Circuit No. Function
1 PK/BK 5290 Ignition 1 Voltage
2 L-BU 7126 Super Charger Vacuum Bypass Valve Control
