Radio Connector End View - C3

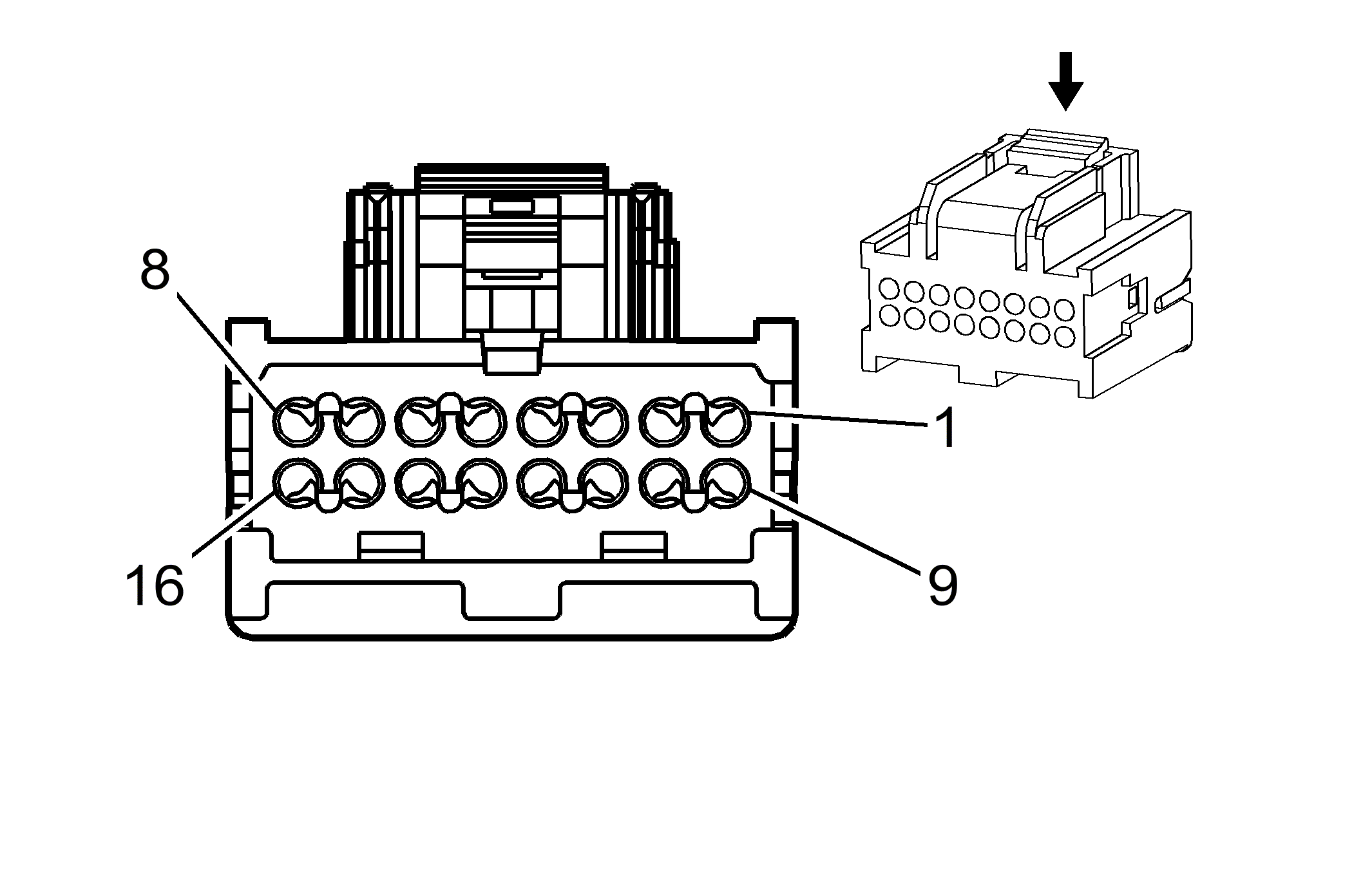

Fig 1: Radio - C3 Connector End View
GM1454404Courtesy of GENERAL MOTORS CORP.
Radio - C3 Connector Parts Information

Connector Part Information
  • OEM: 15394149
  • Service: 89047195
  • Description: 16-Way F Micro 64 Series (GY)
Terminal Part Information
  • Pins: 1, 2, 3, 4, 5, 7, 8, 9, 10, 11, 12, 15, 16
  • Terminal/Tray: 15359541/4
  • Core/Insulation Crimp: M/M
  • Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)
Radio - C3 Connector End View

Pin Wire Color Circuit No. Function
1 RD/WH 2240 Battery Positive Voltage
2 TN 511 Left Low Level Audio Signal
3 D-GN/WH 512 Right Low Level Audio Signal
4 GY 655 Cellular Telephone Microphone Signal
5 PK/BK 5152 Voice Recognition Audio Low Reference
6 - - Not Used
7 YE 6817 LED Backlight Dimming Control
8 BK/WH 851 Ground
9 RD/WH 2240 Battery Positive Voltage
10 D-GN 1947 Left Low Level Audio (-)
11 L-GN 1948 Right Low Level Audio (-)
12 BARE 2012 Drain Wire
13-14 - - Not Used
15 D-GN 5060 Low Speed GMLAN Serial Data
16 BK/WH 851 Ground
