Audio Amplifier Connector End View - C1 (w/UX8)
Audio Amplifier - C1 (w/UX8) Connector Parts Information
Connector Part Information
|
Terminal Part Information
|

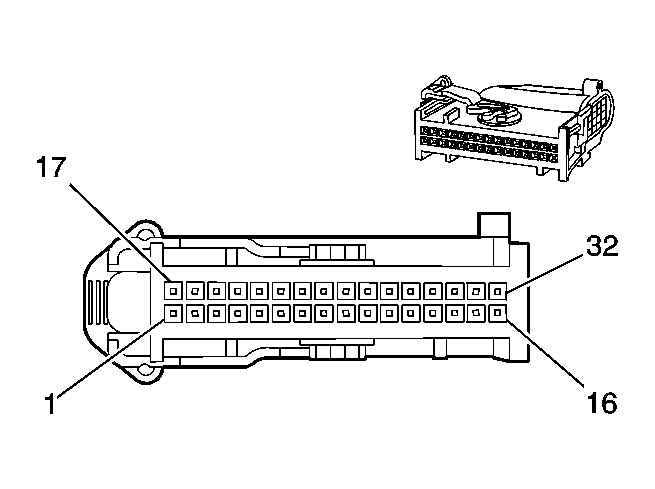

Audio Amplifier - C1 (w/UX8) Connector End View
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | TN | 511 | Left Front Low Level Audio Signal (YQ2) |
| 2 | D-GN/WH | 512 | Right Front Low Level Audio Signal (YQ2) |
| 3 | D-BU | 658 | Cellular Telephone Voice Signal (YQ2 w/ UE1) |
| 4-9 | - | - | Not Used |
| 10 | D-GN | 5060 | Low Speed GMLAN Serial Data (YQ2) |
| 11-16 | - | - | Not Used |
| 17 | D-GN | 1947 | Left Front Low Level Audio (-) |
| 18 | L-GN | 1948 | Right Front Low Level Audio (-) |
| 19 | L-BU/BK | 659 | Cellular Telephone Voice Low Reference (YQ2 w/ UE1) |
| 20-32 | - | - | Not Used |
