Speaker Connector End View - Rear Subwoofer (UX8)

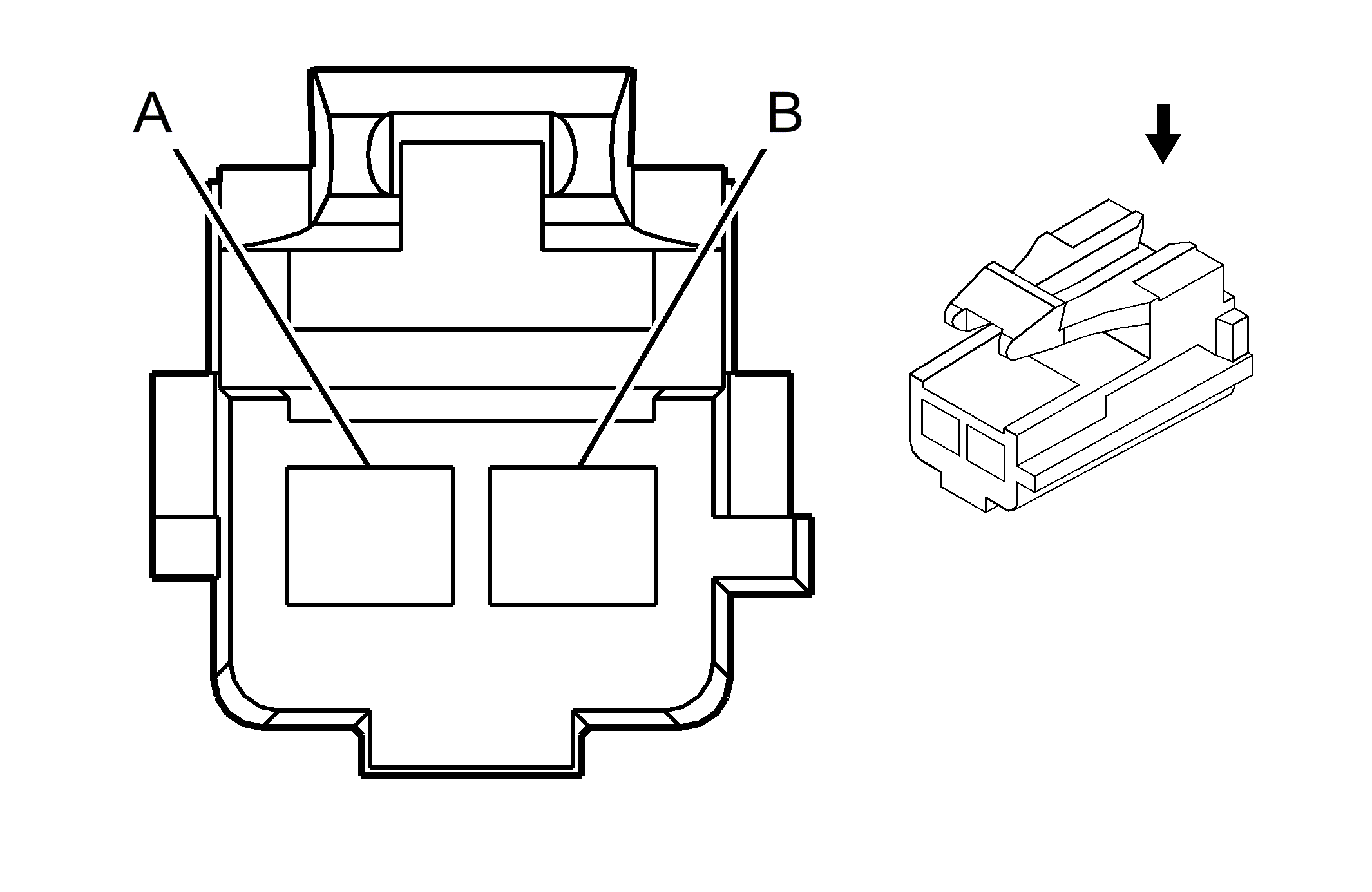

Fig 1: Speaker - Rear Subwoofer (UX8) Connector End View
GM153645Courtesy of GENERAL MOTORS CORP.
Speaker - Rear Subwoofer (UX8) Connector Parts Information

Connector Part Information
  • OEM: 12129081
  • Service: 12129081
  • Description: 2-Way F Metri-Pack 280 Series, Flexlock (BK)
Terminal Part Information
  • Terminal/Tray: 12110842/4
  • Core/Insulation Crimp: A/B
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Speaker - Rear Subwoofer (UX8) Connector End View

Pin Wire Color Circuit No. Function
A L-GN/BK 1794 Rear Subwoofer Speaker (-) (YQ2)
B D-BU/WH 346 Rear Subwoofer Speaker (+) (YQ2)
