Speaker Connector End View - Rear Subwoofer (UY5)

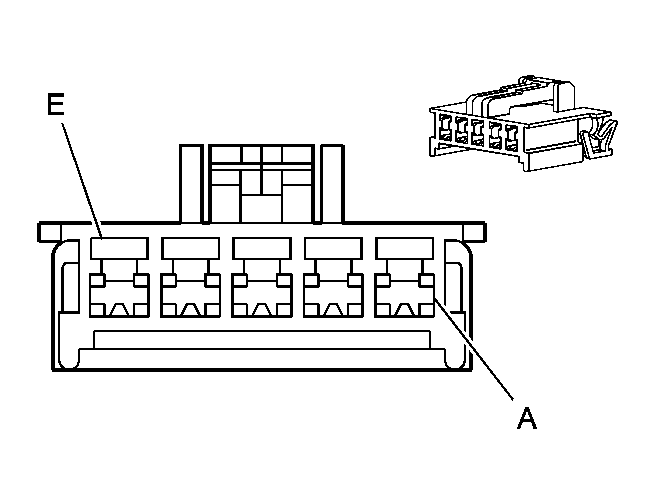

Fig 1: Speaker - Rear Subwoofer (UY5) Connector End View
GM1420766Courtesy of GENERAL MOTORS CORP.
Speaker - Rear Subwoofer (UY5) Connector Parts Information

Connector Part Information
  • OEM: 6098-2180
  • Service: 88988384
  • Description: 5-Way F 90 Type Series (BK)
Terminal Part Information
  • Terminal/Tray: 8240-4422/6
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Speaker - Rear Subwoofer (UY5) Connector End View

Pin Wire Color Circuit No. Function
A RD/WH 2440 Battery Positive Voltage (YQ4/YQ6/YQ7)
B BK/WH 1051 Ground (YQ4/YQ6/YQ7)
C PK/BK 5755 Amplifier Powered Woofer Control (2) (YQ4/YQ6/YQ7)
D L-GN/BK 1794 Rear Subwoofer Speaker (-) (YQ4/YQ6/YQ7)
E D-BU/WH 346 Rear Subwoofer Speaker (+) (YQ4/YQ6/YQ7)
