Telescoping Actuator Connector End View C1

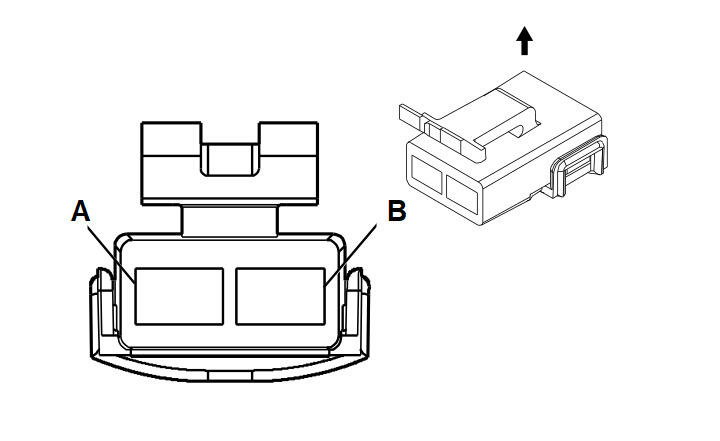

Fig 1: Telescoping Actuator C1 Connector End View
GM130707Courtesy of GENERAL MOTORS CORP.
Telescoping Actuator C1 Connector Parts Information

Connector Part Information
  • OEM: 12020556
  • Service: 12101820
  • Description: 2-Way F Metri-Pack 480 Series (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Telescoping Actuator C1 Connector End View

Pin Wire Color Circuit No. Function
A TN 287 Steering Column Telescope Motor Control - Reverse
B OG 2098 Steering Column Telescope Motor Control - Forward
