Tilt/Telescope Switch Connector End View (3-spoke)

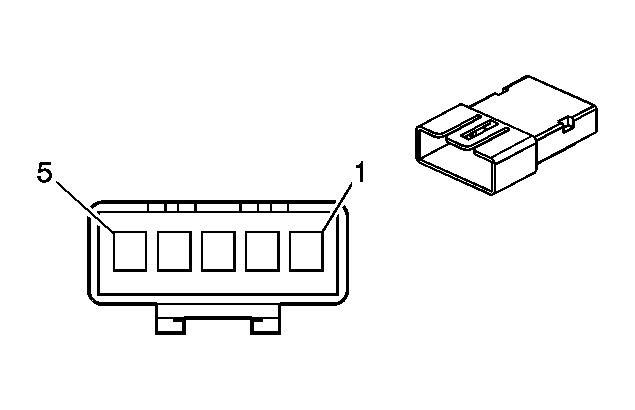

Fig 1: Tilt/Telescope Switch (3-spoke) Connector End View
GM1654915Courtesy of GENERAL MOTORS CORP.
Tilt/Telescope Switch (3-spoke) Connector Parts Information

Connector Part Information
  • OEM: 12185636
  • Service: 12101876
  • Description: 5-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Pins: 1, 2, 3, 4, 5
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Tilt/Telescope Switch (3-spoke) Connector End View

Pin Wire Color Circuit No. Function
1 YE 2097 Steering Column Tilt and Telescope Down Switch Signal
2 OG 2095 Steering Column Tilt and Telescope Rearward Switch Signal
3 PU 2094 Steering Column Tilt and Telescope Forward Switch Signal
4 RD 1640 Battery Positive Voltage
5 GY 2096 Steering Column Tilt and Telescope Up Switch Signal
