Tilt/Telescope Switch Connector End View (4-spoke)

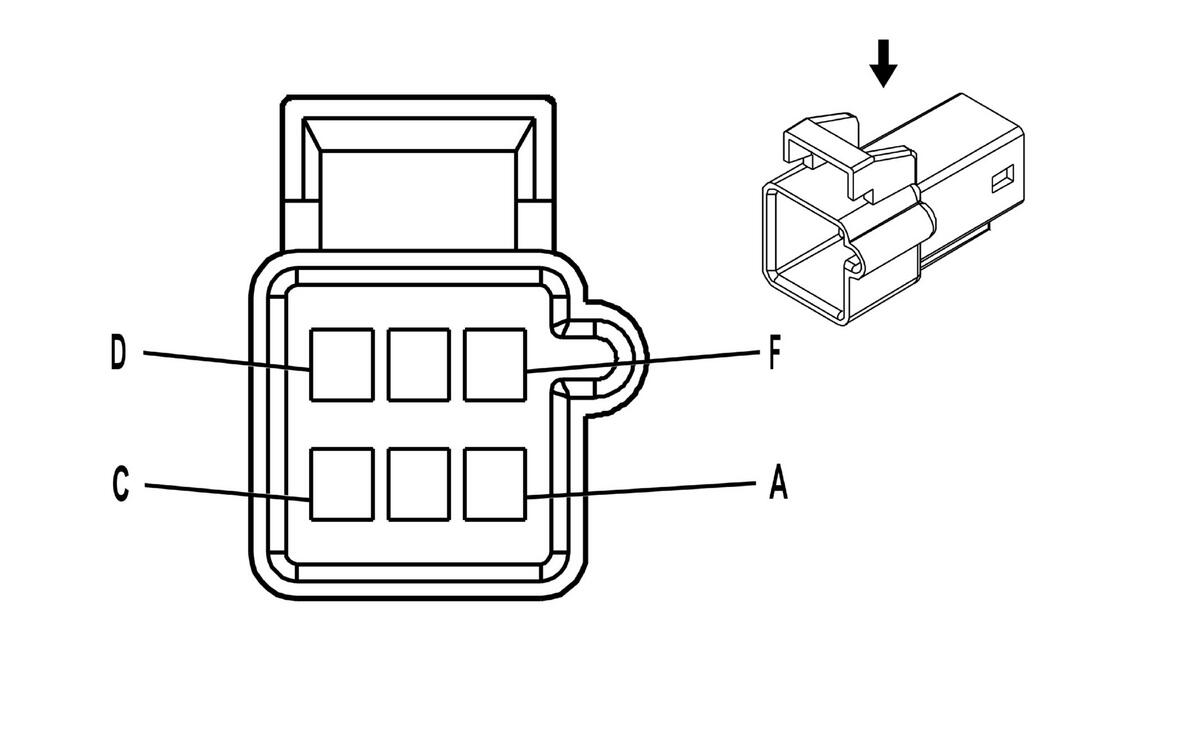

Fig 1: Tilt/Telescope Switch (4-spoke) Connector End View
GM40425Courtesy of GENERAL MOTORS CORP.
Tilt/Telescope Switch (4-spoke) Connector Parts Information

Connector Part Information
  • OEM: 12064763
  • Service: 12101876
  • Description: 6-Way M Metri-Pack 150 Series (GY)
Terminal Part Information
  • Pins: A, B, C, D, F
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Tilt/Telescope Switch (4-spoke) Connector End View

Pin Wire Color Circuit No. Function
A GY 2096 Steering Column Tilt and Telescope Up Switch Signal
B YE 2097 Steering Column Tilt and Telescope Down Switch Signal
C OG 2095 Steering Column Tilt and Telescope Rearward Switch Signal
D PU 2094 Steering Column Tilt and Telescope Forward Switch Signal
E - - Not Used
F RD 1640 Battery Positive Voltage
