Suspension Position Sensor Connector End View - LR
Suspension Position Sensor - LR Connector Parts Information
Connector Part Information
|
Terminal Part Information
|

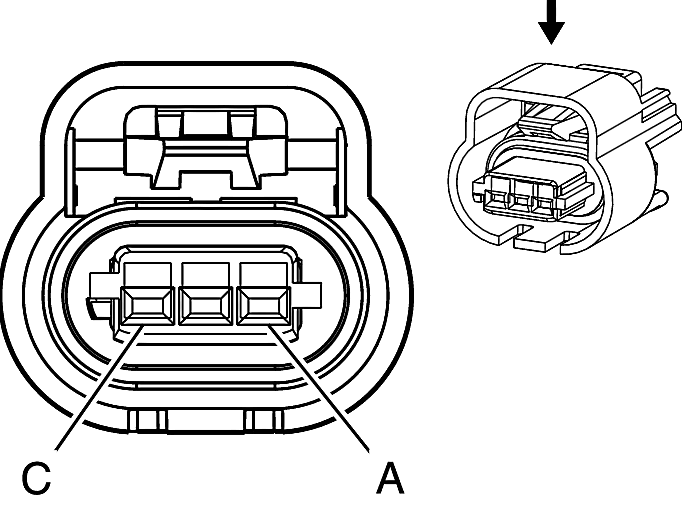

Suspension Position Sensor - LR Connector End View
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | OG/BK | 1208 | Left Rear Strut Position Sensor Voltage Reference (F55) |
| OG/BK | 1208 | Left Rear Strut Position Sensor Voltage Reference (TT7/TT8 w/o F55) | |
| B | L-GN/WH | 1210 | Left Rear Strut Position Sensor Signal (F55) |
| L-GN/WH | 1210 | Left Rear Strut Position Sensor Signal (TT7/TT8 w/o F55) | |
| C | L-GN/BK | 1209 | Left Rear Strut Position Sensor Low Reference (F55) |
| L-GN/BK | 1209 | Left Rear Strut Position Sensor Low Reference (TT7/TT8 w/o F55) |
