Starter Solenoid Connector End View

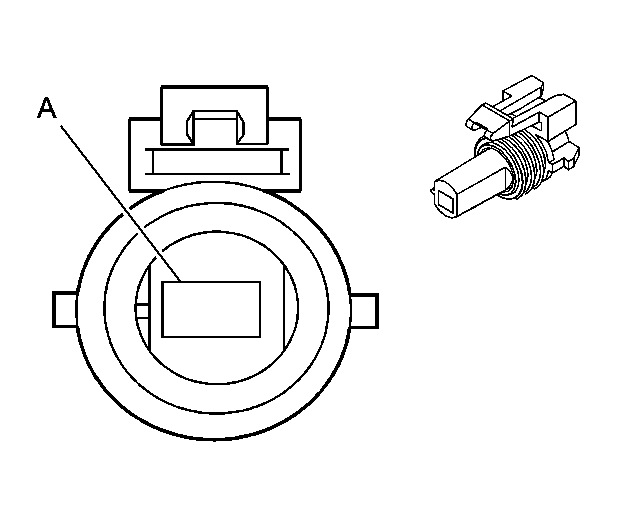

Fig 1: Starter Solenoid Connector End View
GM439508Courtesy of GENERAL MOTORS CORP.
Starter Solenoid Connector Parts Information

Connector Part Information
  • OEM: 12089916
  • Service: 12101763
  • Description: 1-Way F Sealed (GY)
Terminal Part Information
  • Terminal/Tray: 12176387/3
  • Core/Insulation Crimp: F/5
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
Starter Solenoid Connector End View

Pin Wire Color Circuit No. Function
A PU 6 Starter Solenoid Crank Voltage
