Inclination Sensor Connector End View (w/UA2)

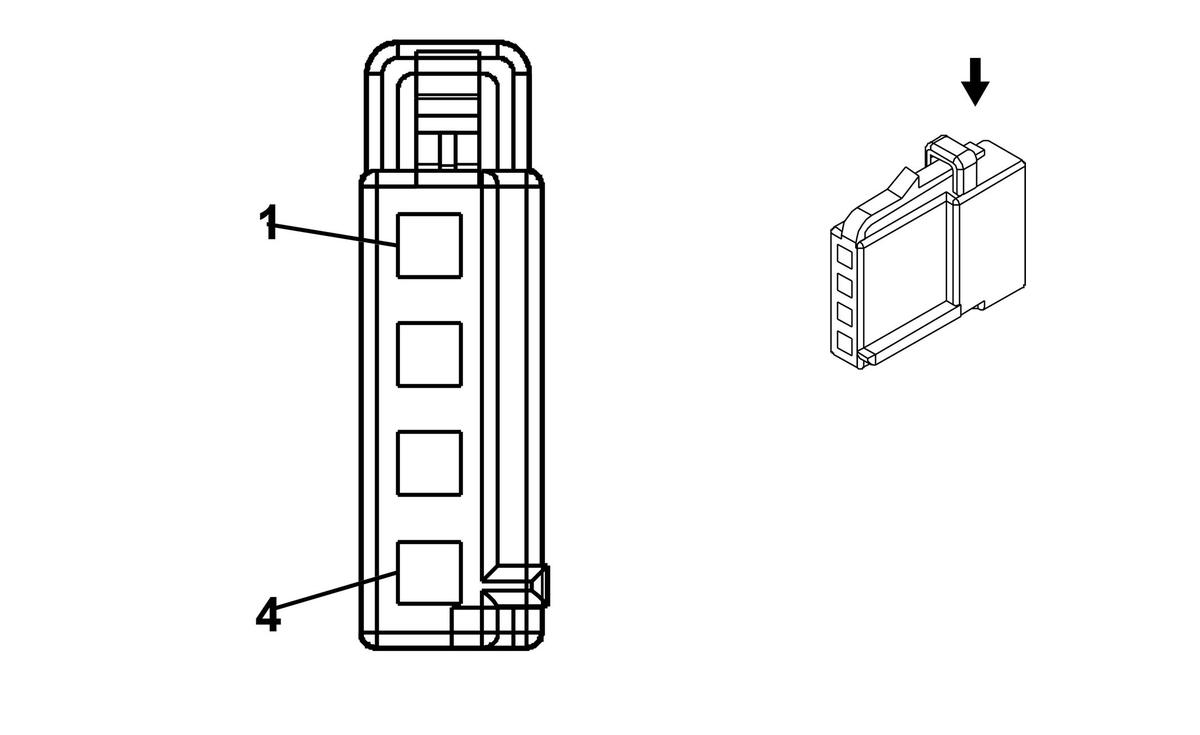

Fig 1: Inclination Sensor (w/UA2) Connector End View
GM894390Courtesy of GENERAL MOTORS CORP.
Inclination Sensor (w/UA2) Connector Parts Information

Connector Part Information
  • OEM: 15324229
  • Service: 15306167
  • Description: 4-Way F Timer Micro 1 (BK)
Terminal Part Information
  • Pins: 1, 3, 4
  • Terminal/Tray: 962943-5/16
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)
Inclination Sensor (w/UA2) Connector End View

Pin Wire Color Circuit No. Function
1 RD/WH 3940 Battery Positive Voltage
2 - - Not Used
3 GY 112 Inclination Sensor Signal
4 YE 5058 Intrusion Sensor Armed Signal
