Intrusion Sensor Connector End View (w/UA2)

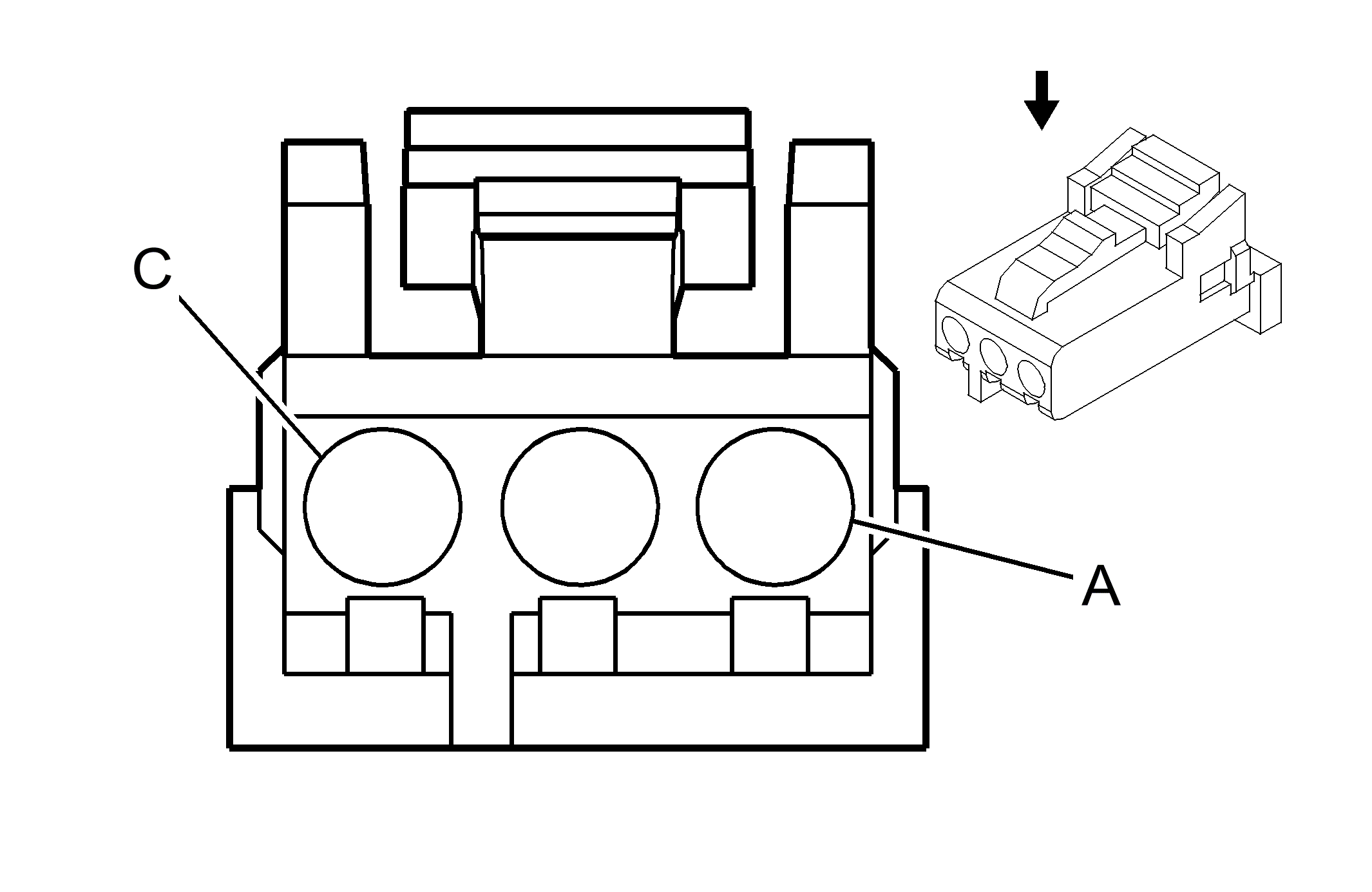

Fig 1: Intrusion Sensor (w/UA2) Connector End View
GM684911Courtesy of GENERAL MOTORS CORP.
Intrusion Sensor (w/UA2) Connector Parts Information

Connector Part Information
  • OEM: 15326747
  • Service: 15306385
  • Description: 3-Way F Micro-Pack 64 Series (BK)
Terminal Part Information
  • Terminal/Tray: 12177007/19
  • Core/Insulation Crimp: E/2
  • Release Tool/Test Probe: 12180559-1/J-35616-64B (L-BU)
Intrusion Sensor (w/UA2) Connector End View

Pin Wire Color Circuit No. Function
A RD/WH 3940 Battery Positive Voltage
B PU 5059 Intrusion Sensor Alarm on Signal
C YE 5058 Intrusion Sensor Armed Signal
