Theft Deterrent Alarm Siren Connector End View (w/UA2)

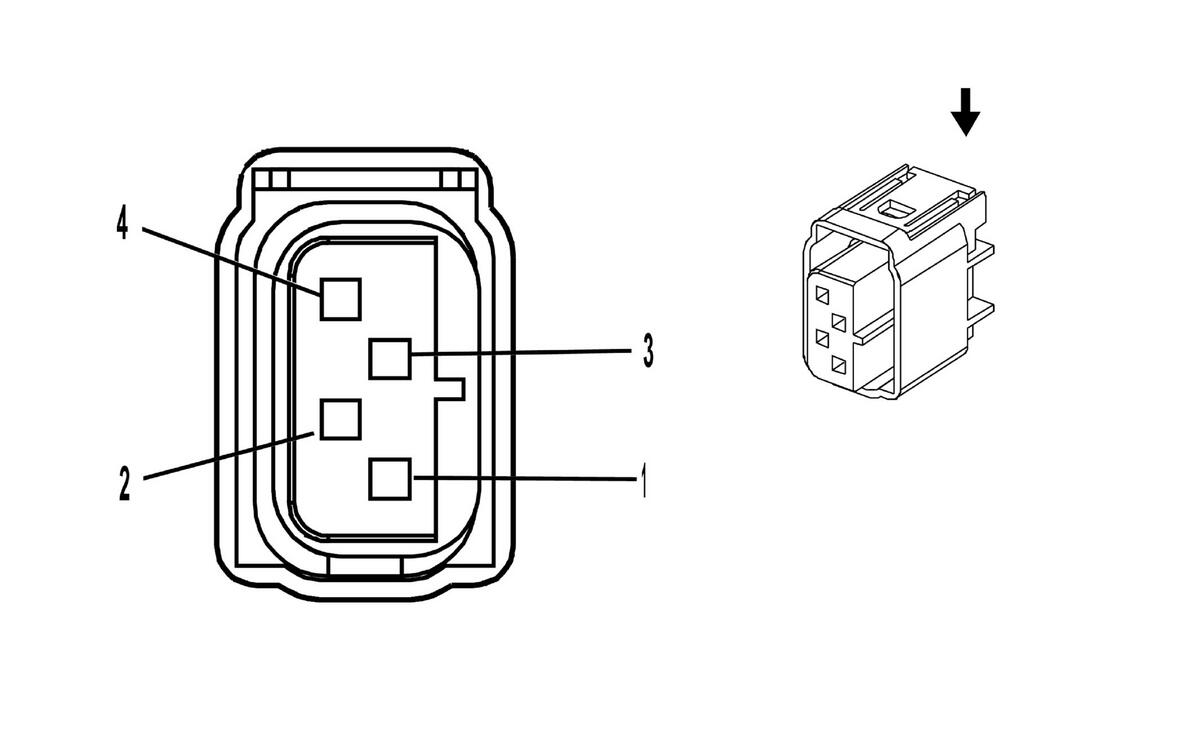

Fig 1: Theft Deterrent Alarm Siren (w/UA2) Connector End View
GM810084Courtesy of GENERAL MOTORS CORP.
Theft Deterrent Alarm Siren (w/UA2) Connector Parts Information

Connector Part Information
  • OEM: 1-967640-1
  • Service: 88953370
  • Description: 4-Way F Amp (BK)
Terminal Part Information
  • Terminal/Tray: 962885-5/15
  • Core/Insulation Crimp: 6/6
  • Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
Theft Deterrent Alarm Siren (w/UA2) Connector End View

Pin Wire Color Circuit No. Function
1 PK 1339 Run/Crank Ignition 1 Voltage
2 OG 3940 Fuse Output Battery Type 3 Fuse
3 TN/BK 5168 Power Sounder Enable Signal
4 BK 1050 Ground
