Air Flow Meter/Sensor: Locations

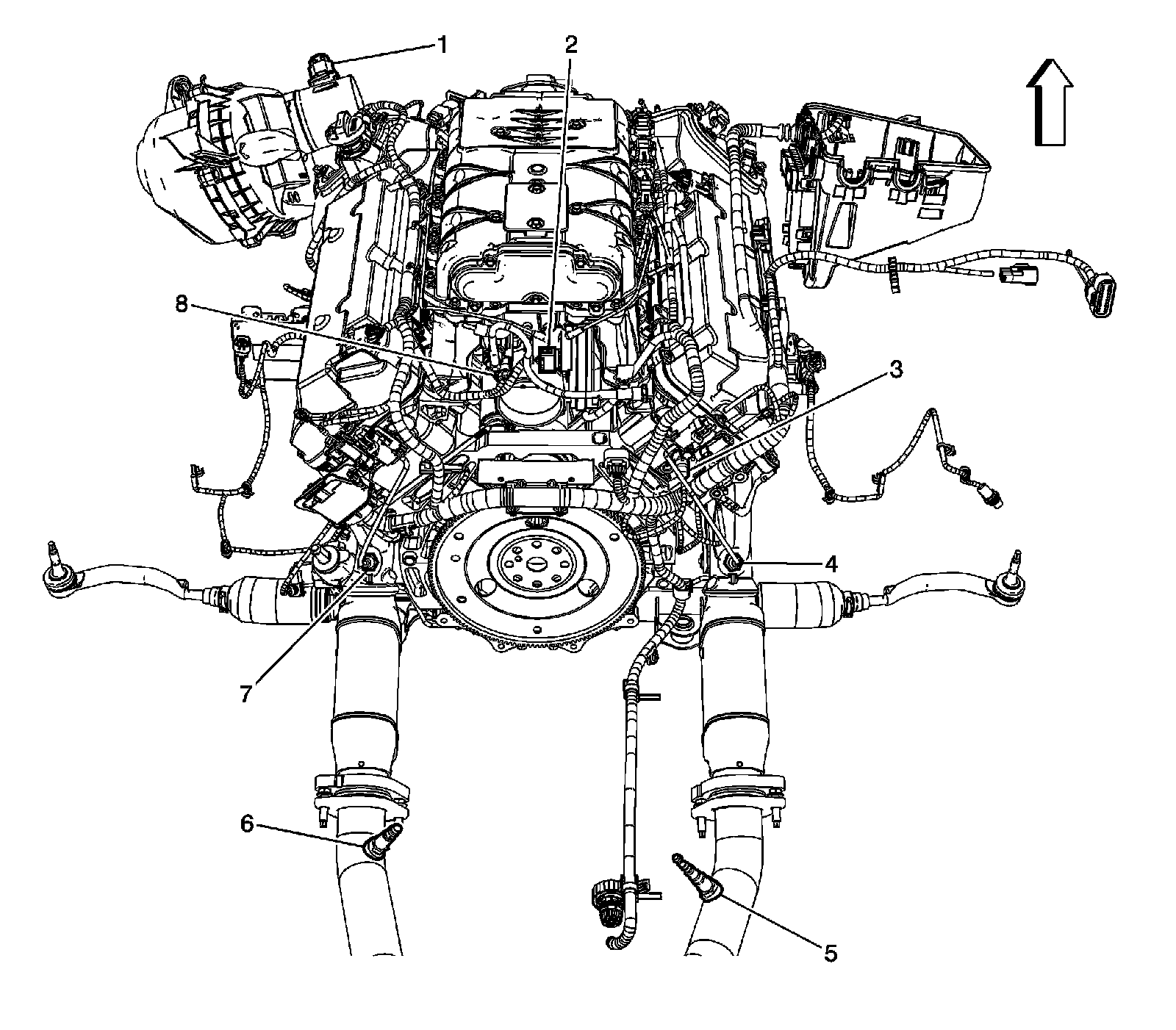

Engine Controls Component Views

Top and Back of the Engine)




1 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
2 - Throttle Body Assembly
3 - Engine Coolant Temperature (ECT) Sensor
4 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
5 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
6 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
7 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
8 - Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
