Intake Manifold
Supercharger

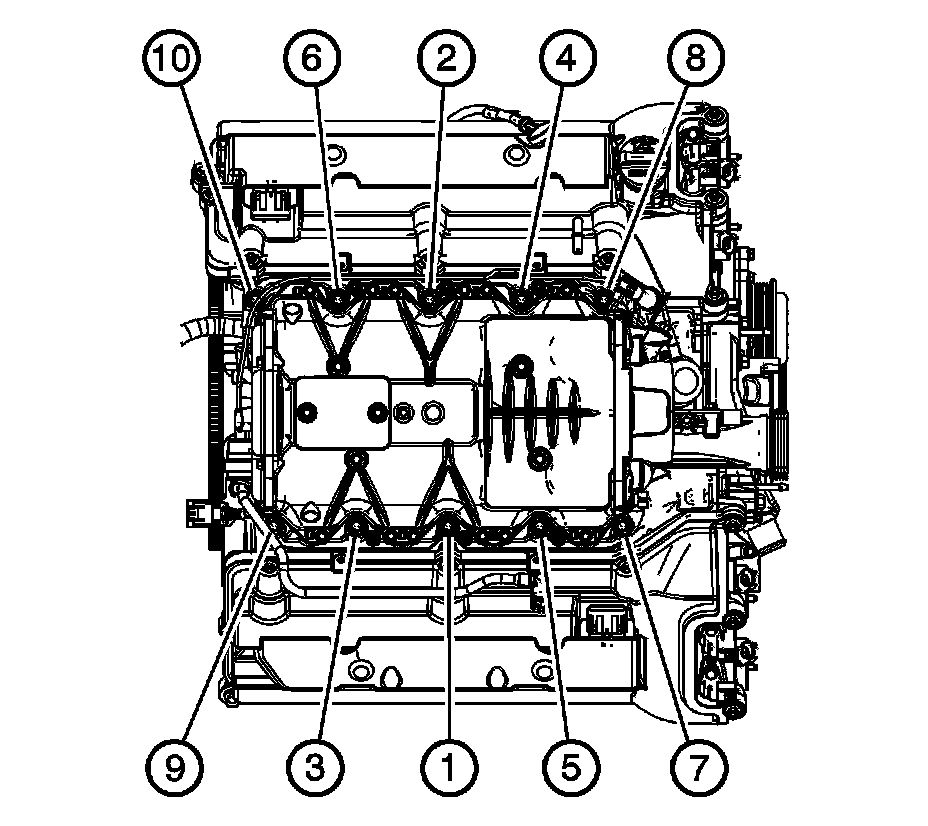

Bolt in Sequence
25 N.m (18 lb ft)
Throttle Body Bolt
10 N.m (89 lb in)
