System Specifications

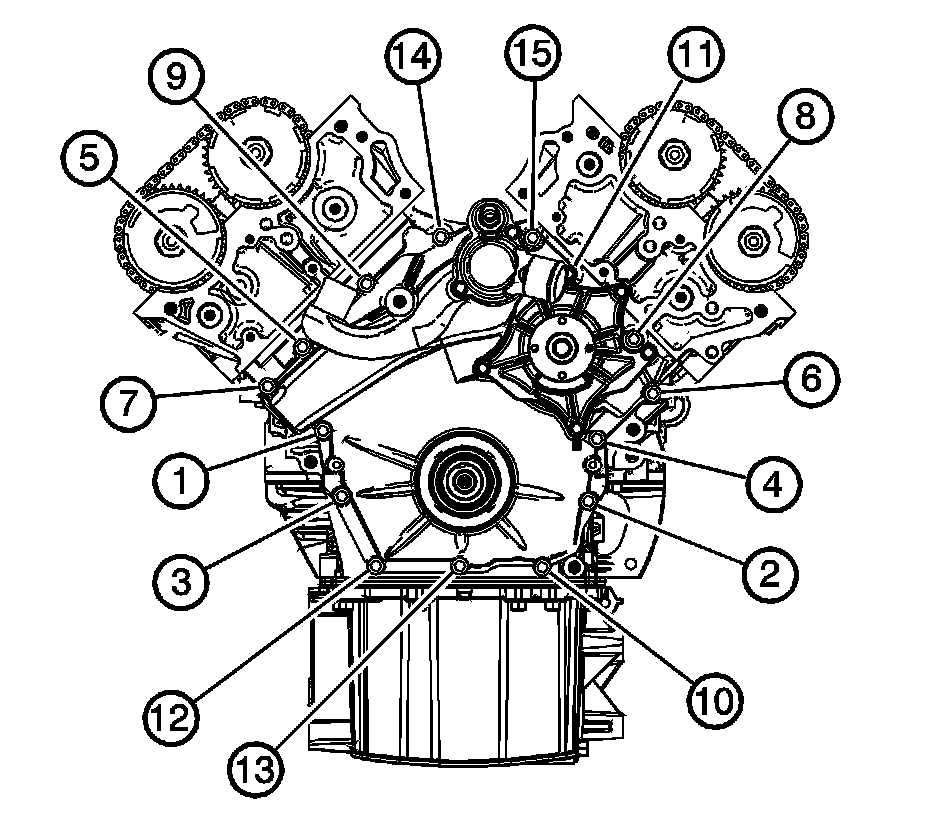

Engine Front Cover Bolt
Bolt 15 N.m (11 lb ft)
Fitting 25 N.m (18 lb ft)

Primary Camshaft Drive Chain)
Tensioner Bolt 25 N.m (18 lb ft)

Secondary Camshaft Drive Chain)
Tensioner Bolt 25 N.m (18 lb ft)

Crankshaft Balancer Bolt
First Pass 100 N.m (74 lb ft)
Final Pass 150 degrees
