Electronic Brake Control Module (EBCM)

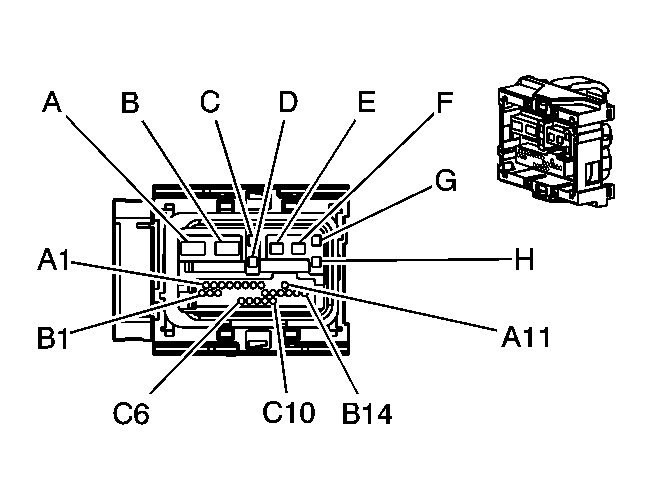

Fig 1: Electronic Brake Control Module (EBCM) Connector End View
GM1455864Courtesy of GENERAL MOTORS CORP.
Electronic Brake Control Module (EBCM) Connector Parts Information

Connector Part Information
  • OEM: 15412357
  • Service: 88988388
  • Description: 36-Way F GT 150, 280 Series Delphi (BK)
Terminal Part Information
  • Pins: A, B
  • Terminal/Tray: 15305232/23
  • Core/Insulation Crimp: B/3
  • Release Tool/Test Probe: J-38125-11A/J-35616-42 (RD)
  • Pins: C, G, H
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: 2/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
  • Pins: E
  • Terminal/Tray: 15392777/23
  • Core/Insulation Crimp: B/5
  • Release Tool/Test Probe: J-38125-553/J-35616-4A (PU)
  • Pins: F
  • Terminal/Tray: 15304719/19
  • Core/Insulation Crimp: 2/5
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: A1, A2, A3, A4, A5, A6, A7, A8, A11, B1, B9, B10, B11, B12, B13, B14, C6, C7, C8, C9, C10
  • Terminal/Tray: 15359541/4
  • Core/Insulation Crimp: M/M
  • Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)
Electronic Brake Control Module (EBCM) Connector Terminal Identification

Pin Wire Color Circuit No. Function
A RD/BK 342 Battery Positive Voltage
B RD/BK 342 Battery Positive Voltage
C BN 2039 Run Ignition 3 Voltage
D - - Not Used
E BK 1150 Ground
F BK 1150 Ground
G GY 1787 Variable Effort Steering Actuator High Effort Control (NV7)
H WH 345 Variable Effort Steering Actuator Low Effort Control (NV7)
A1 YE 873 Left Front Wheel Speed Sensor Low Reference
A2 L-BU 830 Wheel Speed Sensor Signal Left Front
A3 D-GN 872 Wheel Speed Sensor Signal Right Front
A4 TN 833 Wheel Speed Sensor Low Reference Right Front
A5 TN 884 Wheel Speed Sensor Signal Left Rear
A6 OG 885 Wheel Speed Sensor Low Reference Left Rear
A7 BN 882 Wheel Speed Sensor Signal Right Rear
A8 WH 883 Wheel Speed Sensor Low Reference Right Rear
A9-A10 - - Not Used
A11 YE 5727 High Speed GMLAN Serial Data Wake Up
B1 PU/WH 1699 Combined Vehicle Inertial Sensor Lat/Long Rate Signal
B2-B8 - - Not Used
B9 TN 2501 High Speed GMLAN Serial Data (-) (1)
B10 TN 2501 High Speed GMLAN Serial Data (-) (1) (TT7/TT8/K59)
B11 TN/BK 2500 High Speed GMLAN Serial Data (+) (1) (TT7/TT8/K59)
B12 TN/BK 2500 High Speed GMLAN Serial Data (+) (1)
B13 L-GN/BK 1338 Yaw Rate Sensor Signal (2)
B14 GY/BK 1337 Yaw Rate Sensor Volt Reference
C1-C5 - - Not Used
C6 L-BU 1764 Steering Wheel Position Signal B
C7 L-GN 1763 Steering Wheel Position Signal A
C8 D-BU 716 Yaw Rate Sensor Signal (1)
C9 L-BU 715 Lateral Accelerometer Signal
C10 PU 5002 Brake Pressure Modulator Valve
