Front Passenger Door Module (FPDM)

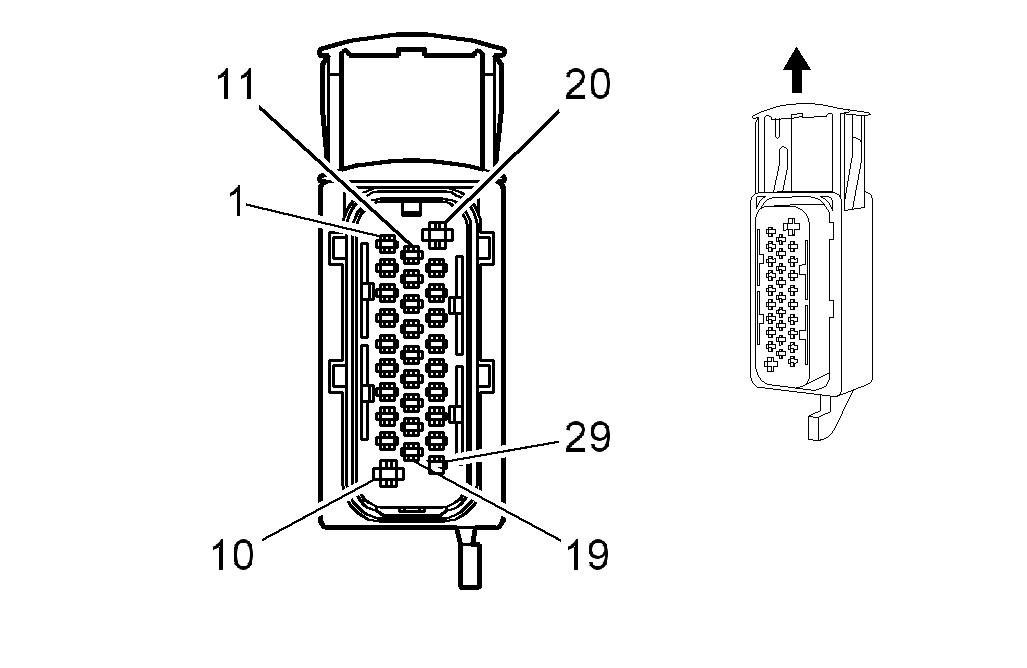

Fig 1: Front Passenger Door Module (FPDM) Connector End View

Courtesy of GENERAL MOTORS CORP.

Front Passenger Door Module (FPDM) Connector Parts Information

Connector Part Information

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 7, 8, 11, 12, 13, 14, 15, 16, 19, 21, 22, 23, 24, 25, 26, 29
Terminal/Tray: 4-969005-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Front Passenger Door Module (FPDM) Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	L-BU	5023	Passenger Folding Mirror Motor Retract Control (Europe)
2	OR	267	Heated Mirror Element Supply Voltage
3	YE	5004	Passenger Folding Mirror Motor Extend Control (Europe)
4	GY	1359	LCD Backlighting Lamp Control
5	L-BU/BK	785	Passenger Mirror Horizontal Position Sensor Signal
6	BN	787	Passenger Mirror Vertical Position Sensor Signal
7	TN	1300	Power Window Motor Front Passenger Up Signal
8	GY	1136	Power Window Motor Front Passenger Down Signal
9	-	-	Not Used
10	BK	1550	Ground
11	GY	90	Passenger Mirror Motor Left Control
12	L-GN	89	Passenger Mirror Motor Down Control
13	BN/WH	1498	Passenger Mirror Motor Up Control
14	L-BU	244	Passenger Door Lock Switch Lock Control
15	D-BU	245	Passenger Door Lock Switch Unlock Control
16	PU	2765	Power Window Switch Right Front Express Signal
17-18	-	-	Not Used
19	TN	1047	PDM Class 2 Serial Data
20	RD/WH	1440	Battery Positive Voltage
21	OR/WH	881	Passenger Mirror Motor Right Control
22	GY	788	5-Volt Reference
23	D-BU	5117	Courtesy Lamp Supply Voltage
24	PU/WH	5967	Passenger Door Lock Indicator Voltage
25	PK	5879	Right Front Exterior Door Handle Switch Signal
26	GY	5878	Right Front Interior Door Handle Switch Signal
27-28	-	-	Not Used
29	TN	782	Memory Seat/Mirror Sensor Low Reference
