Fan Control Module

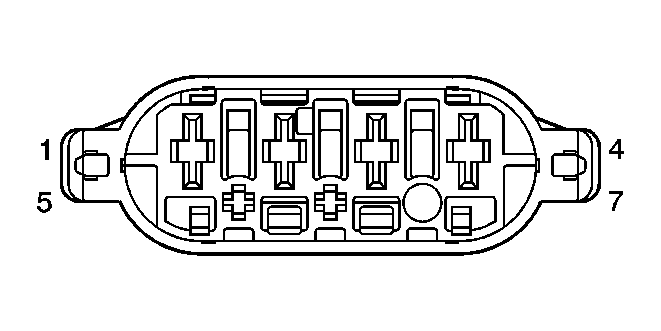

Fig 1: Fan Control Module Connector End View
GM1593361Courtesy of GENERAL MOTORS CORP.
Fan Control Module Connector Parts Information

Connector Part Information
  • OEM: 9440194
  • Service: See Catalog
  • Description: 7-Way F (BK)
Terminal Part Information
  • Pins: 1, 2, 3, 4, 6
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Fan Control Module Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 BK - Cooling Fan Low Reference
2 BK 1250 Ground
3 RD 342 Battery Positive Voltage
4 RD - Cooling Fan Motor Supply Voltage
5 - - Not Used
6 RD/OG 335 Cooling Fan Speed Control
7 - - Not Used
