Installation Procedure

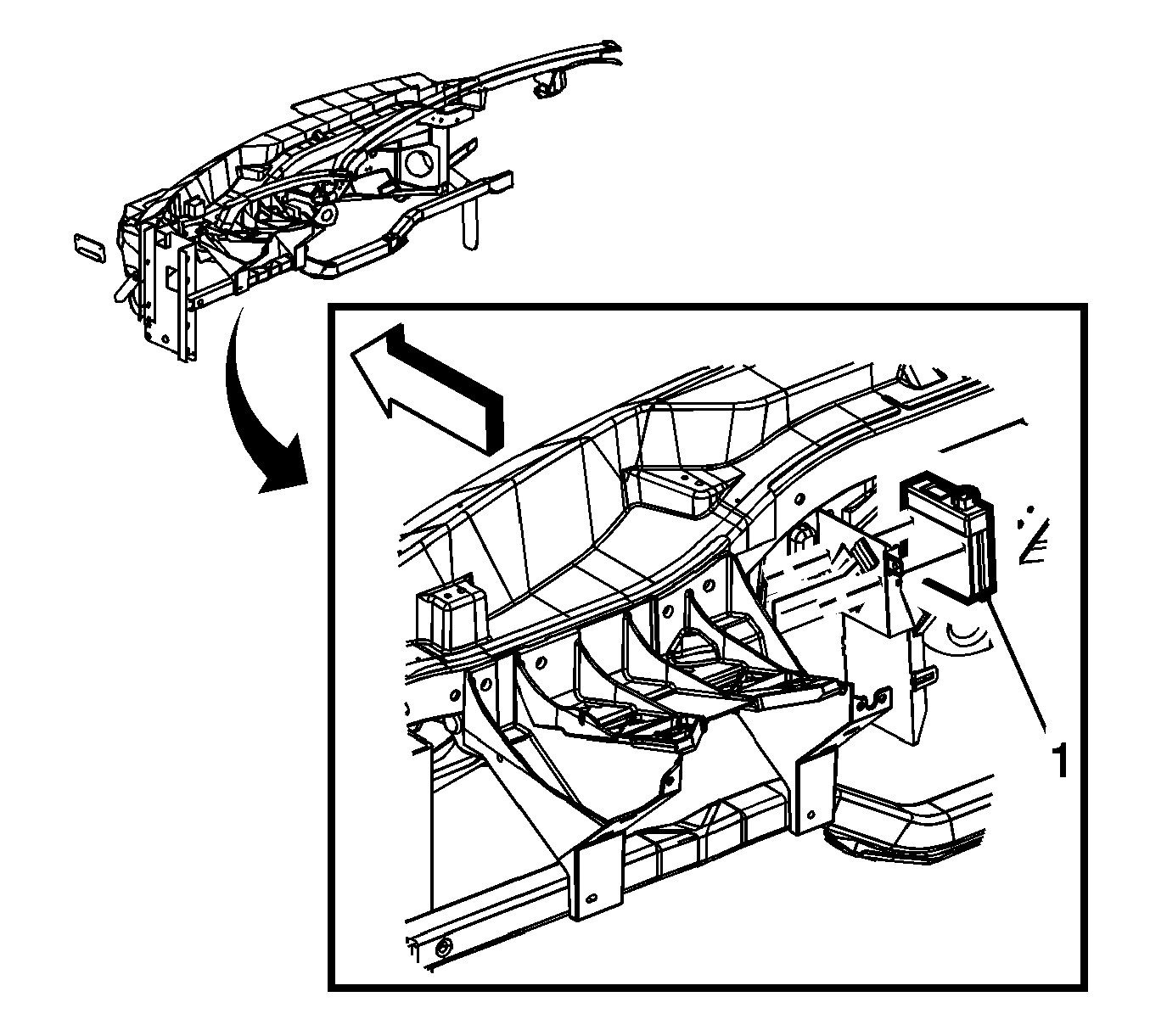

    Fig 1: Identifying The Lock Module In The I/P Carrier
    GM1400454Courtesy of GENERAL MOTORS CORP.
  1. Install the control module to the retaining bracket on the steering column.
  2. Connect the electrical connector to the lock module.

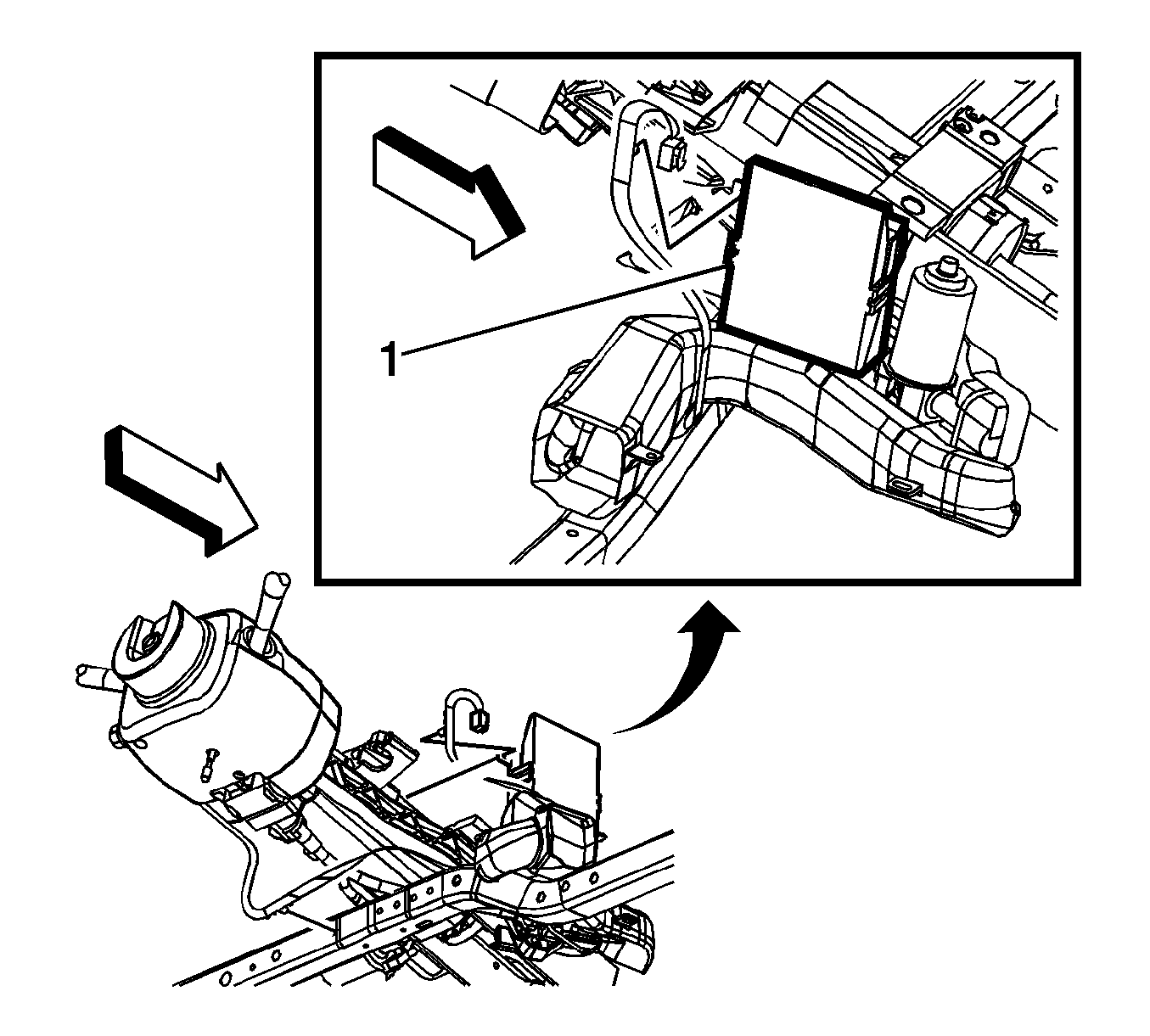

    3. Fig 2: Identifying Steering Column Electronic Lock Harness
    GM1400455Courtesy of GENERAL MOTORS CORP.
  3. Install the I/P carrier. Refer to Instrument Panel Carrier Replacement .
  4. Enable the SIR system. Refer to SIR Disabling and Enabling .
  5. Program the lock control module. Refer to Control Module References for programming and setup information.
