Installation Procedure

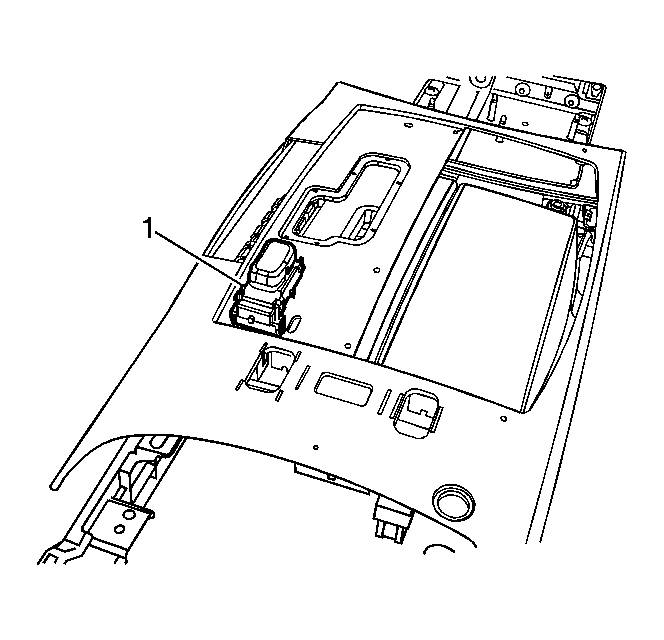

    Fig 1: View Of Traction Control Switch
    GM1274759Courtesy of GENERAL MOTORS CORP.
  1. Insert the traction control switch into the center console trim plate (1).
  2. Connect the harness electrical connector to the traction control switch.
  3. Install the center console trim plate. Refer to Console Trim Plate Replacement .
