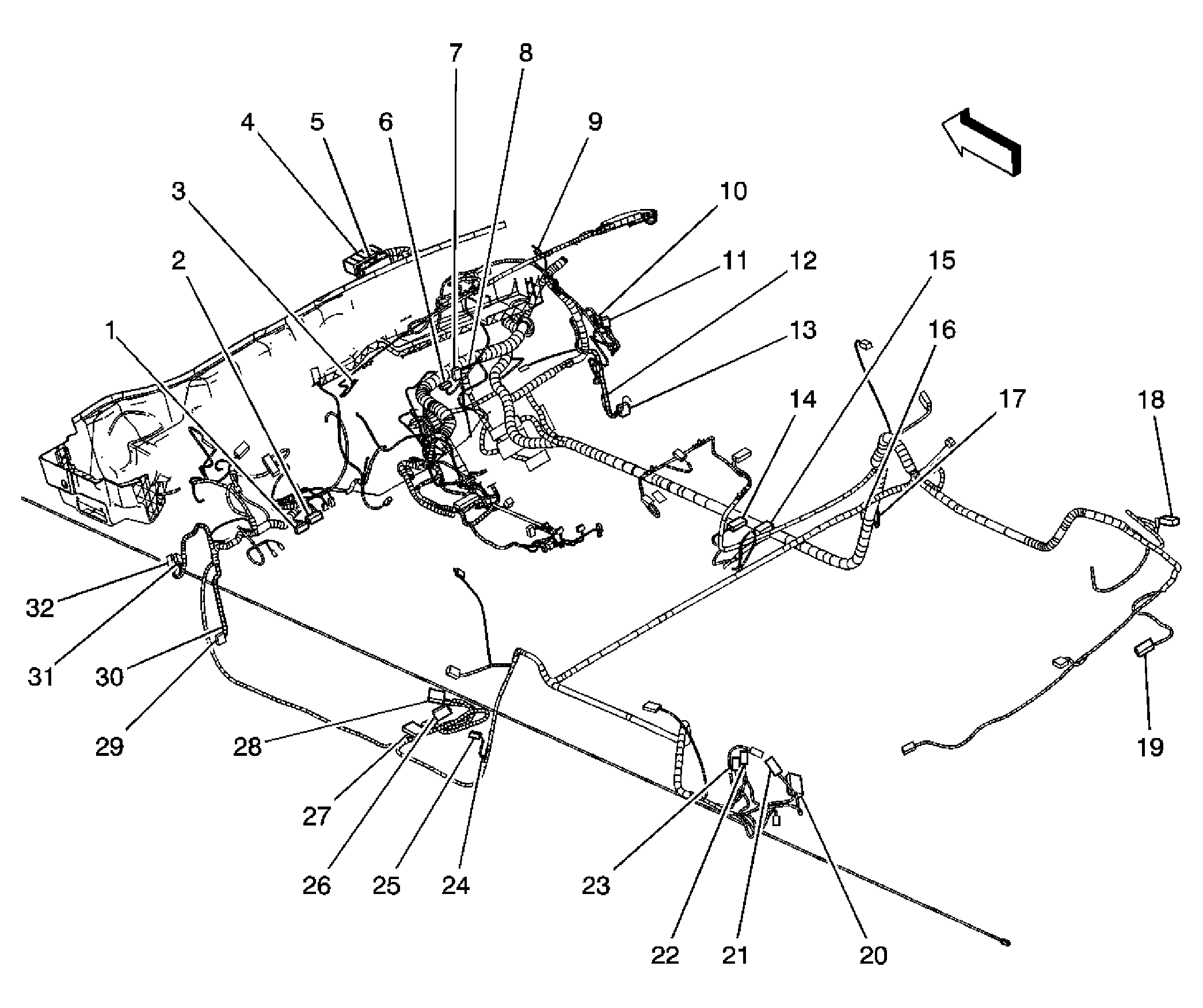

| 1 |
Dimmer/Head Up Display (HUD) Switch |
| 2 |
Turn Signal/Multifunction Switch |
| 3 |
Inflatable Restraint Steering Wheel Module |
| 4 |
Instrument Panel Cluster (IPC) |
| 5 |
Air Temperature Sensor - Inside |
| 6 |
Windshield Wiper/Washer Switch |
| 7 |
Driver Information Center (DIC) Switch |
| 8 |
Hazard Switch |
| 9 |
CD Changer |
| 10 |
Valet Switch |
| 11 |
Inflatable Restraint I/P Module |
| 12 |
Inflatable Restraint I/P Module Disable Switch |
| 13 |
I/P Compartment Lamp |
| 14 |
Radio |
| 15 |
HVAC Control Module |
| 16 |
Cigar Lighter |
| 17 |
Courtesy Lamp Switch - Console |
| 18 |
Folding Top Switch |
| 19 |
Inflatable Restraint I/P Module Disable Switch LED |
| 20 |
Traction Control Switch |
| 21 |
Auxiliary Power Outlet |
| 22 |
Courtesy Lamp - Console |
| 23 |
Automatic Transmission Shift Lever |
| 24 |
Ignition Mode Switch |
| 25 |
Steering Wheel Controls - Right |
| 26 |
Horn Switch |
| 27 |
Data Link Connector (DLC) |
| 28 |
Steering Wheel Controls - Left |
