Installation Procedure

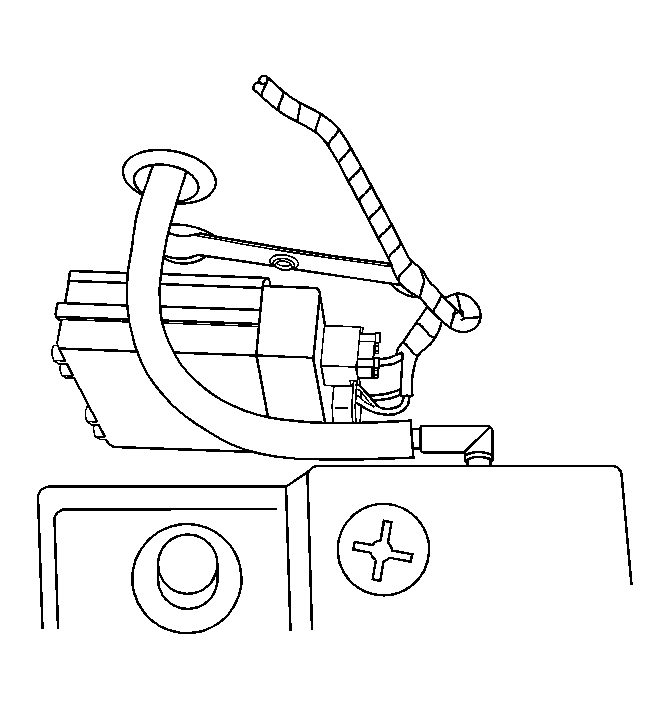

    Fig 1: Identifying Exhaust Tail Pipe Flow Valve Control Module
    GM1688226Courtesy of GENERAL MOTORS CORP.
  1. Install the exhaust tail pipe flow valve control module.
  2. Attach the exhaust tail pipe flow valve control module using a new piece of two-sided tape.

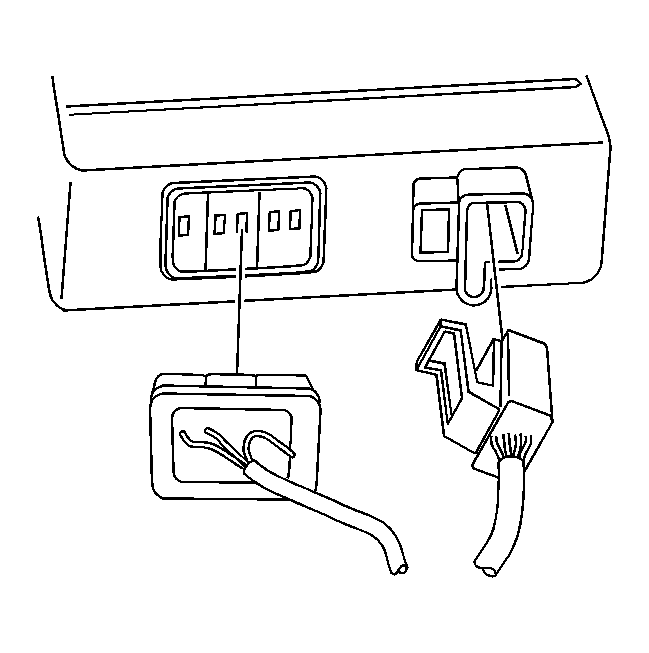

    3. Fig 2: Identifying Exhaust Tail Pipe Flow Valve Control Module Connector
    GM1688227Courtesy of GENERAL MOTORS CORP.
  3. Connect both electrical connectors.
  4. Install the battery.
  5. Refer to Control Module References for programming and setup information.
