Audio/Video Disc Player Adapter Replacement
WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

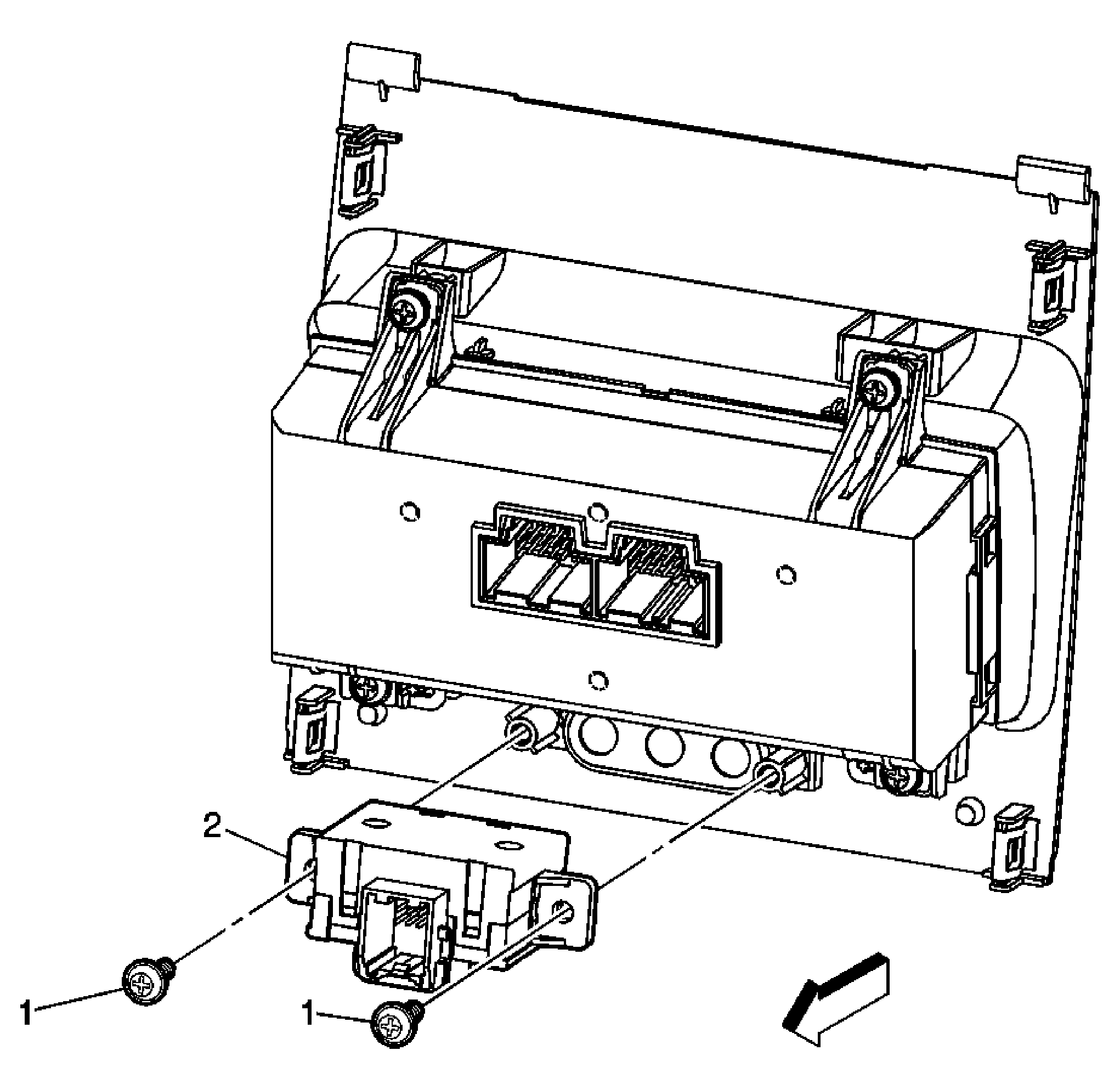

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the video disc player display bezel. Refer to Video Disc Player Display Bezel Replacement . |
|
| 1 | Audio/Video Disc Player Adapter Assembly Screw (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Audio/Video Disc Player Adapter Assembly |
