Memory Positioning Module: Service and Repair

MEMORY SEAT CONTROL MODULE REPLACEMENT

REMOVAL PROCEDURE
1. Remove the seat.

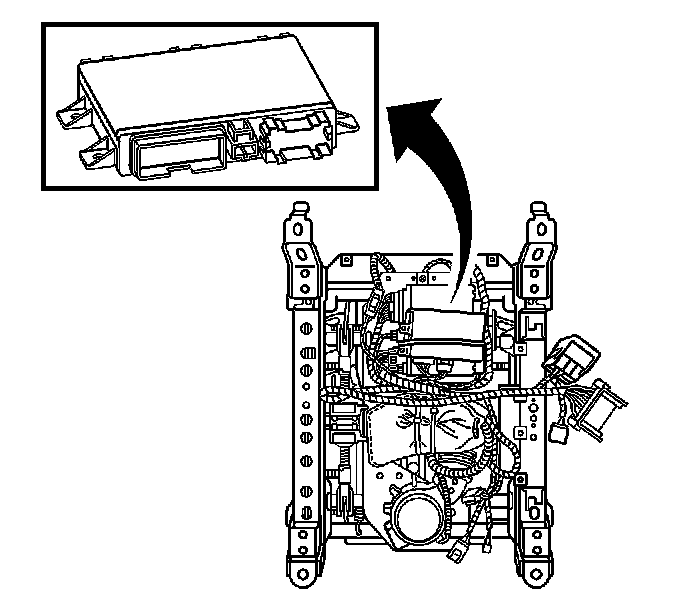

2. Remove the memory seat control module from the seat track assembly by cutting the tie straps.
3. Disconnect the harness connectors.

INSTALLATION PROCEDURE




1. Connect harness connectors to the memory seat control module.
2. Install the memory seat control module to the seat track assembly using the tie straps.
3. Install the seat.
4. Calibrate the seat.
5. Refer to Control Module References for programming and setup information. Programming and Relearning
