Body Control Module (BCM) C1

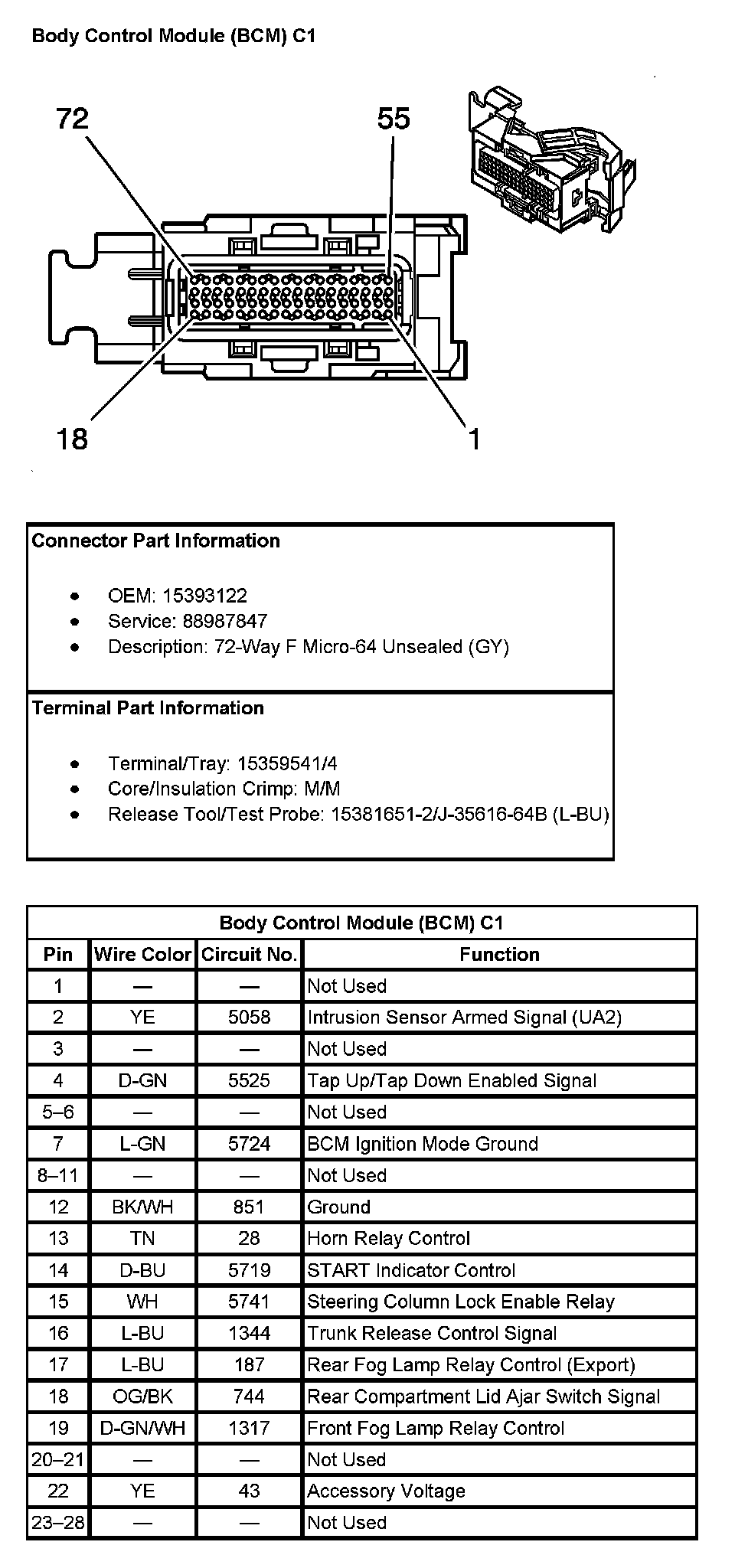

Body Control Module (BCM) C1 (Pin 1 To 28):

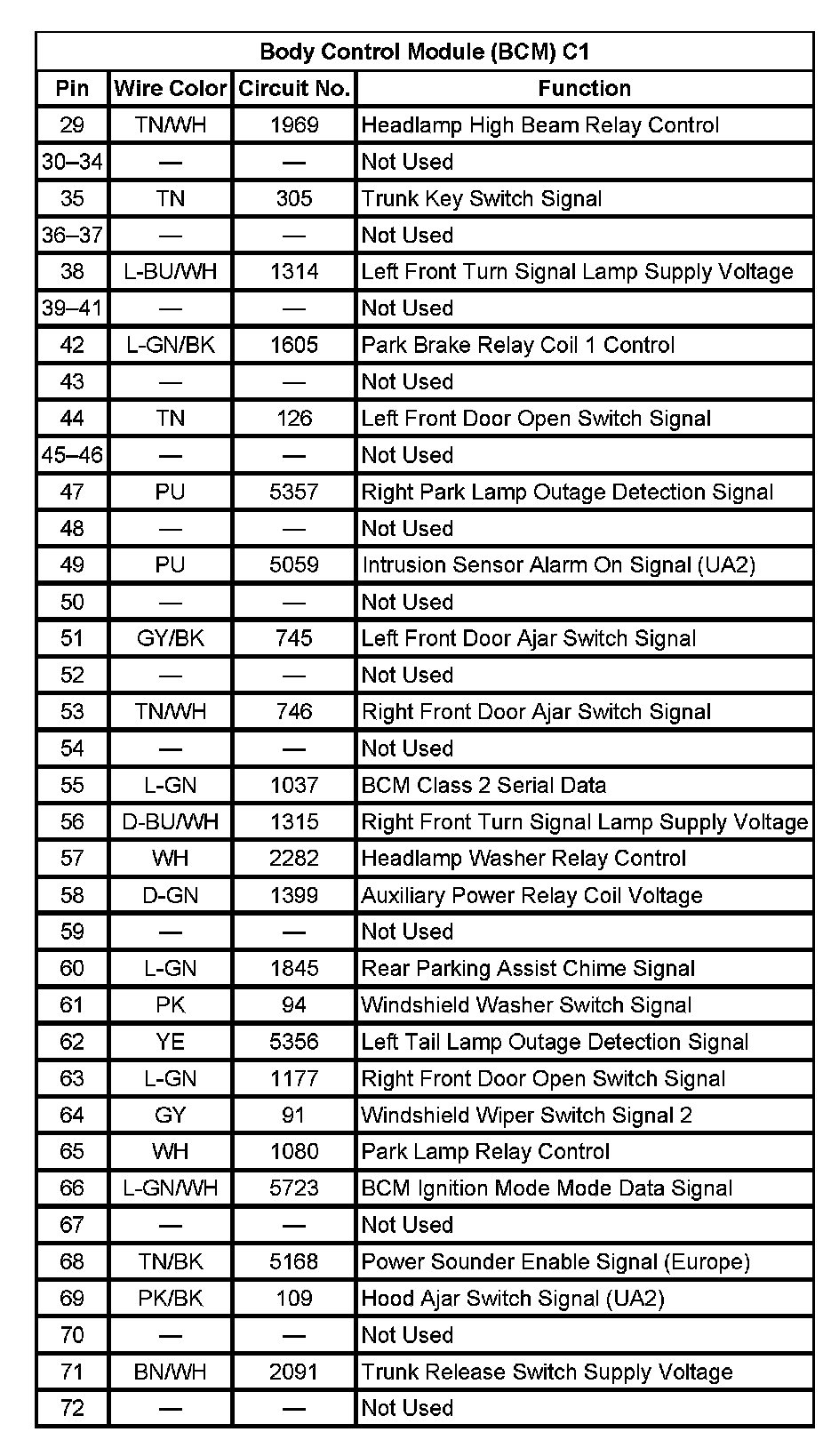

Body Control Module (BCM) C1 (Pin 29 To 72):
