Connector Views
Engine Control Module Connector End Views

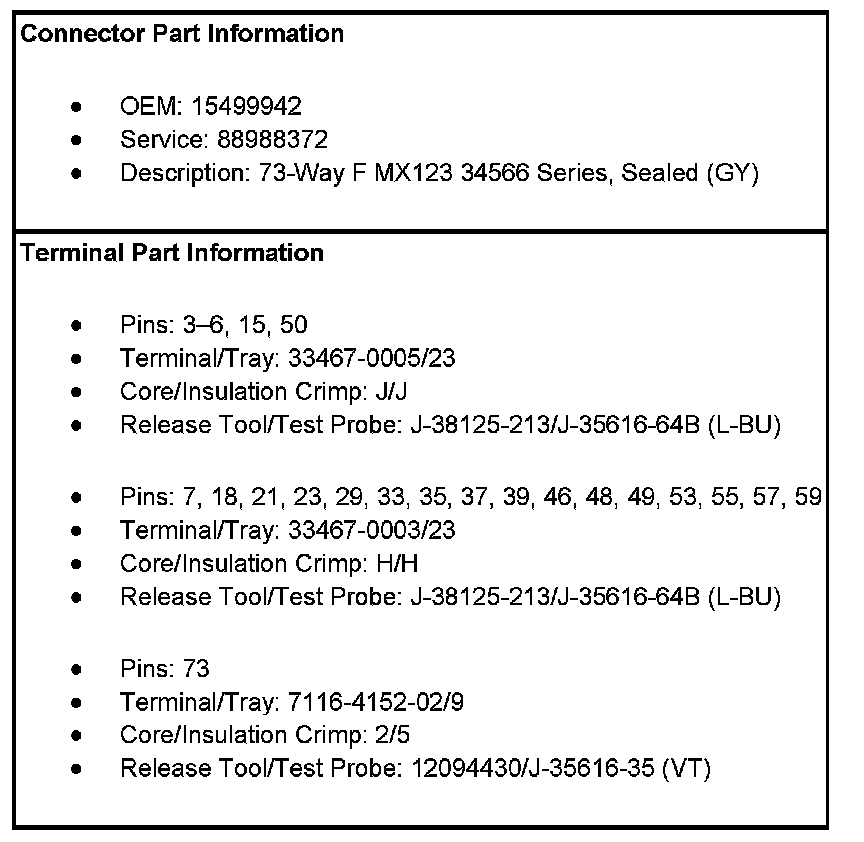

Engine Control Module (ECM) - C1

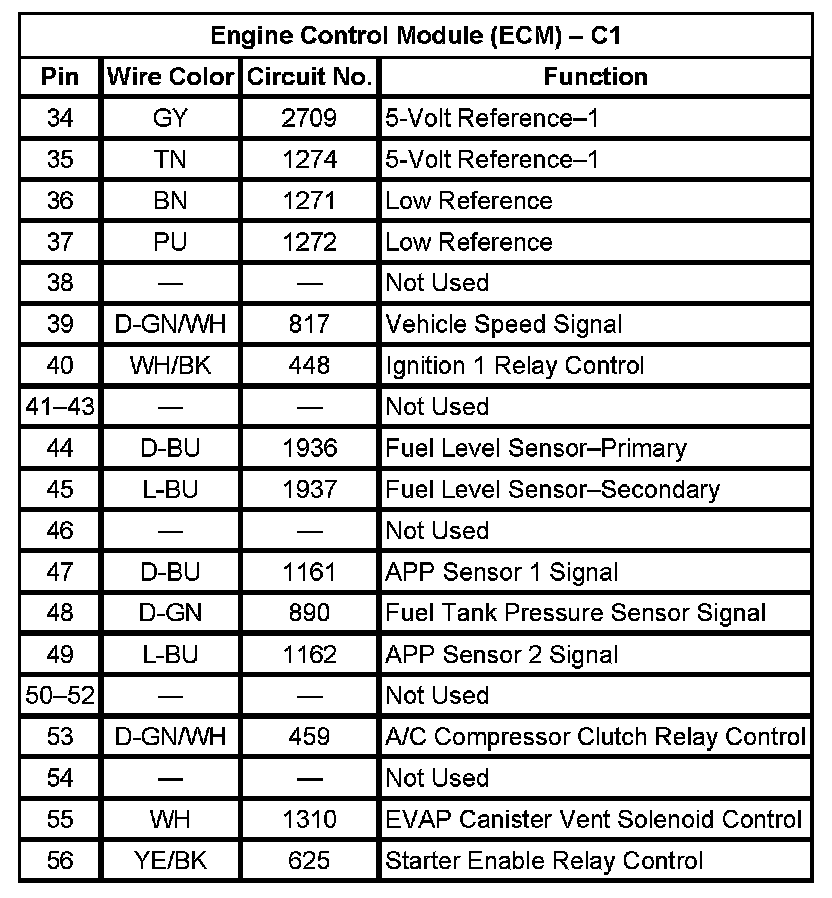

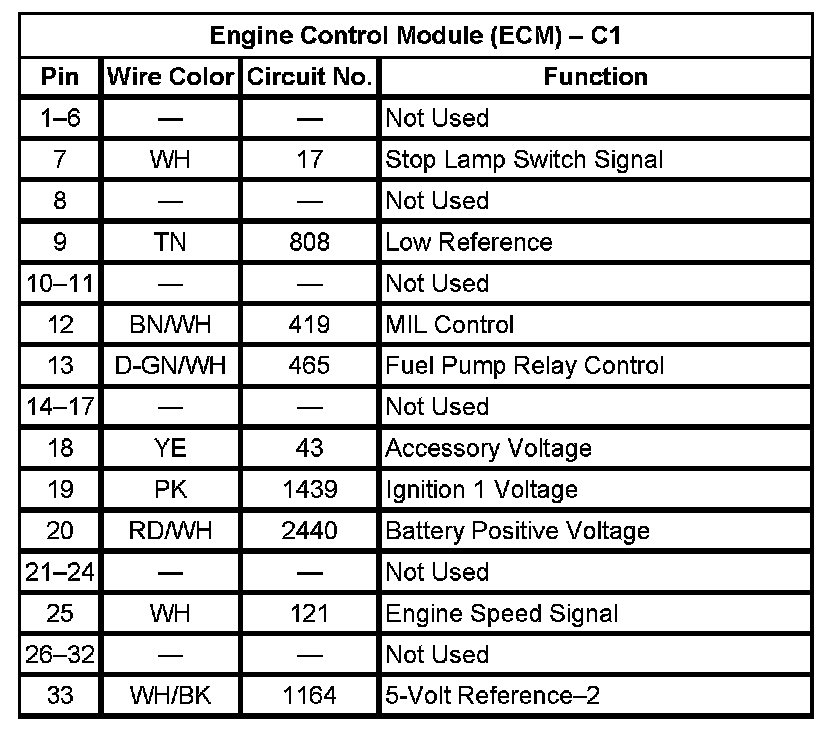

Engine Control Module (ECM) - C1 (Pin 1 To 33):
Engine Control Module (ECM) - C1 (Pin 34 To 56):

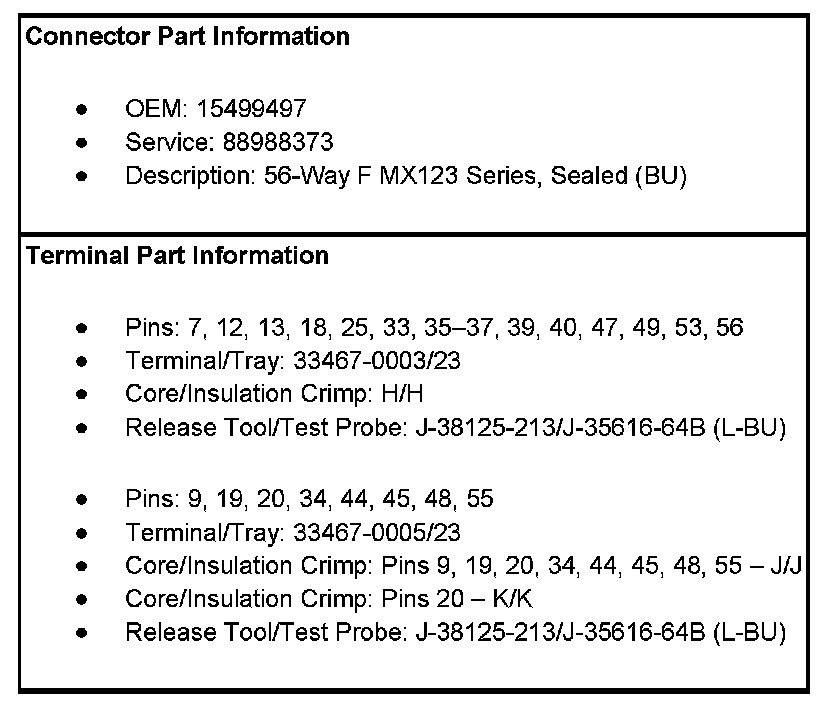

Engine Control Module (ECM) - C2

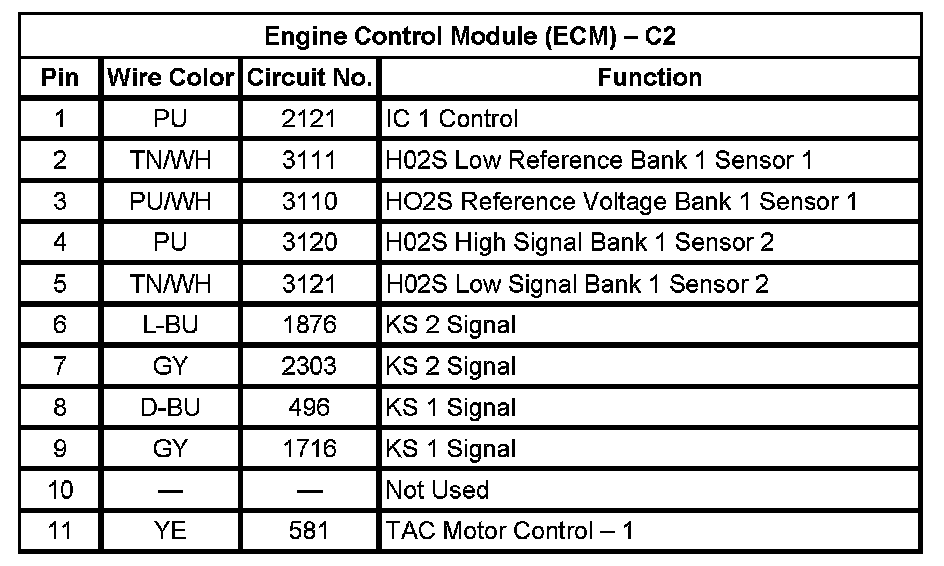

Engine Control Module (ECM) - C2 (Pin 1 To 11):

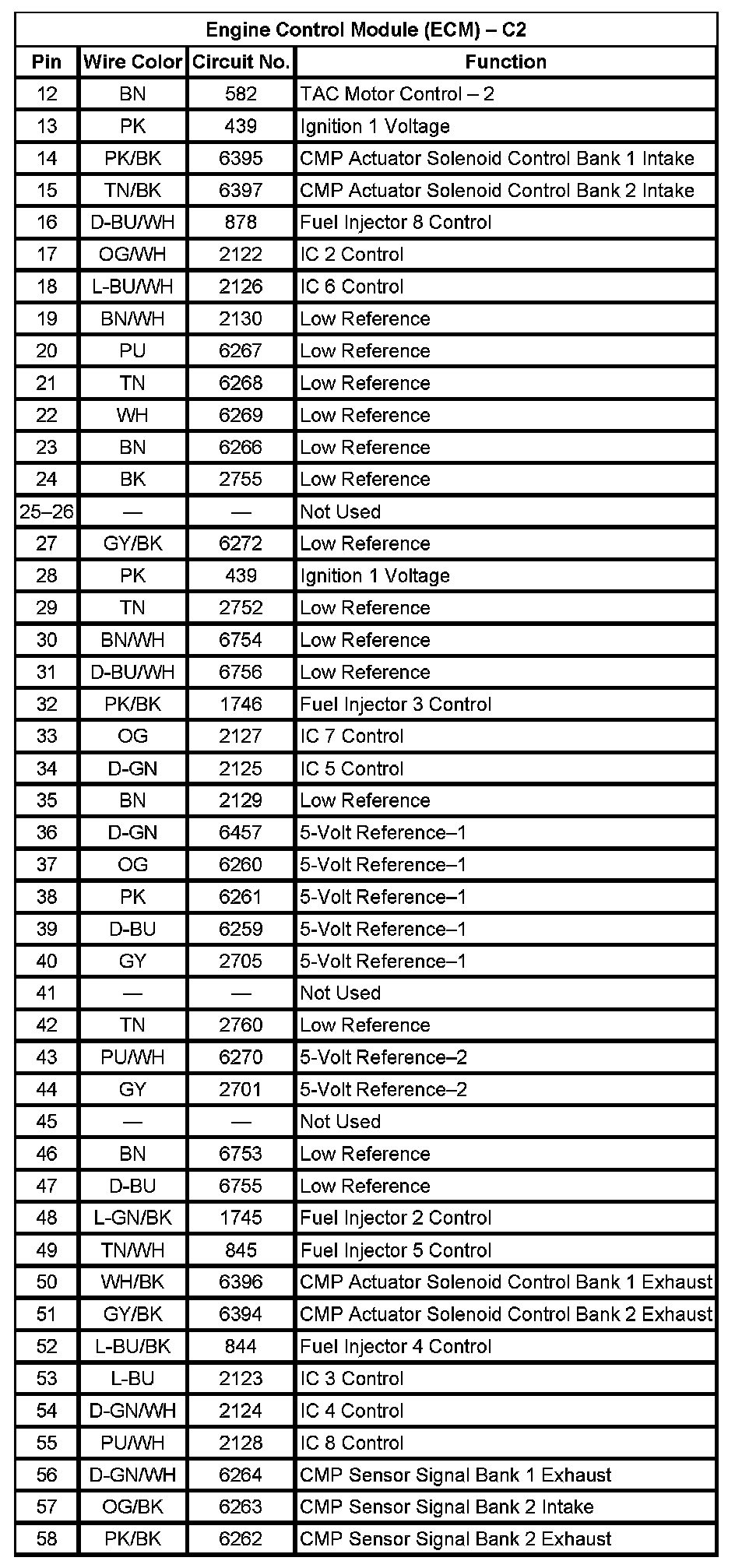

Engine Control Module (ECM) - C2 (Pin 12 To 58):

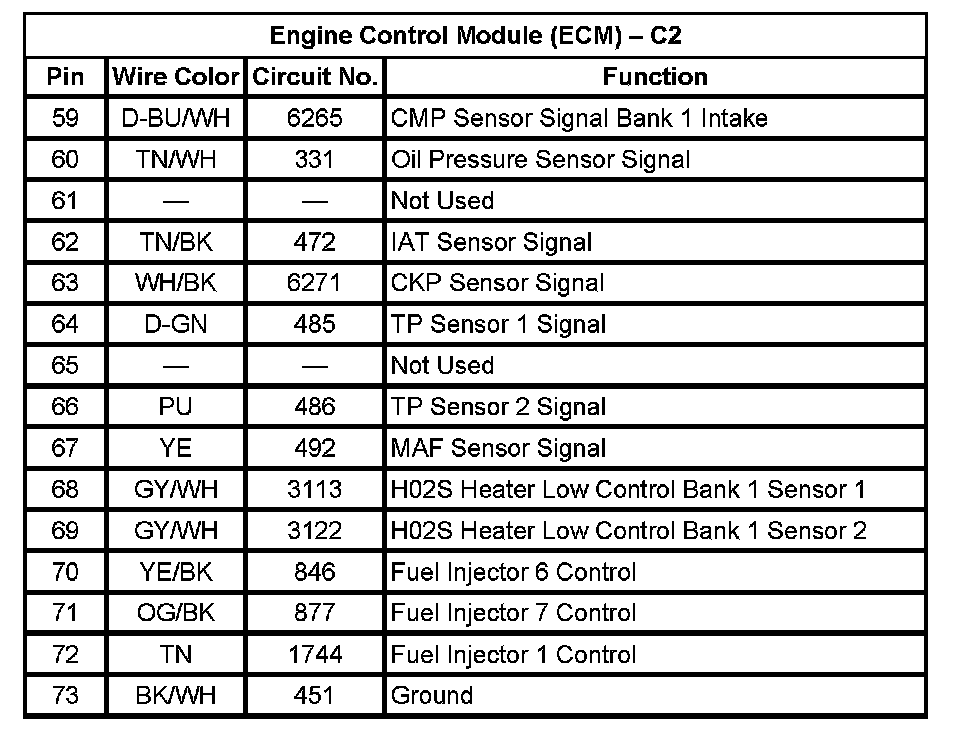

Engine Control Module (ECM) - C2 (Pin 59 To 73):

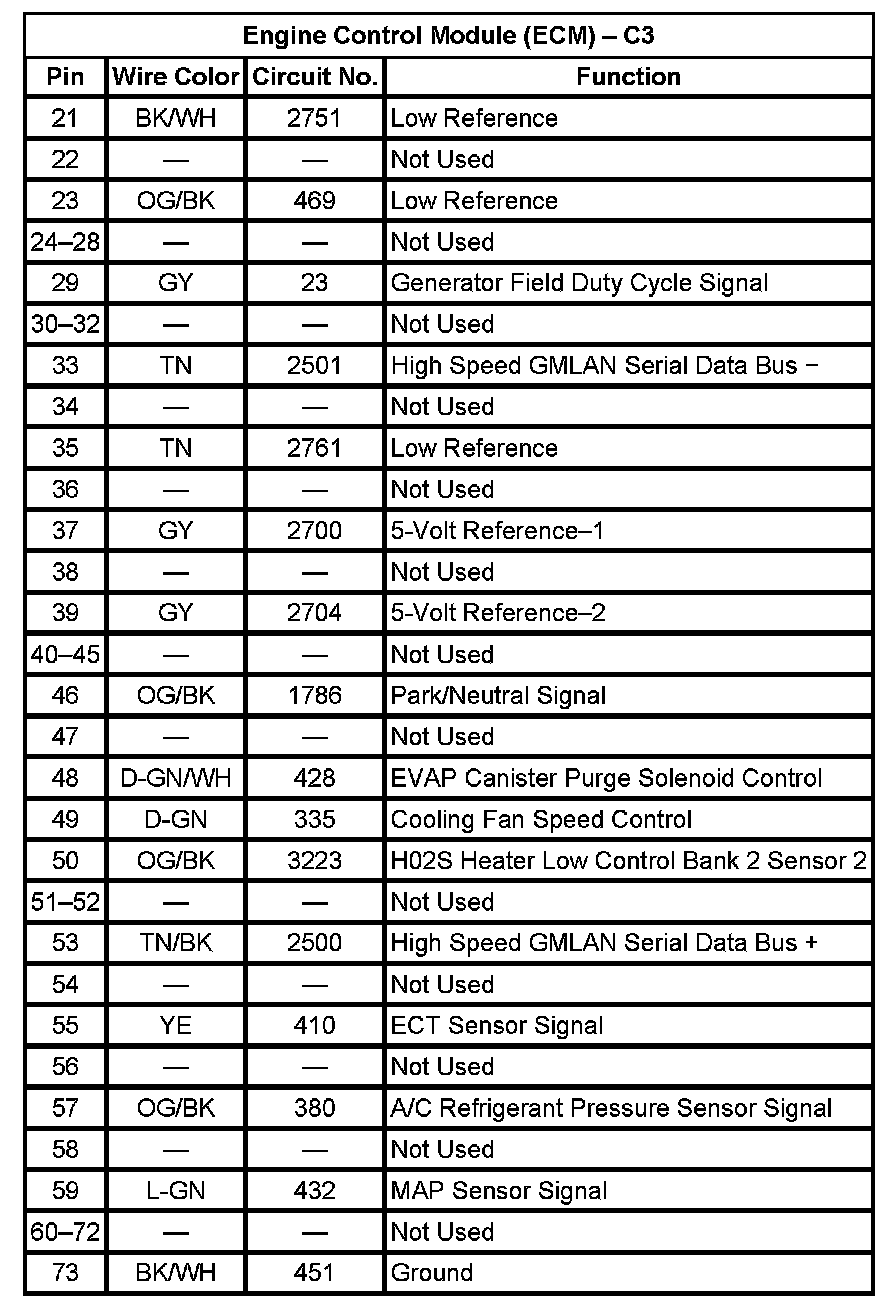

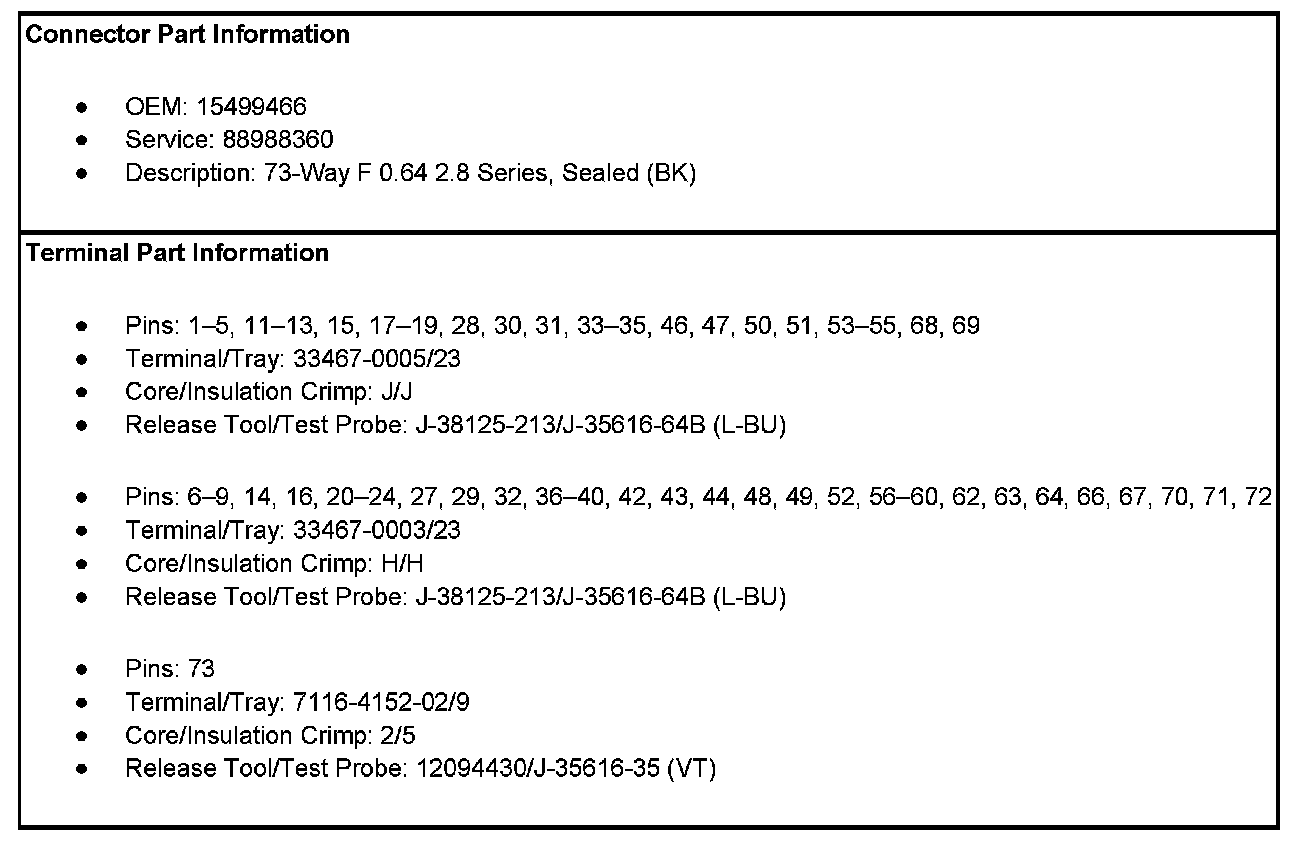

Engine Control Module (ECM) - C3

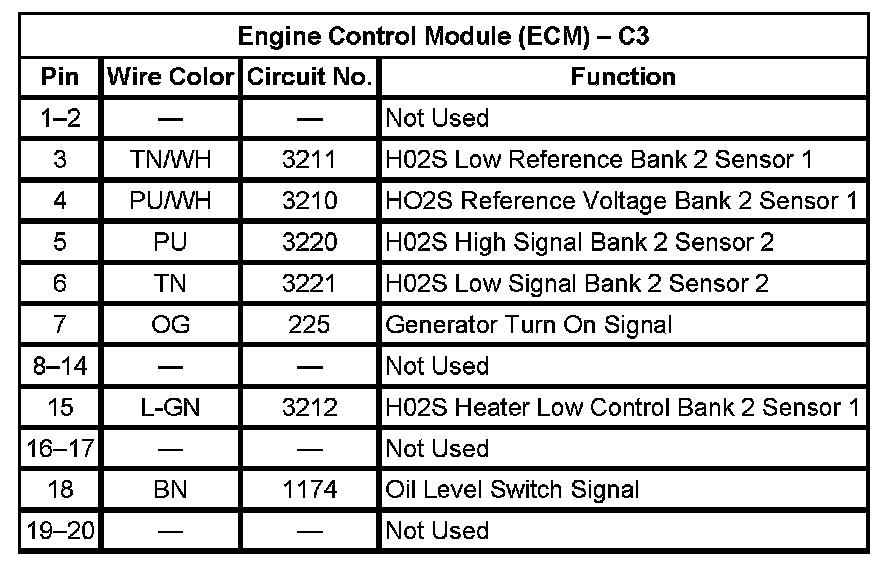

Engine Control Module (ECM) - C3 (Pin 1 To 20):
Engine Control Module (ECM) - C3 (Pin 21 To 73):
