Front Seat Shoulder Belt Guide Adjuster Replacement

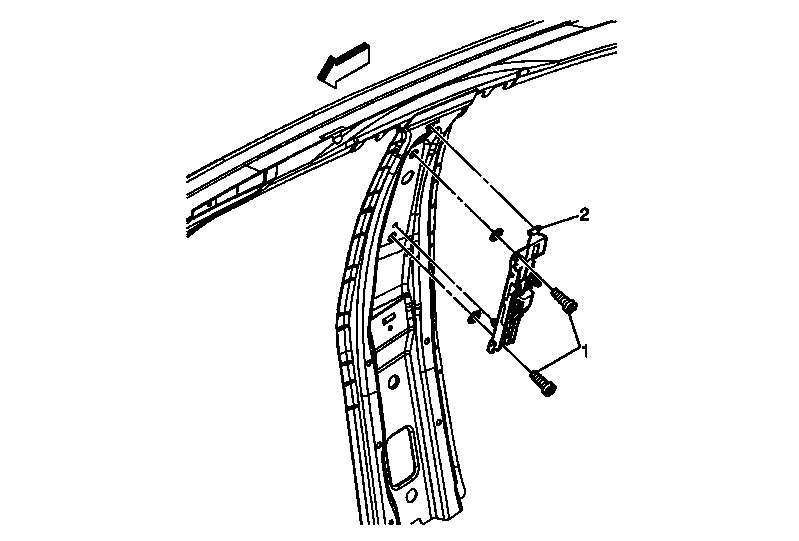

Fig 1: Exploded Viewing of Assembly Front Seat Shoulder Belt Guide Adjuster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the center pillar upper trim. Refer to Center Pillar Upper Trim Panel Replacement .
1	Shoulder Belt Guide Bolt NOTE: Refer to Fastener Notice . Tighten: 47 N.m (35 lb ft)
2	Shoulder Belt Guide Adjuster Bolt Tighten: 47 N.m (35 lb ft)
3	Shoulder Belt Guide Adjuster
