Part 2
Fuel Level Sensor
Fuel Pump and Sender Assembly
Fuel Rail Pressure Sensor (LLT)
Fuel Tank Pressure (FTP) Sensor
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 (MV7)
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 (MYB)
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 (MV7)
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 (MYB)
High Pressure Fuel Pump Actuator Solenoid (LLT)
Ignition Coil 1 (LLT)

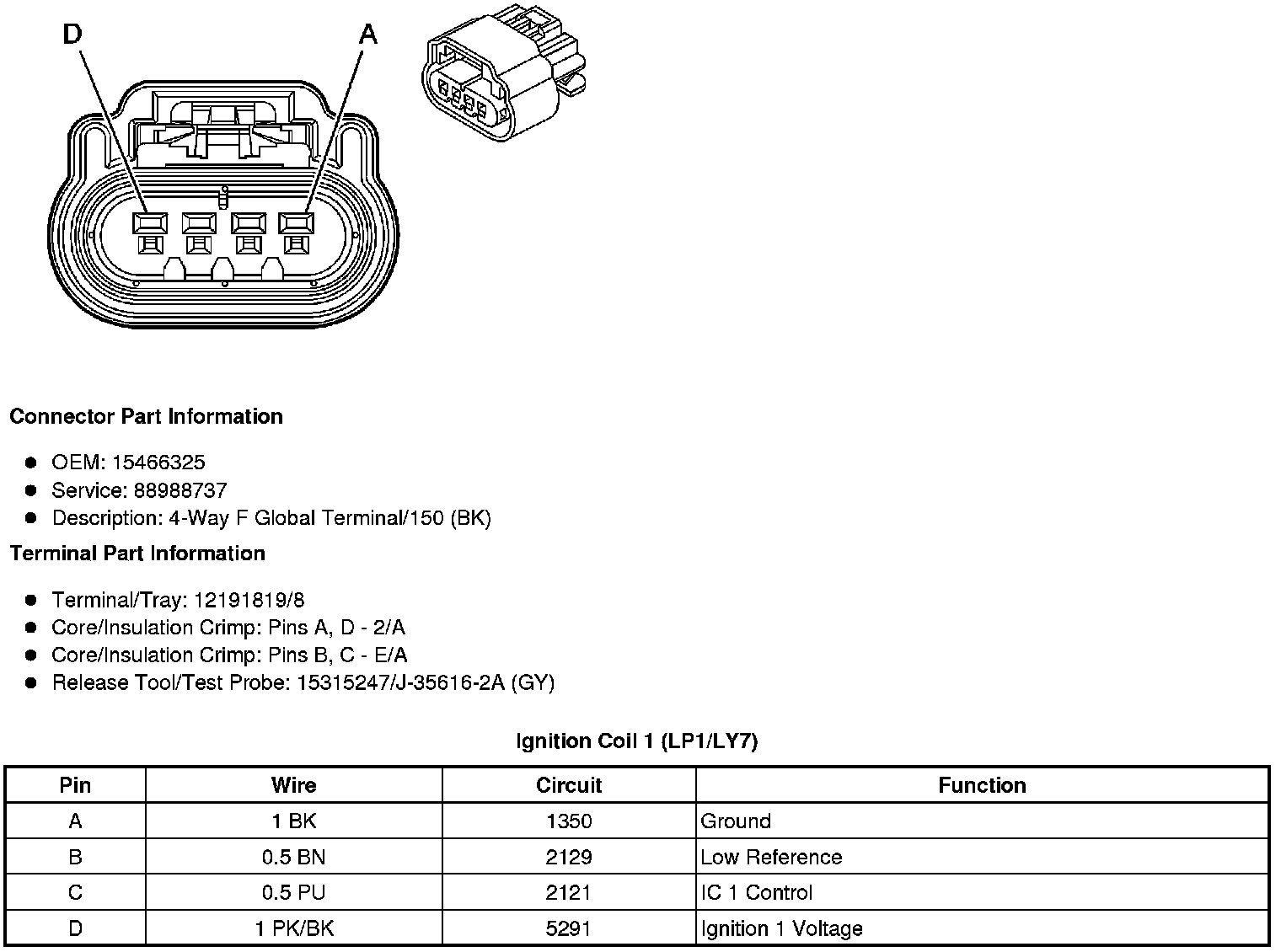

Ignition Coil 1 (LP1/LY7)
Ignition Coil 2 (LLT)
Ignition Coil 2 (LP1/LY7)
Ignition Coil 3 (LLT)
Ignition Coil 3 (LP1/LY7)
Ignition Coil 4 (LLT)
Ignition Coil 4 (LP1/LY7)
Ignition Coil 5 (LLT)

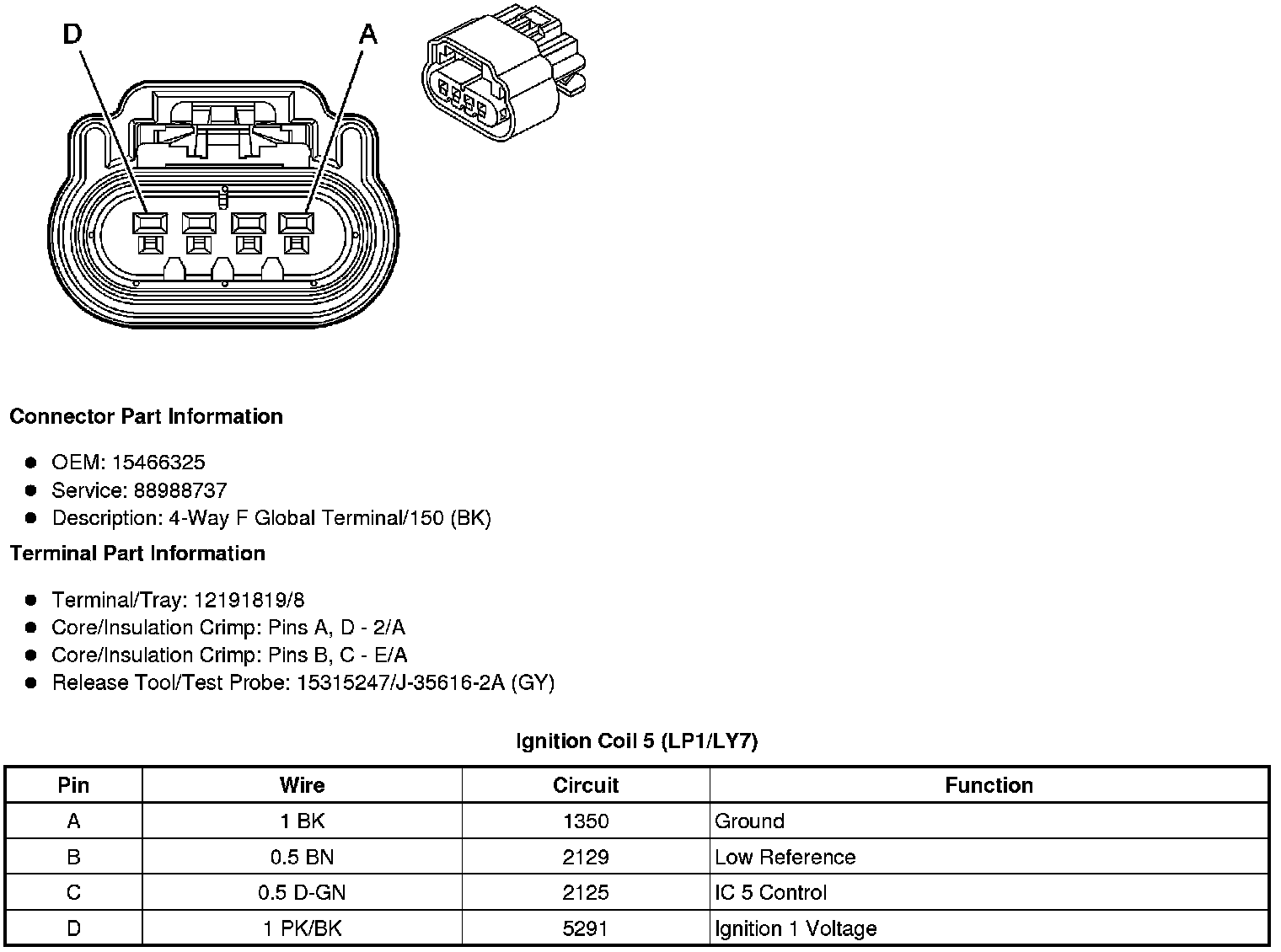

Ignition Coil 5 (LP1/LY7)
Ignition Coil 6 (LLT)

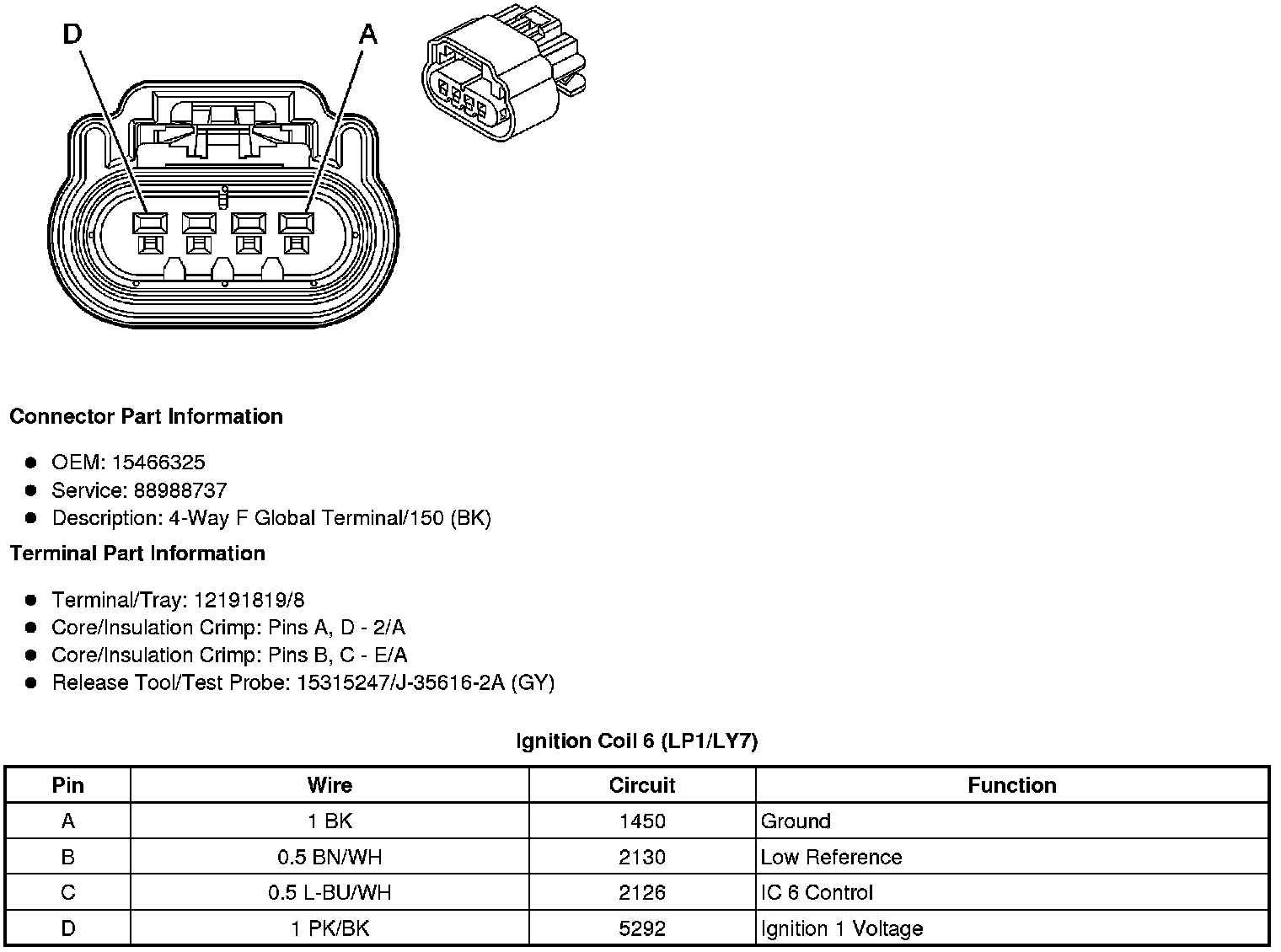

Ignition Coil 6 (LP1/LY7)
Intake Manifold Tuning (IMT) Solenoid Valve (LP1/LY7)
Knock Sensor (KS) 1
Knock Sensor (KS) 2
Vehicle Communication Interface Module (VCIM) Battery (UE1)

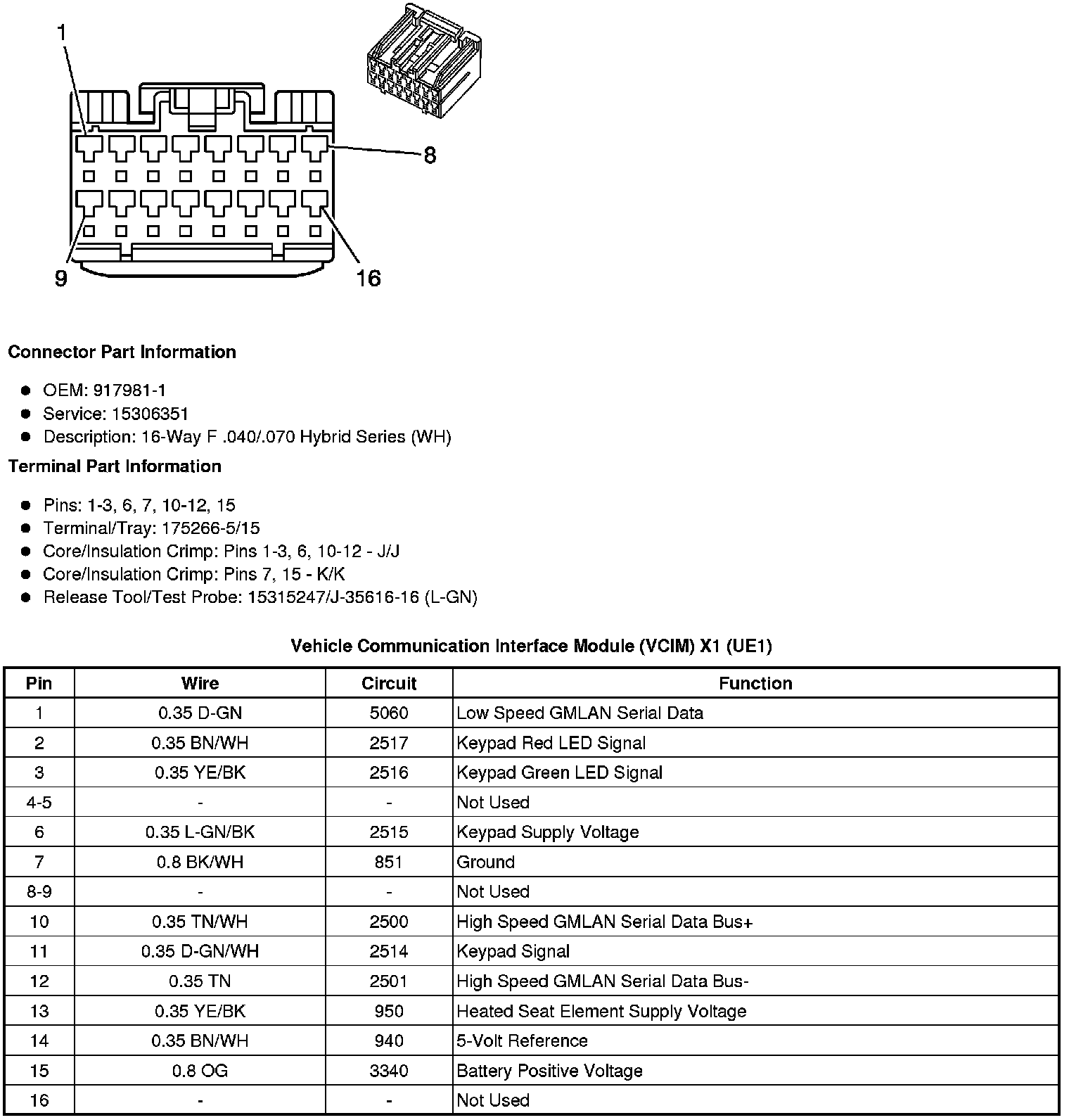

Vehicle Communication Interface Module (VCIM) X1 (UE1)

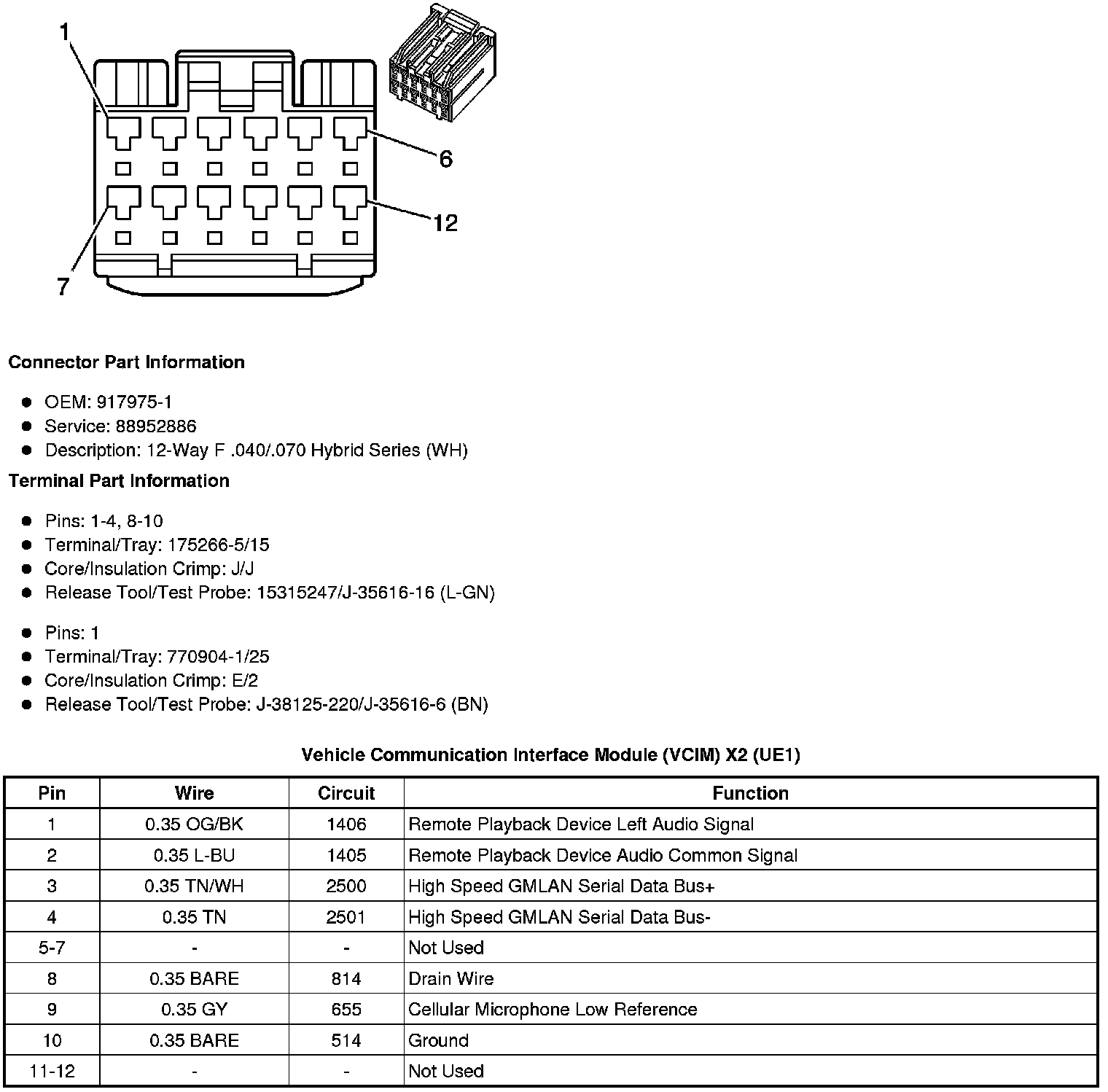

Vehicle Communication Interface Module (VCIM) X2 (UE1)

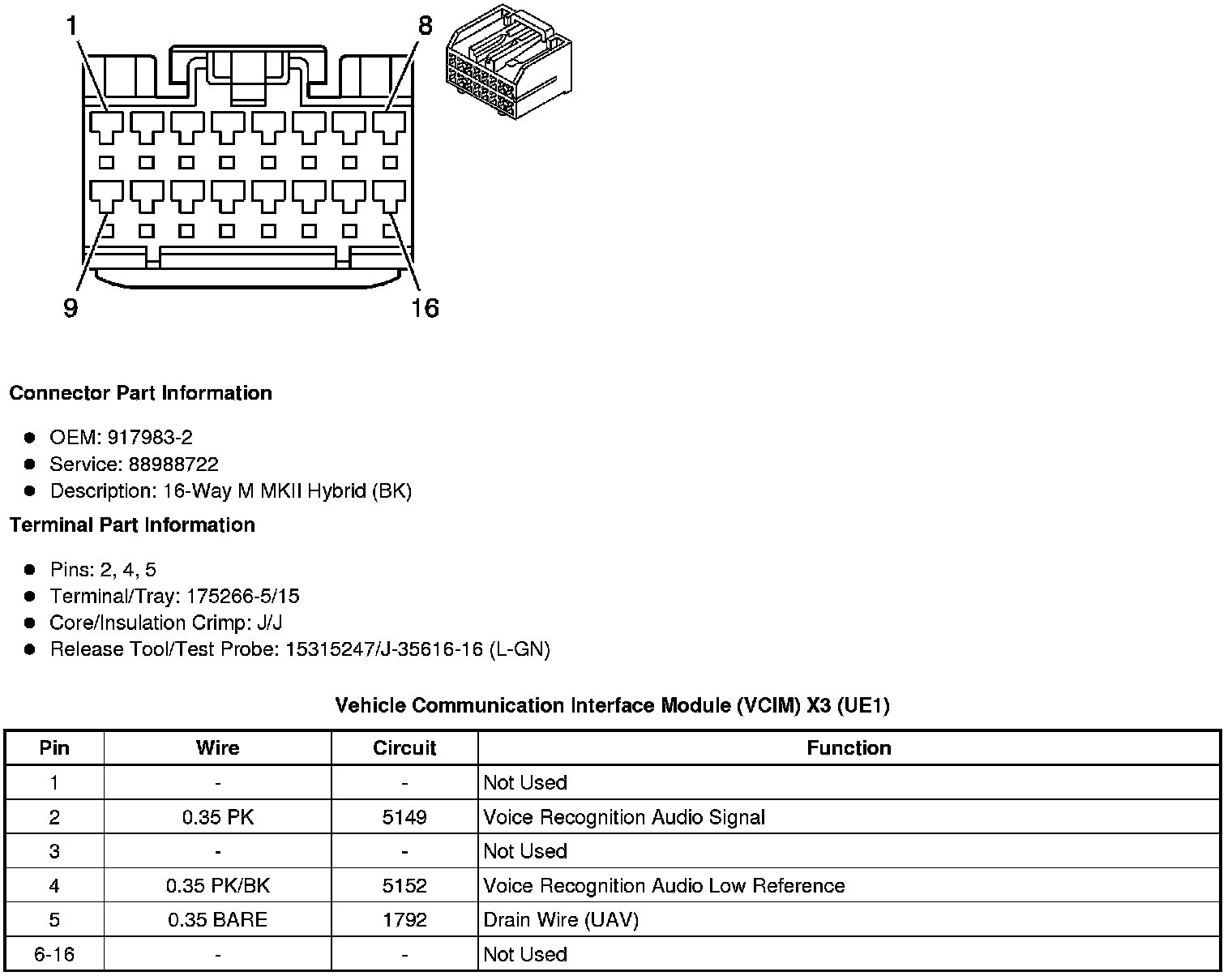

Vehicle Communication Interface Module (VCIM) X3 (UE1)
Vehicle Speed Sensor (VSS) (MV7)
Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

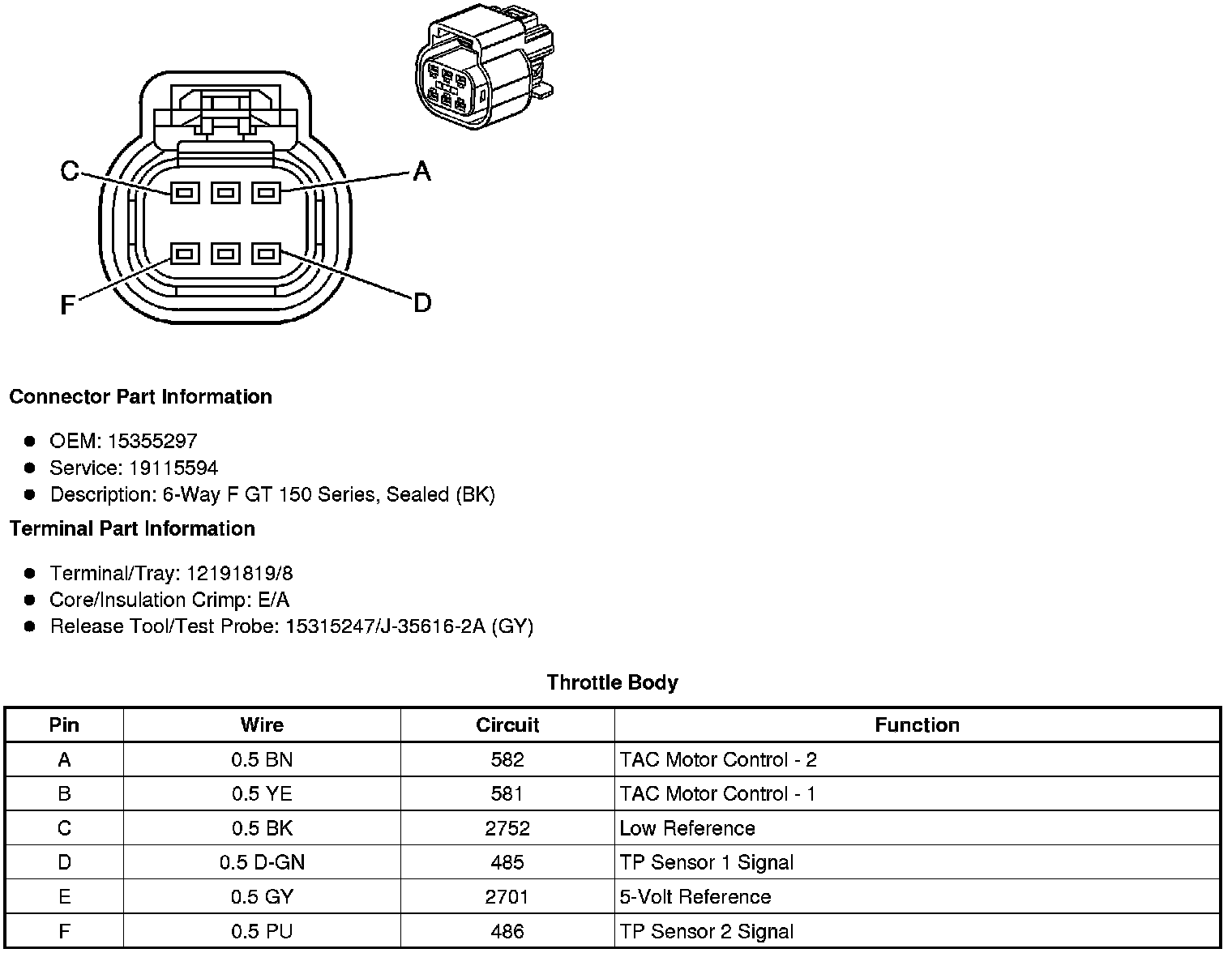

Throttle Body
