Keyless Entry Module: Locations

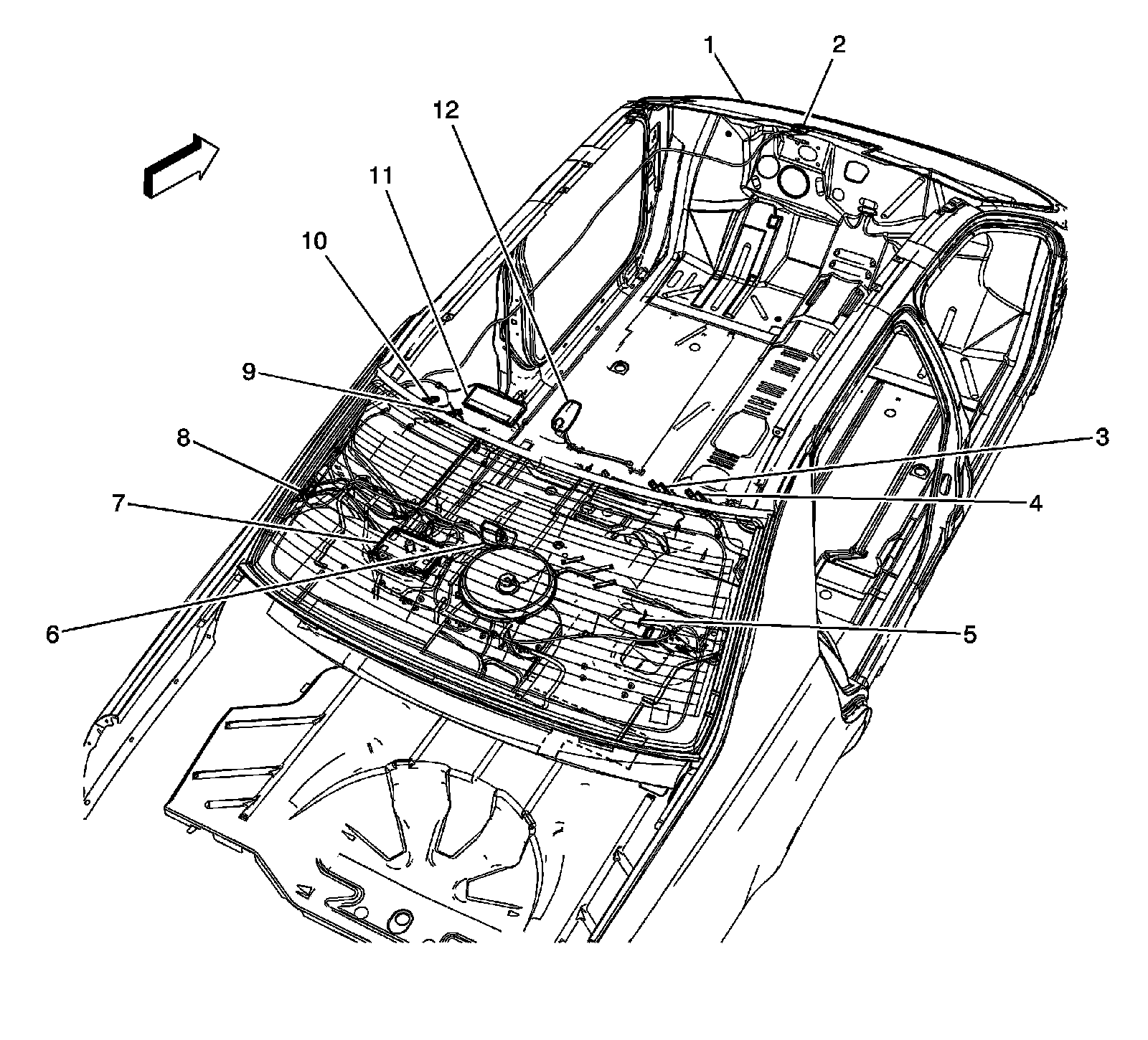

Passenger Compartment/Roof Component Views

Antenna Modules (UQ3, Japan)




1 - Front Windshield
2 - FM Antenna Module
3 - Antenna/TV Antenna Amplifier - Right Rear Center (U3Q, Japan)
4 - Antenna/TV Antenna Amplifier - Right Rear (U3Q, Japan)
5 - Video Display Module (U3Q)
6 - Remote Control Door Lock Receiver (RCDLR)
7 - Traffic Information Receiver (U3Q)
8 - X342
9 - Antenna/TV Antenna Amplifier - Left Rear Center (U3Q, Japan)
10 - Antenna/TV Antenna Amplifier - Right Rear (U3Q, Japan)
11 - Radio Antenna Module
12 - Cellular Navigation and Digital Radio Antenna (UE1/U2K)
