Vehicle Communication Interface Module (VCIM) X3 (UE1)

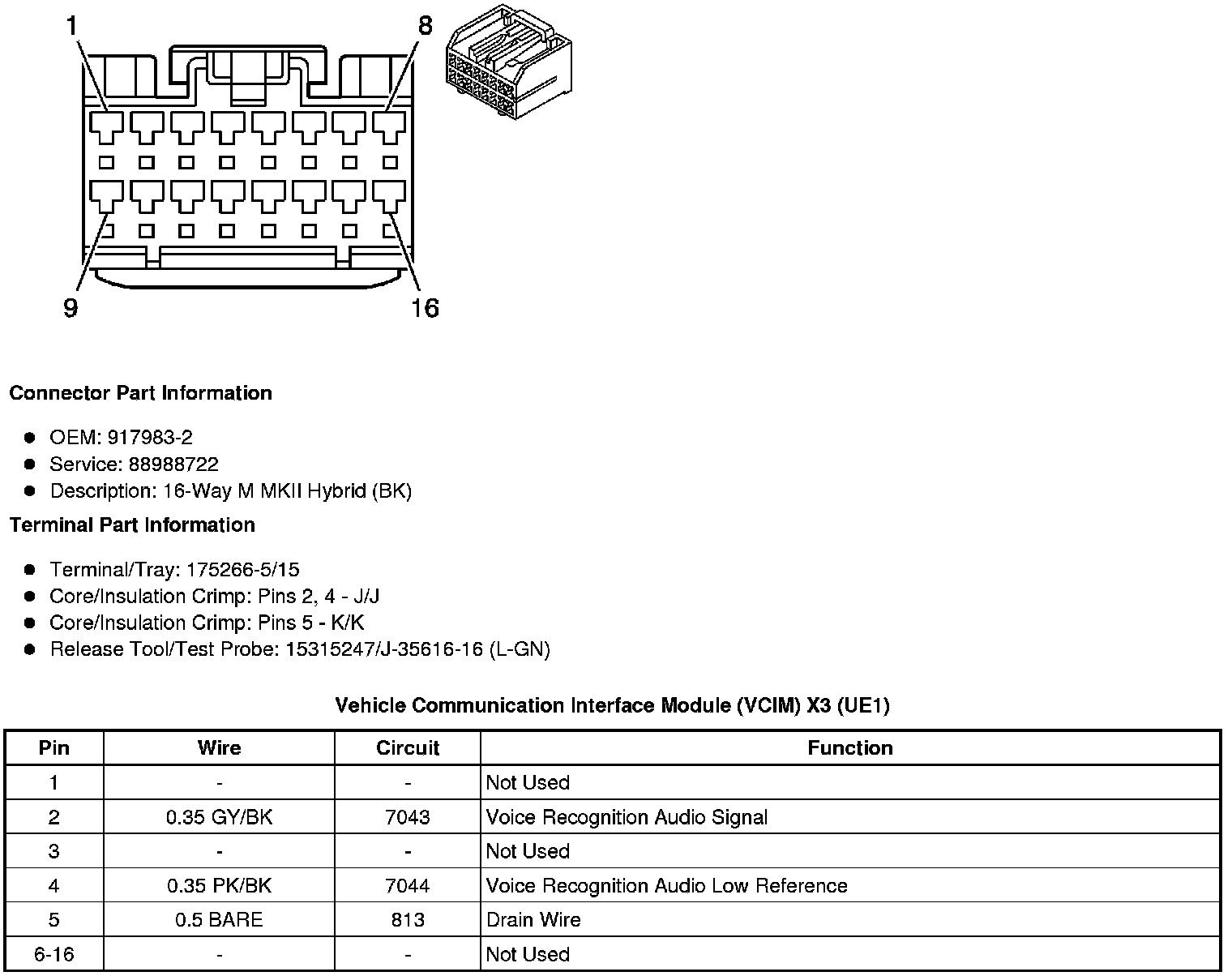

Component Connector End Views
Vehicle Communication Interface Module (VCIM) X3 (UE1)
