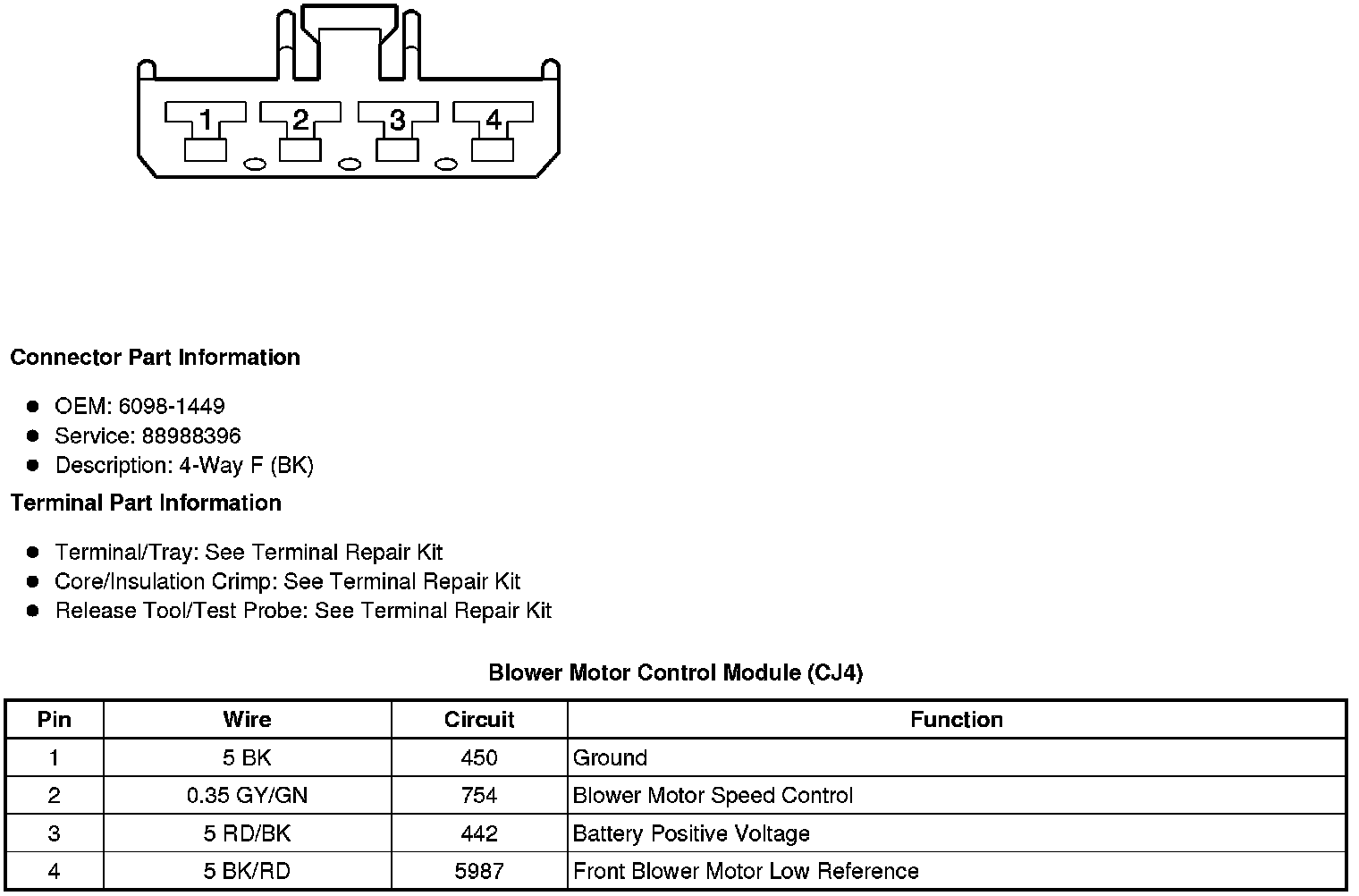

Blower Motor Control Module (CJ4)



Component Connector End Views

Blower Motor Control Module (CJ4)
