Seat Occupant Classification Module - Air Bag

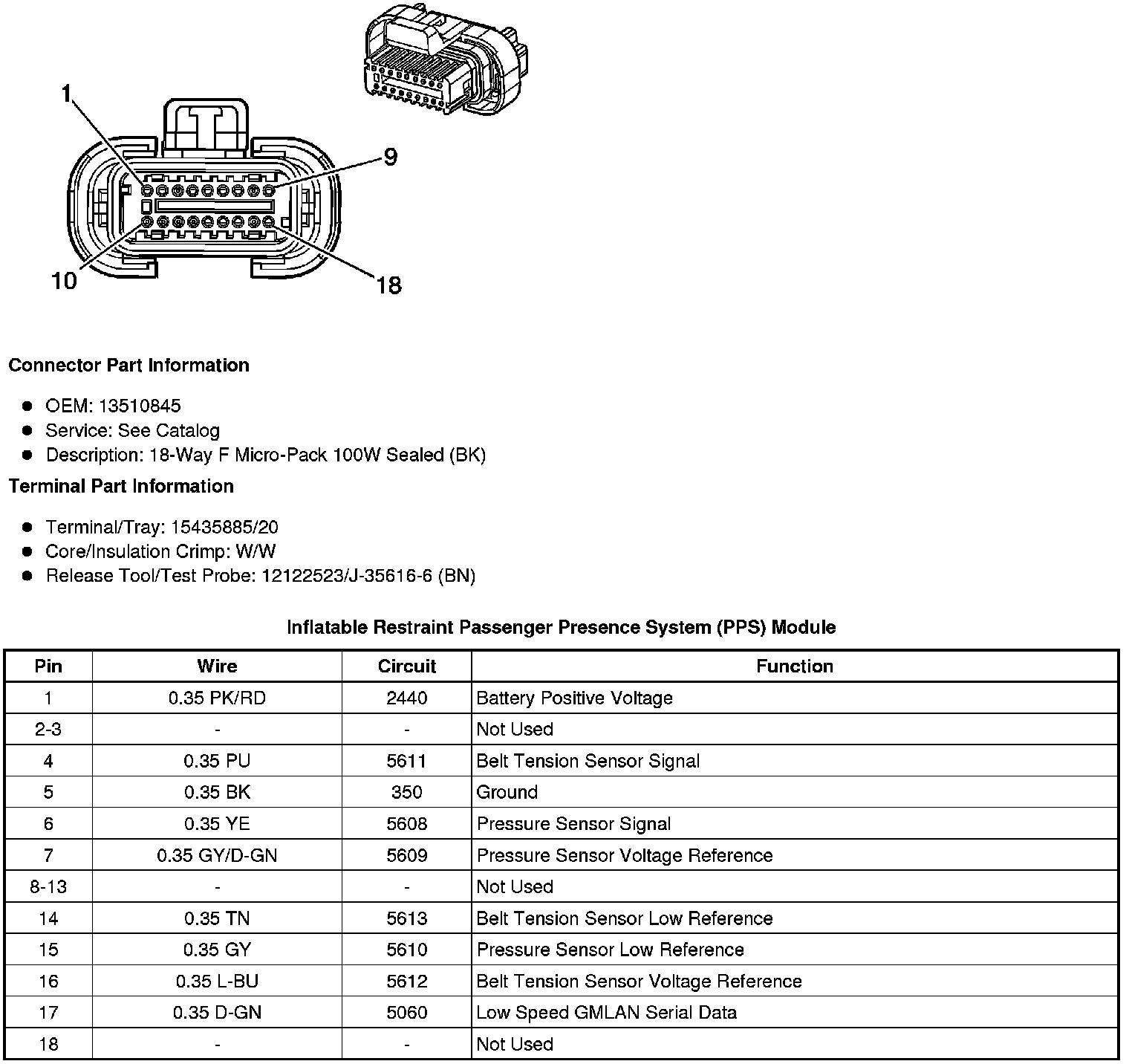

Component Connector End Views

Inflatable Restraint Passenger Presence System (PPS) Module
