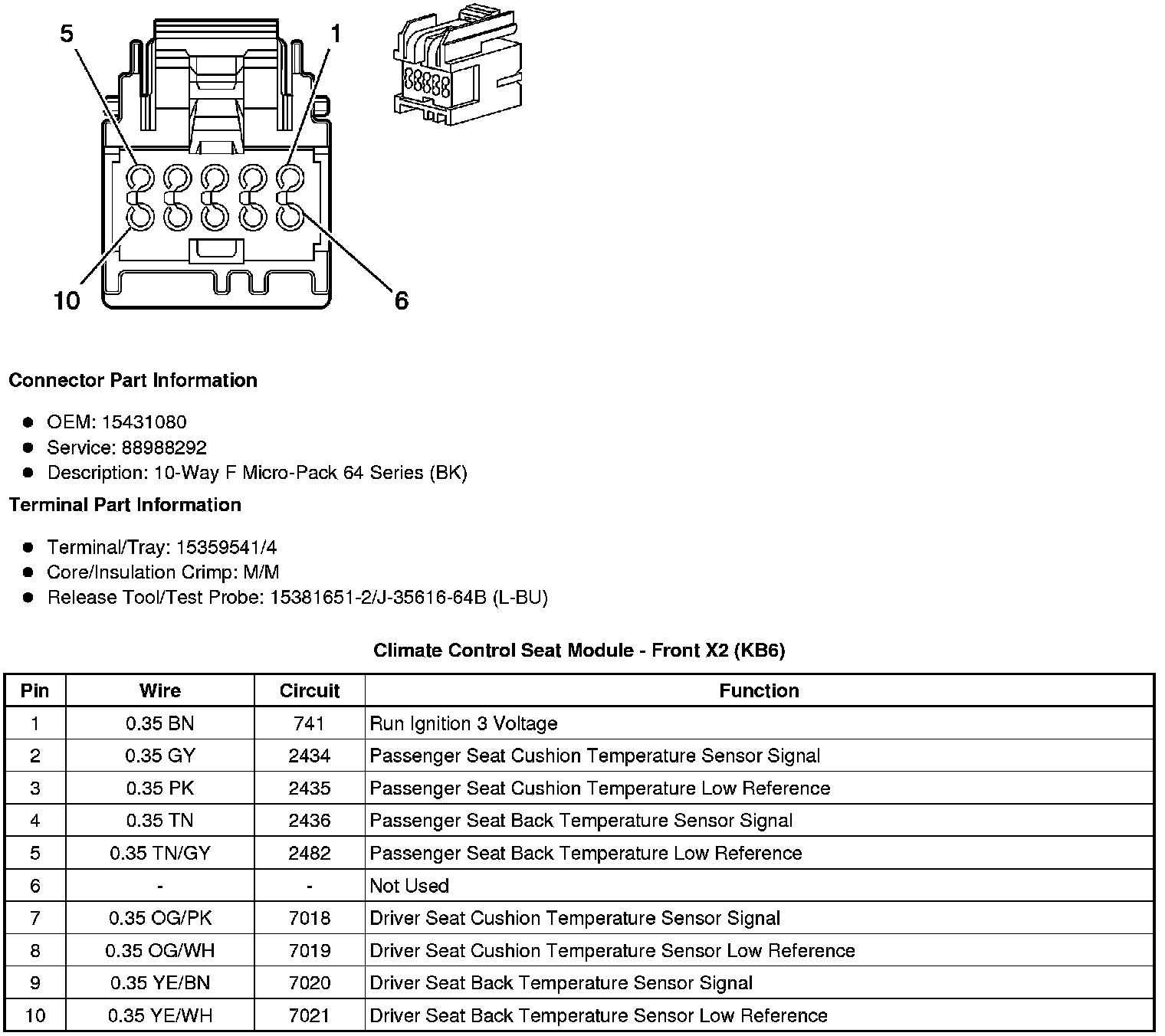

Climate Control Seat Module - Front X2 (KB6)
Component Connector End Views
Climate Control Seat Module - Front X2 (KB6)
