Engine Control Module



Component Connector End Views

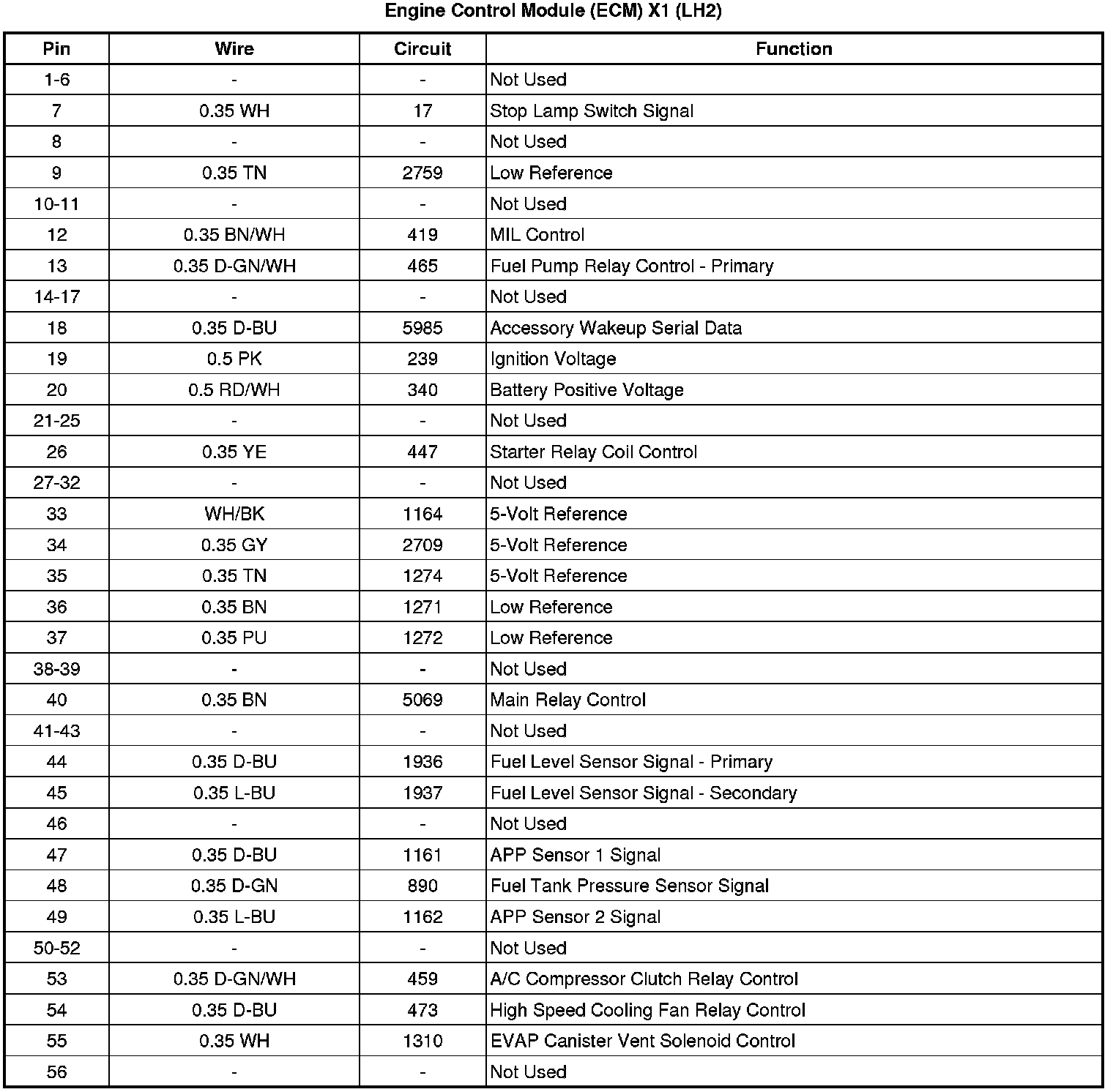

Engine Control Module (ECM) X1 (LH2 - Gas, 8 Cylinder, 4.6L, SFI, V8, DOHC, HO)

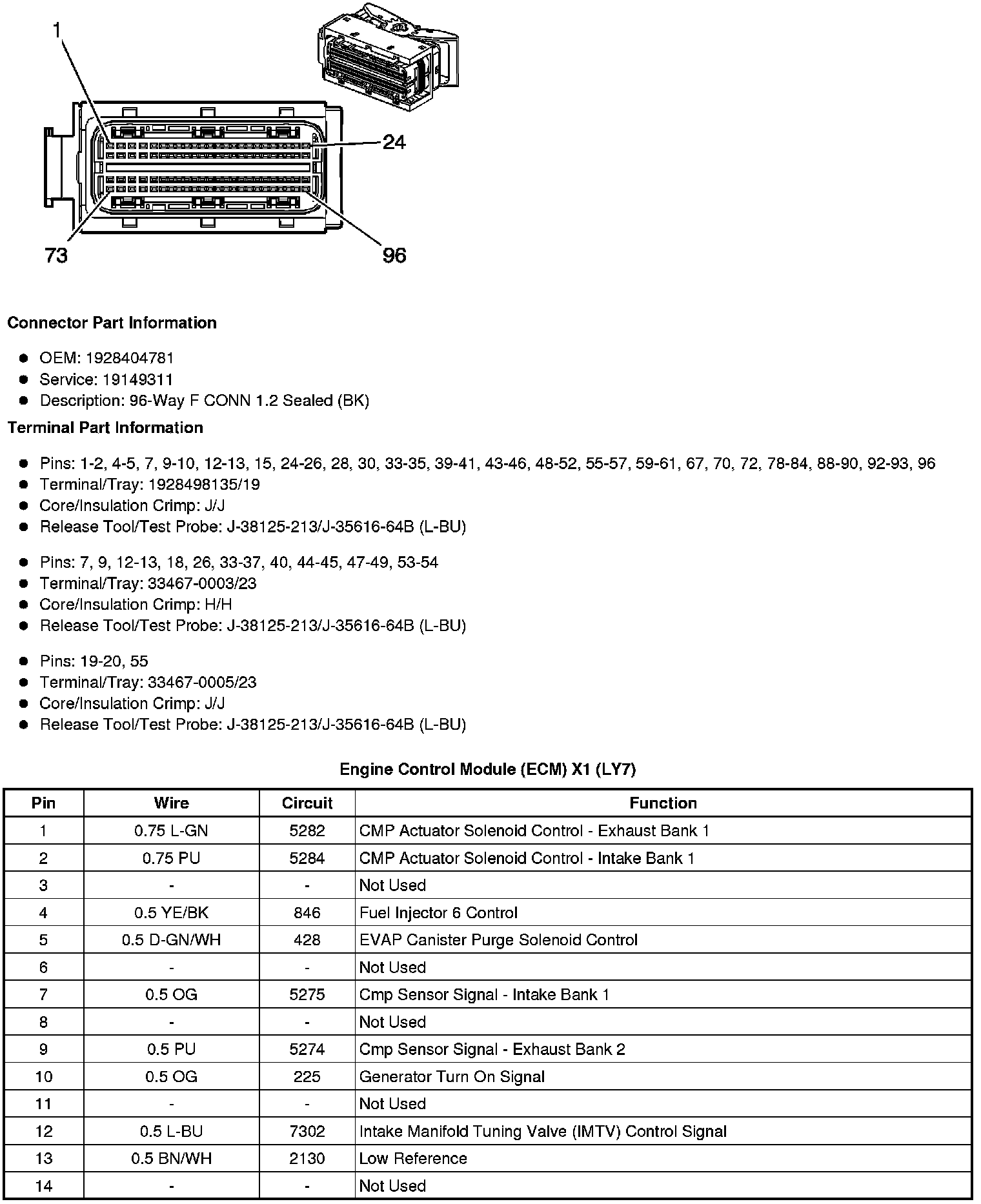

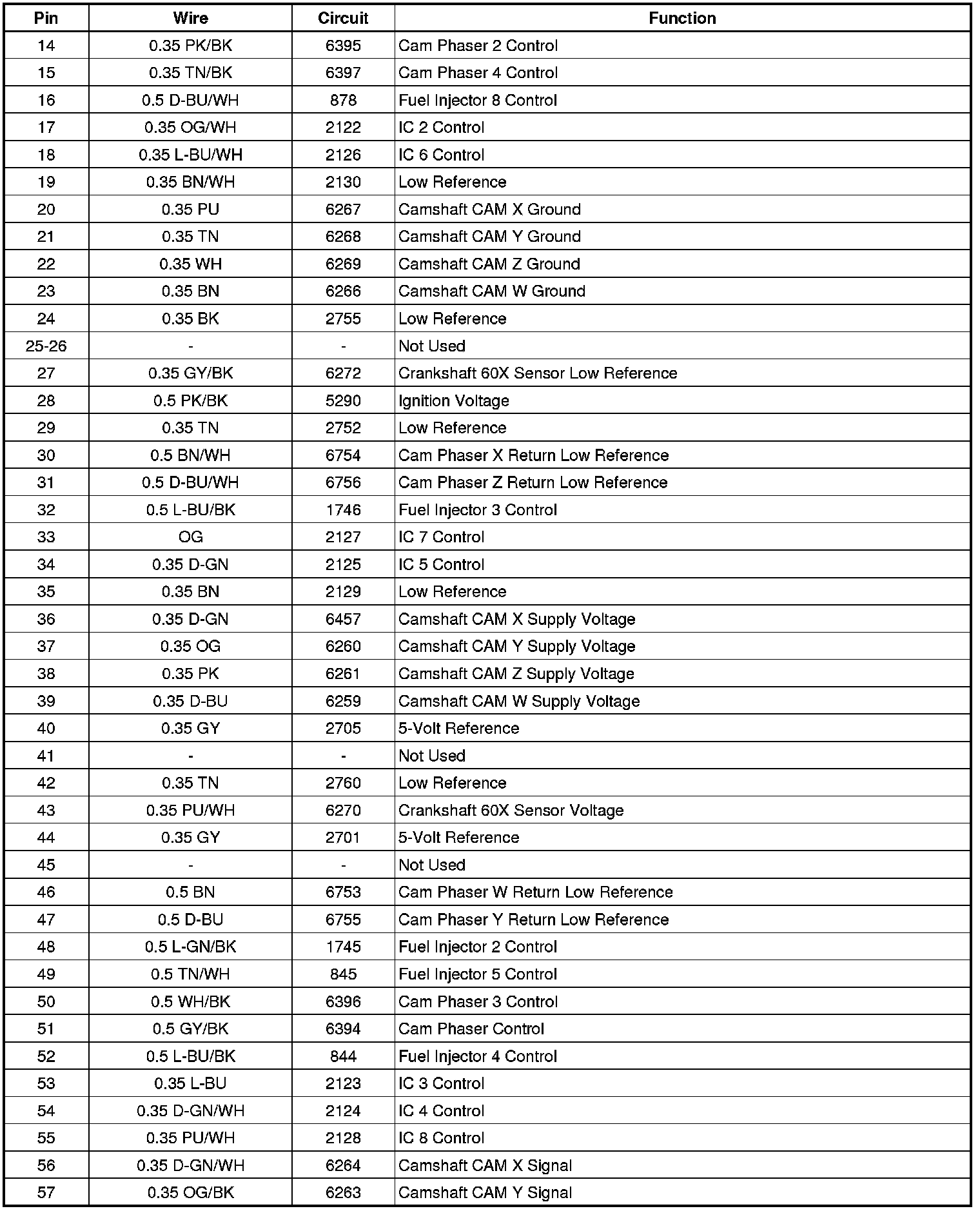

Engine Control Module (ECM) X1 (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)

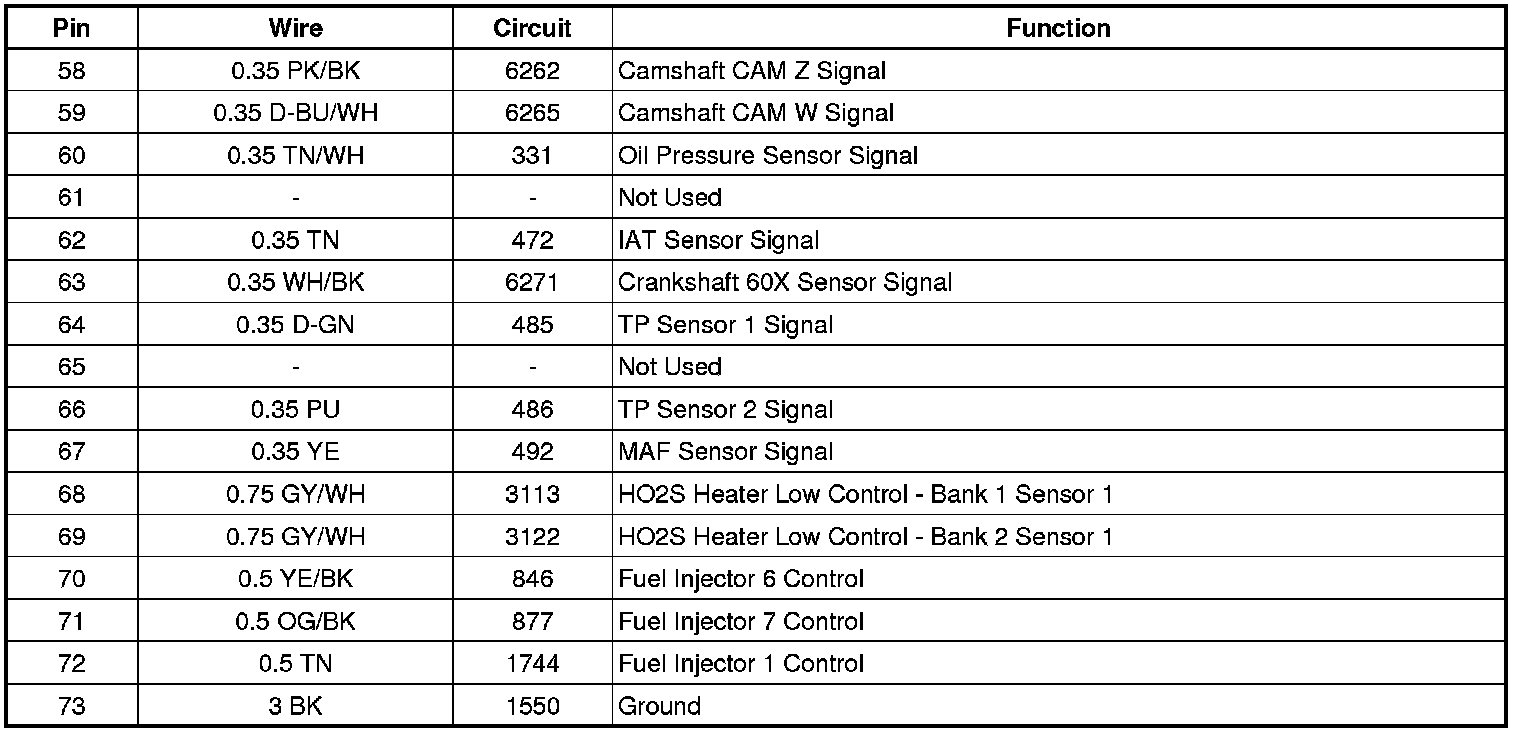

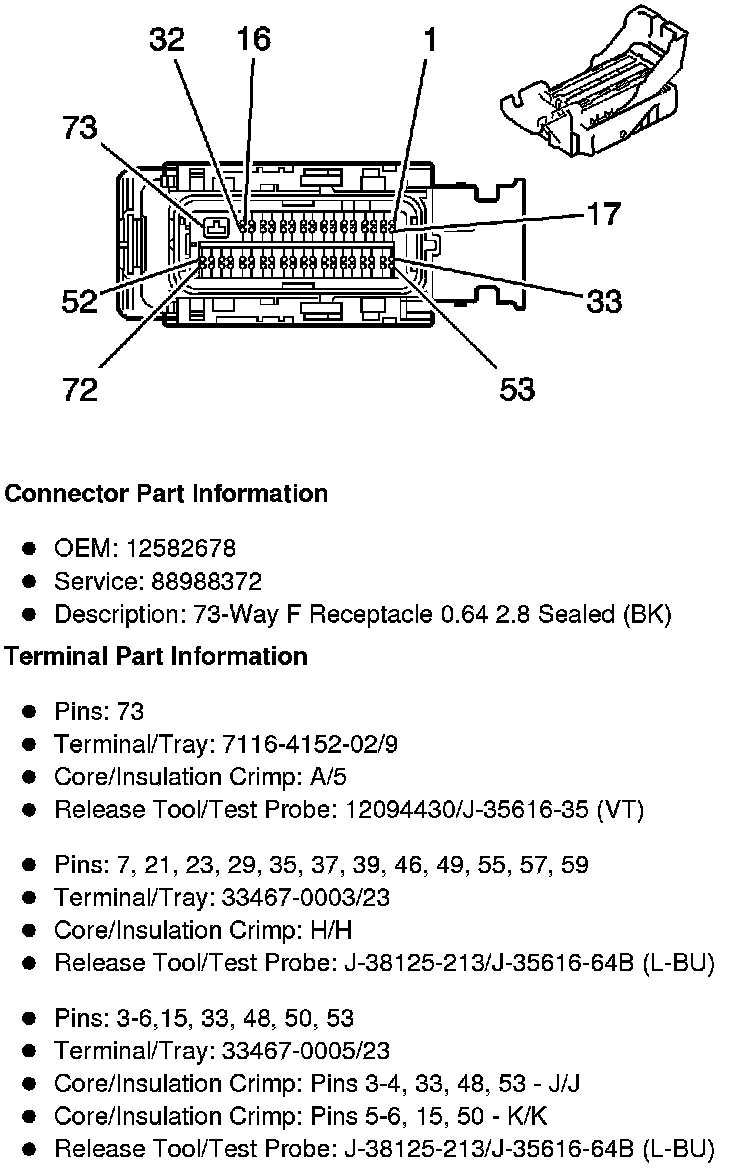

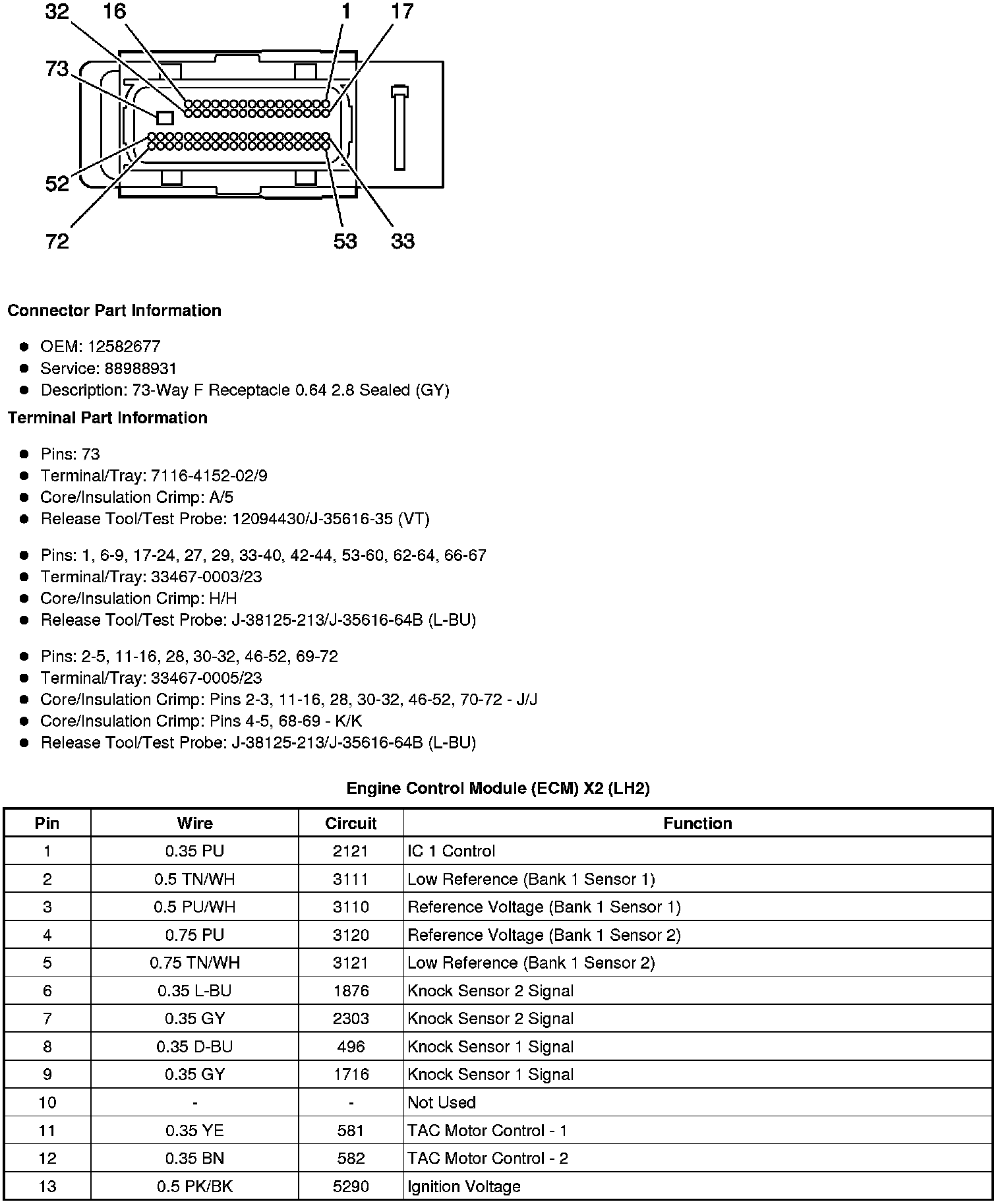

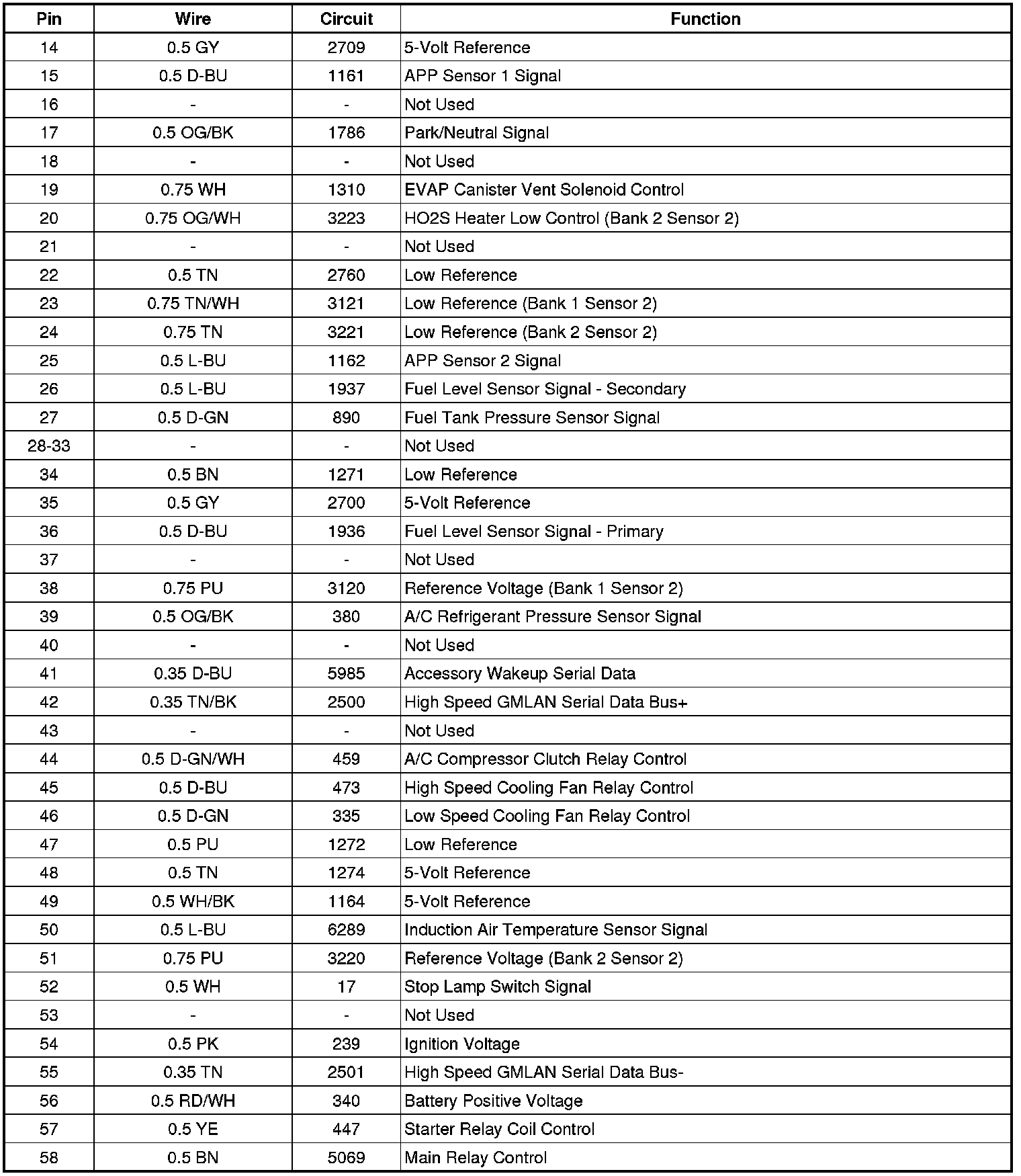

Engine Control Module (ECM) X2 (LH2 - Gas, 8 Cylinder, 4.6L, SFI, V8, DOHC, HO)

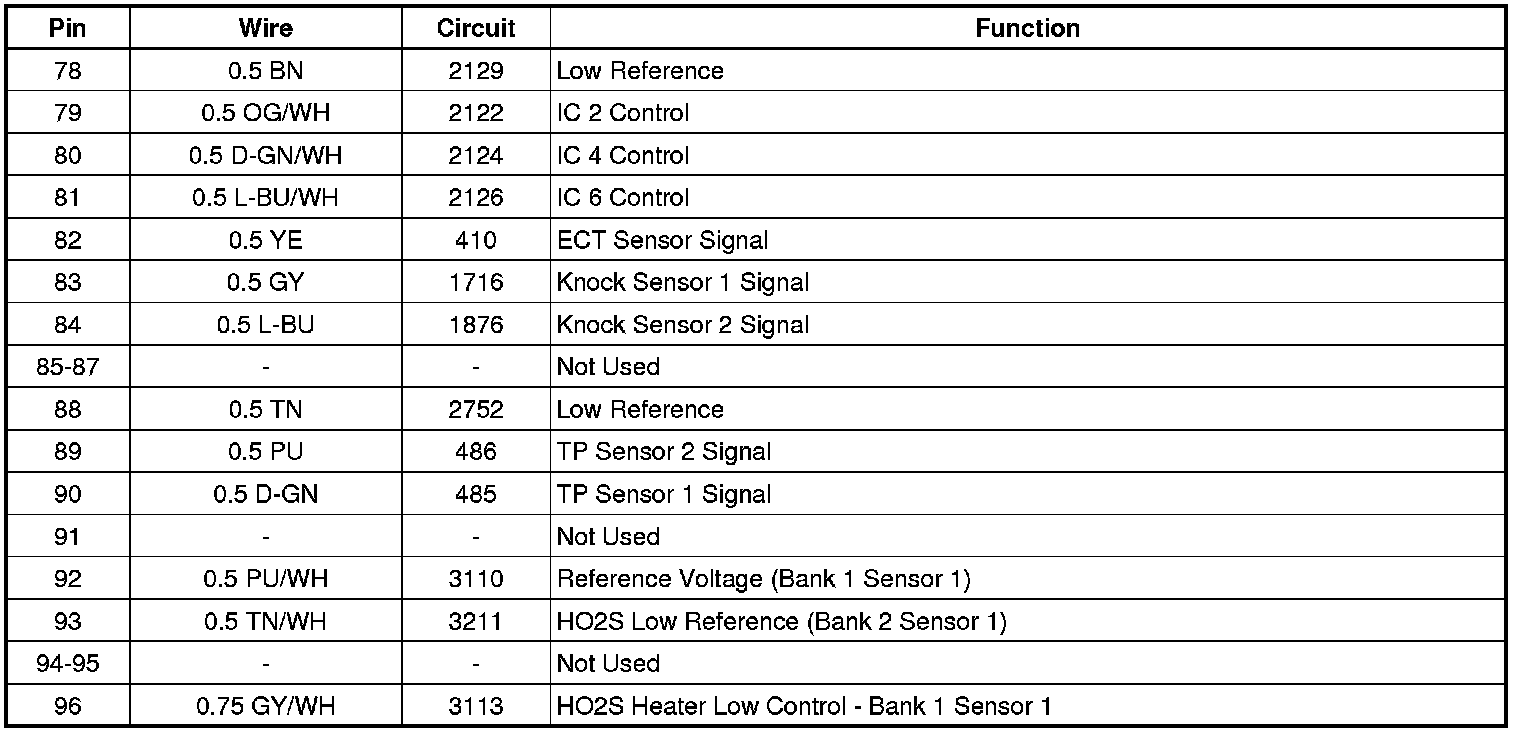

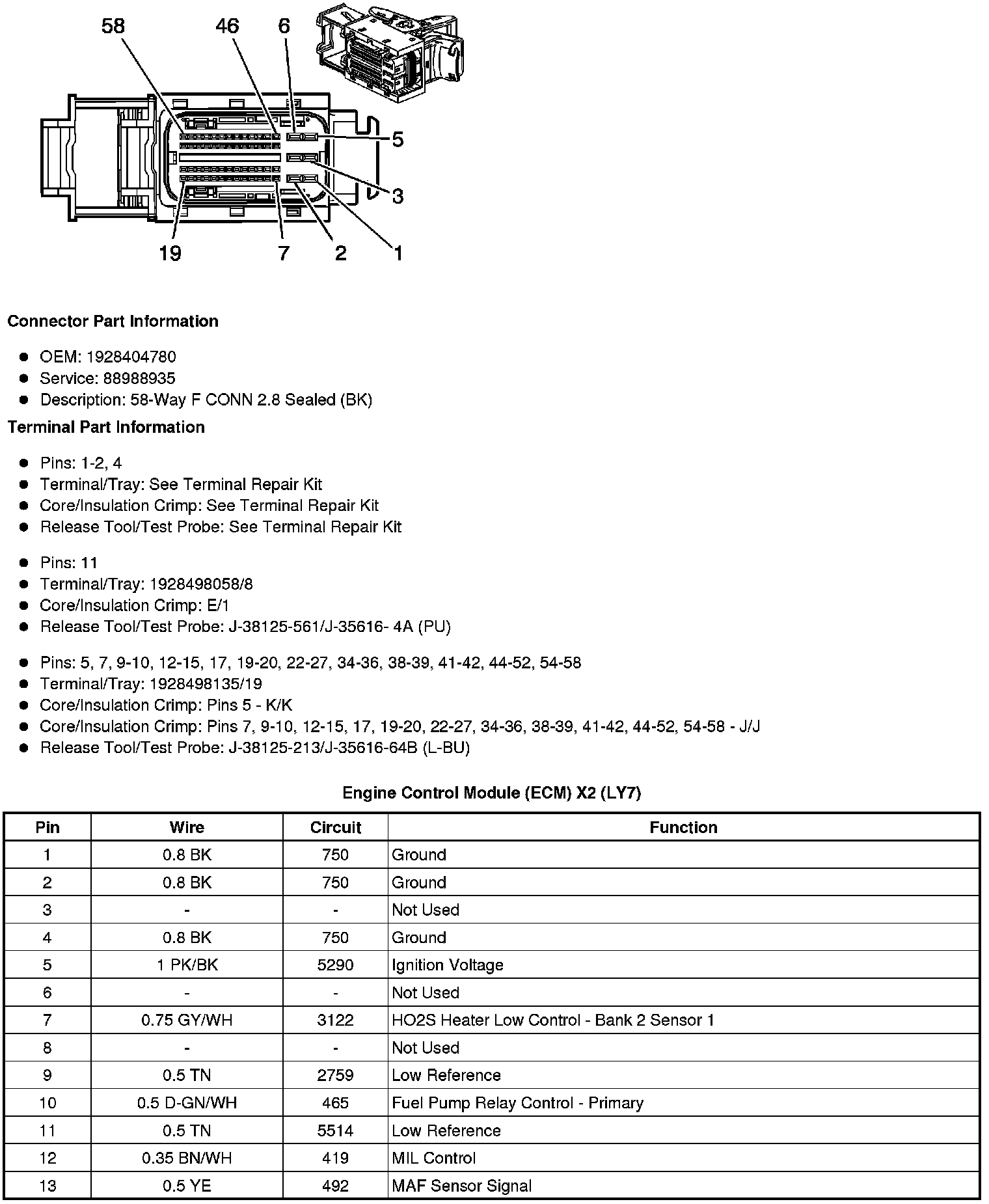

Engine Control Module (ECM) X2 (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)

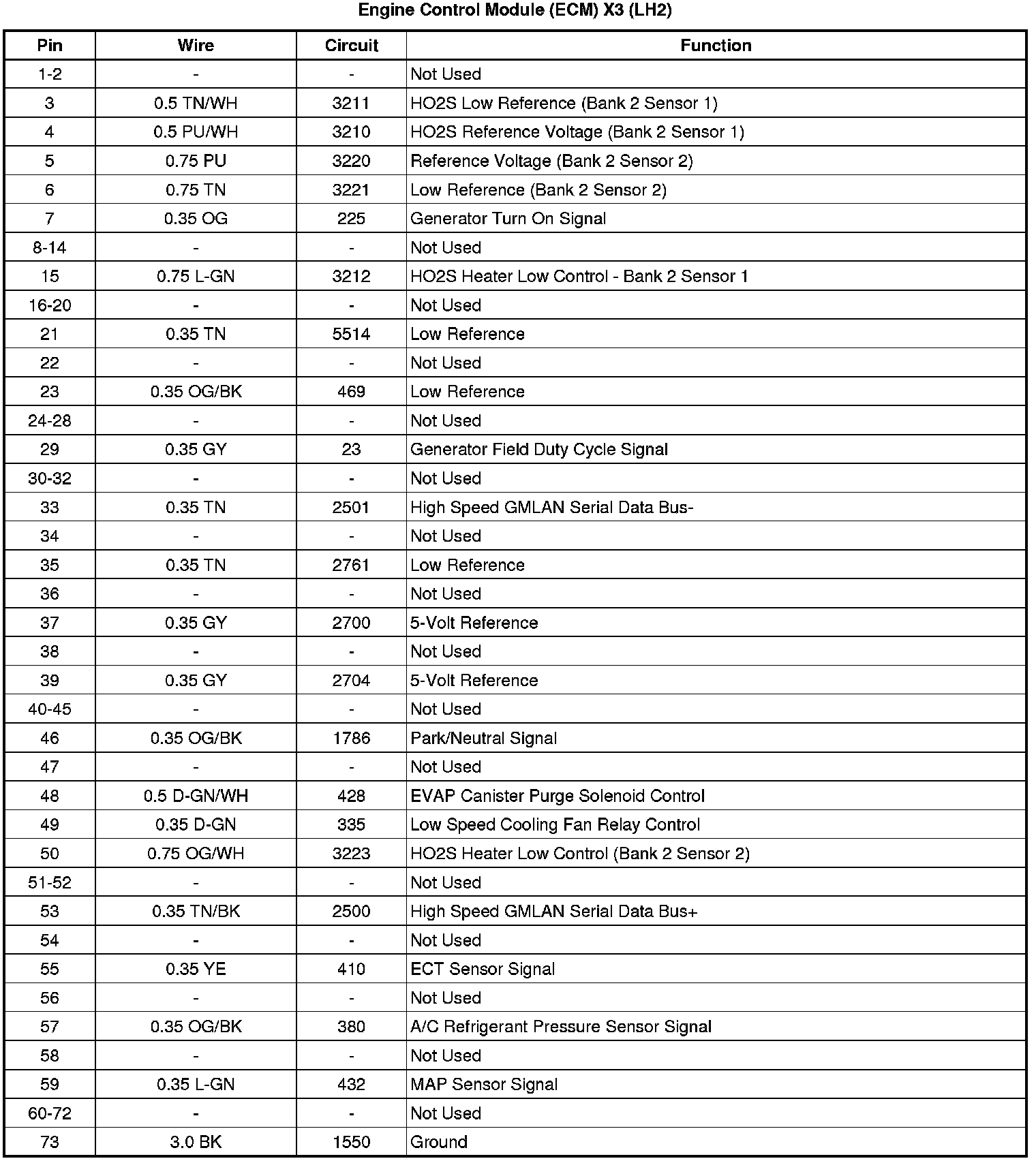

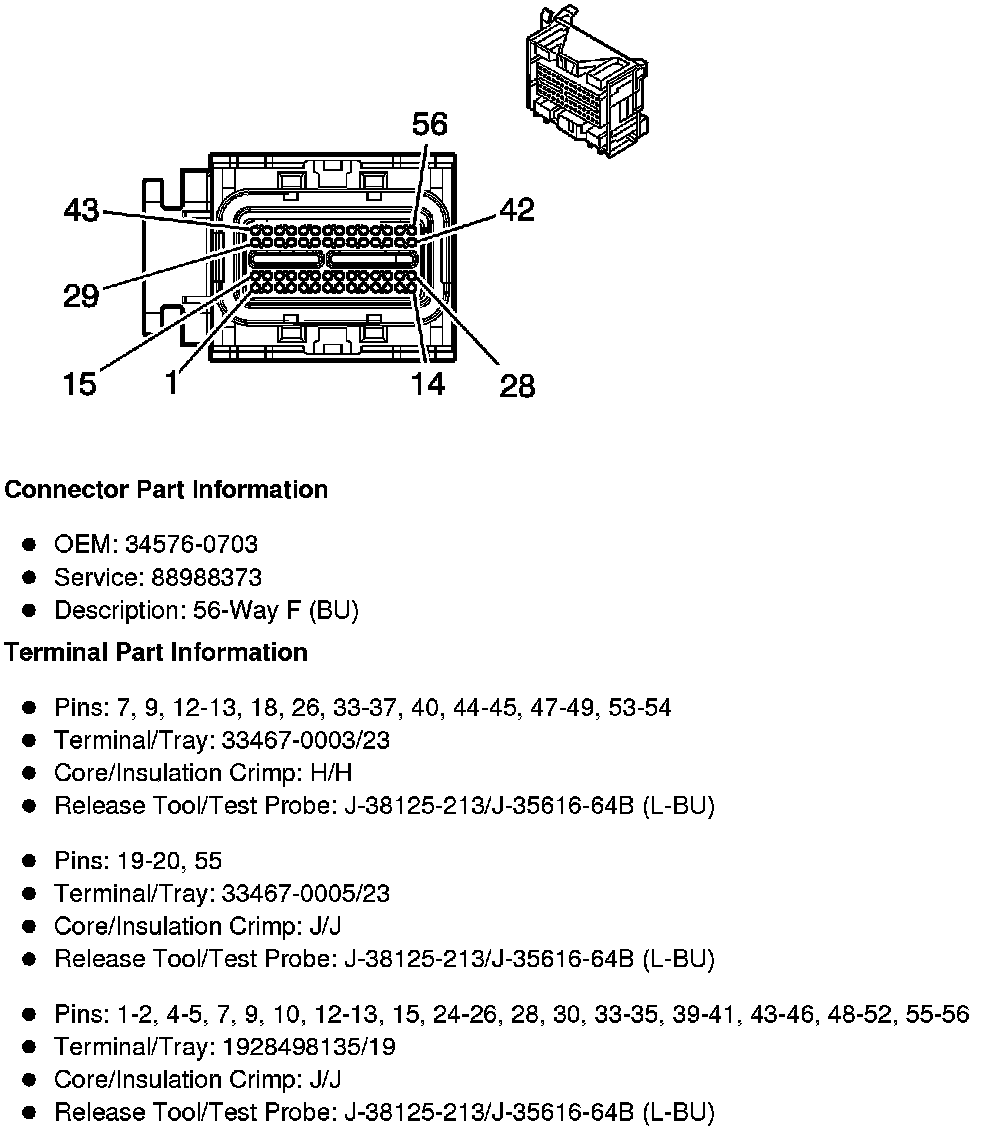

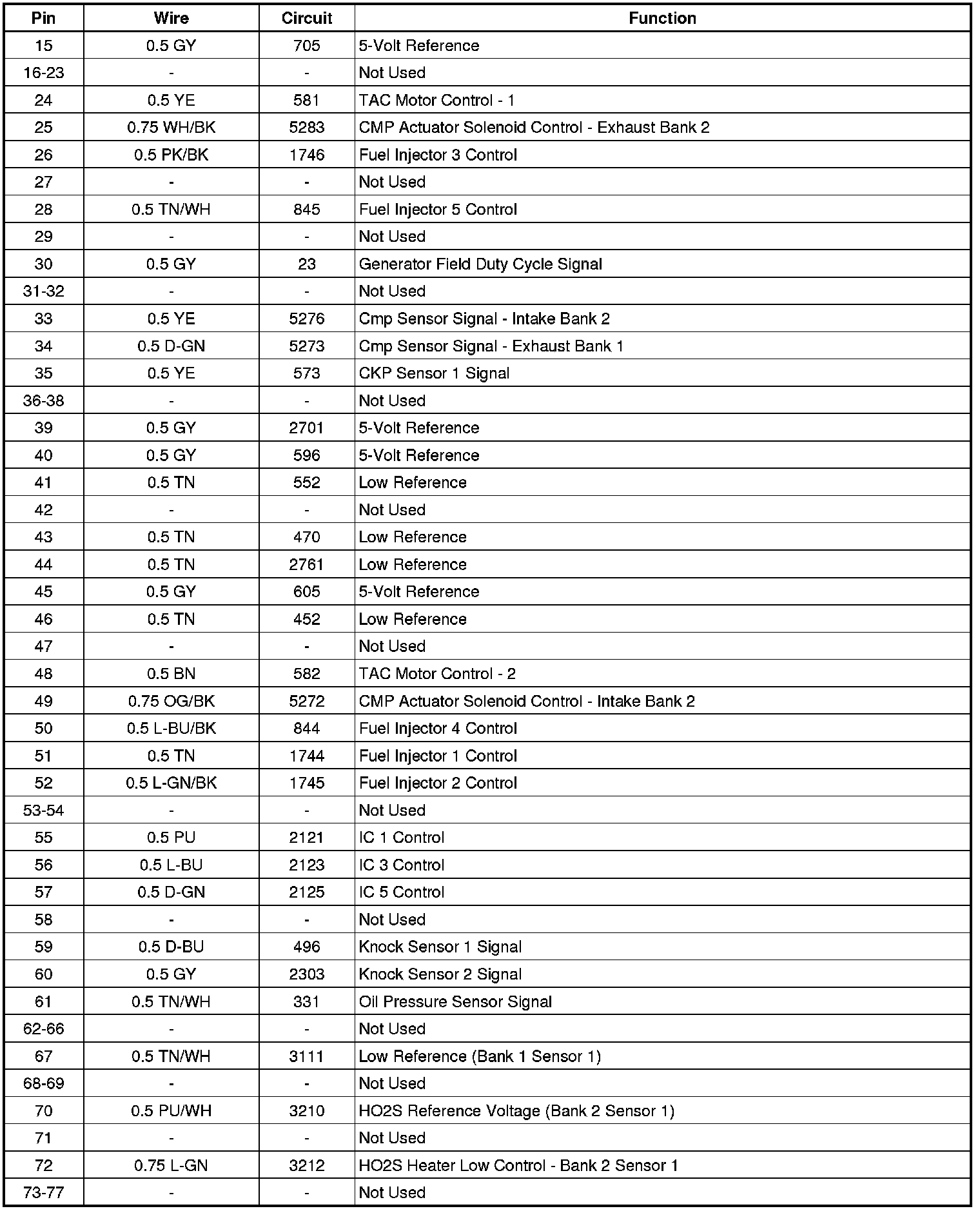

Engine Control Module (ECM) X3 (LH2 - Gas, 8 Cylinder, 4.6L, SFI, V8, DOHC, HO)
