Door Lock Status Indicator Replacement

Door Lock Status Indicator Replacement

Removal Procedure






Important: Use a plastic tool to remove the status indicator. Metal tools will damage the door trim.

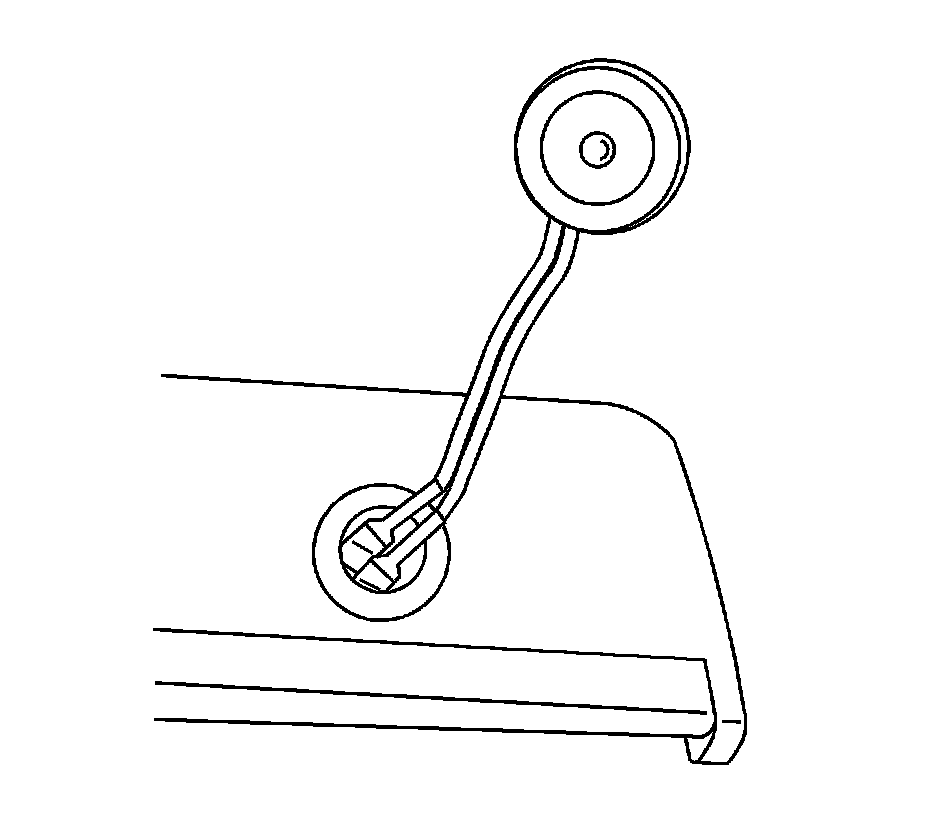

1. Using a flat-bladed plastic tool, carefully pry up at the base of the door lock indicator bezel at the door trim panel.




2. Remove the door lock indicator. Use care when routing the wire harness from the door trim panel.
3. Disconnect the harness connector from the door lock indicator.



Installation Procedure





1. Disconnect the harness connector from the door lock indicator.
2. Routing the wire harness and connect to the door trim panel.

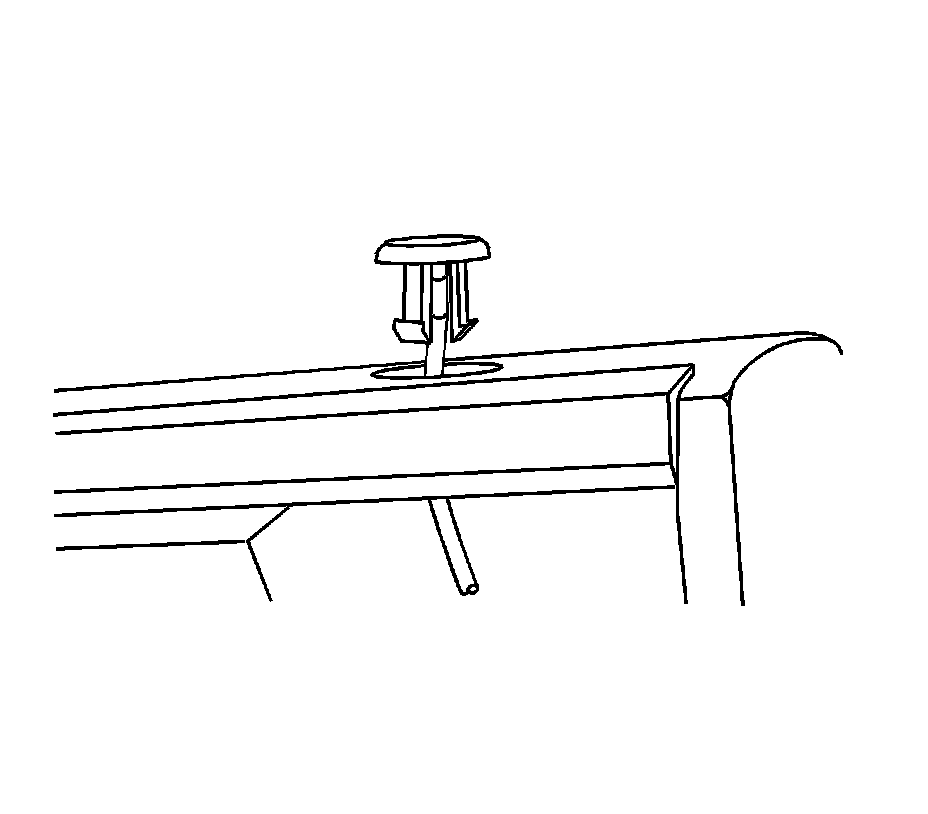

3. Install the door lock indicator to the door trim panel. Push to engage the retaining tabs.
