System Specifications

Crankshaft Balancer Bolt
First Pass 100 Nm (74 lb ft.)
Final Pass 150°

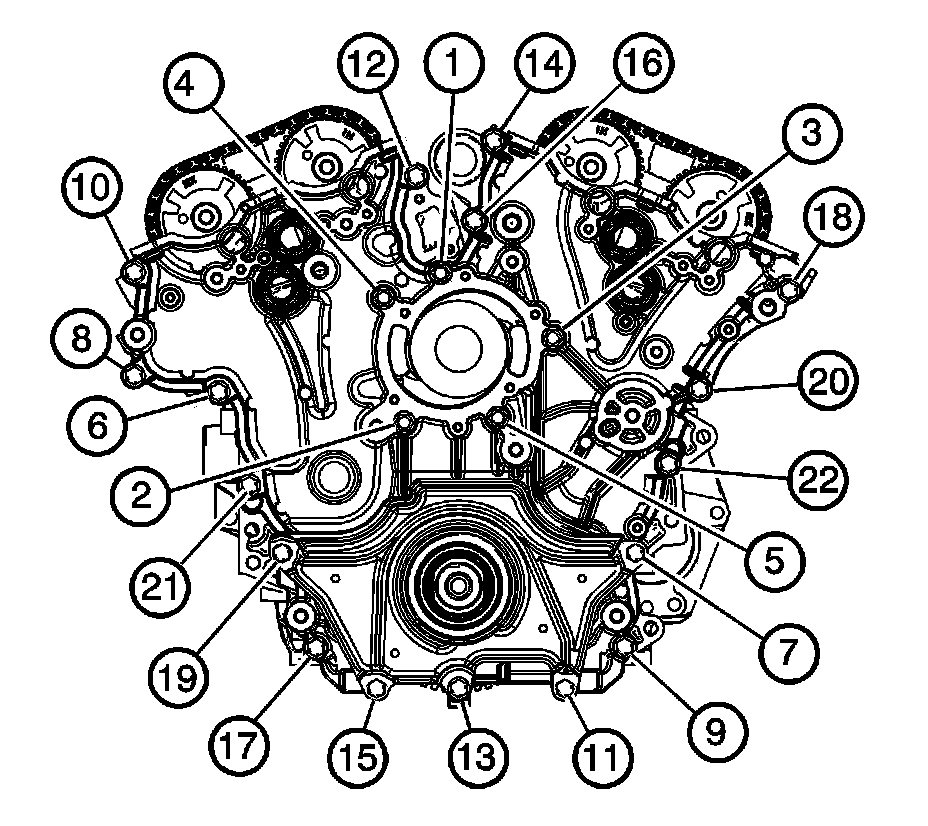

Engine Front Cover Bolts (in the sequence shown)
First Pass in sequence 20 Nm (14 lb ft).
Second Pass in sequence an additional 60 degrees.
Primary and Secondary Camshaft Drive Chain Tensioner Bolts
First Pass 5 Nm (44 lb in)
Final Pass 23 Nm (17 lb ft)
