Distance Sensor: Locations

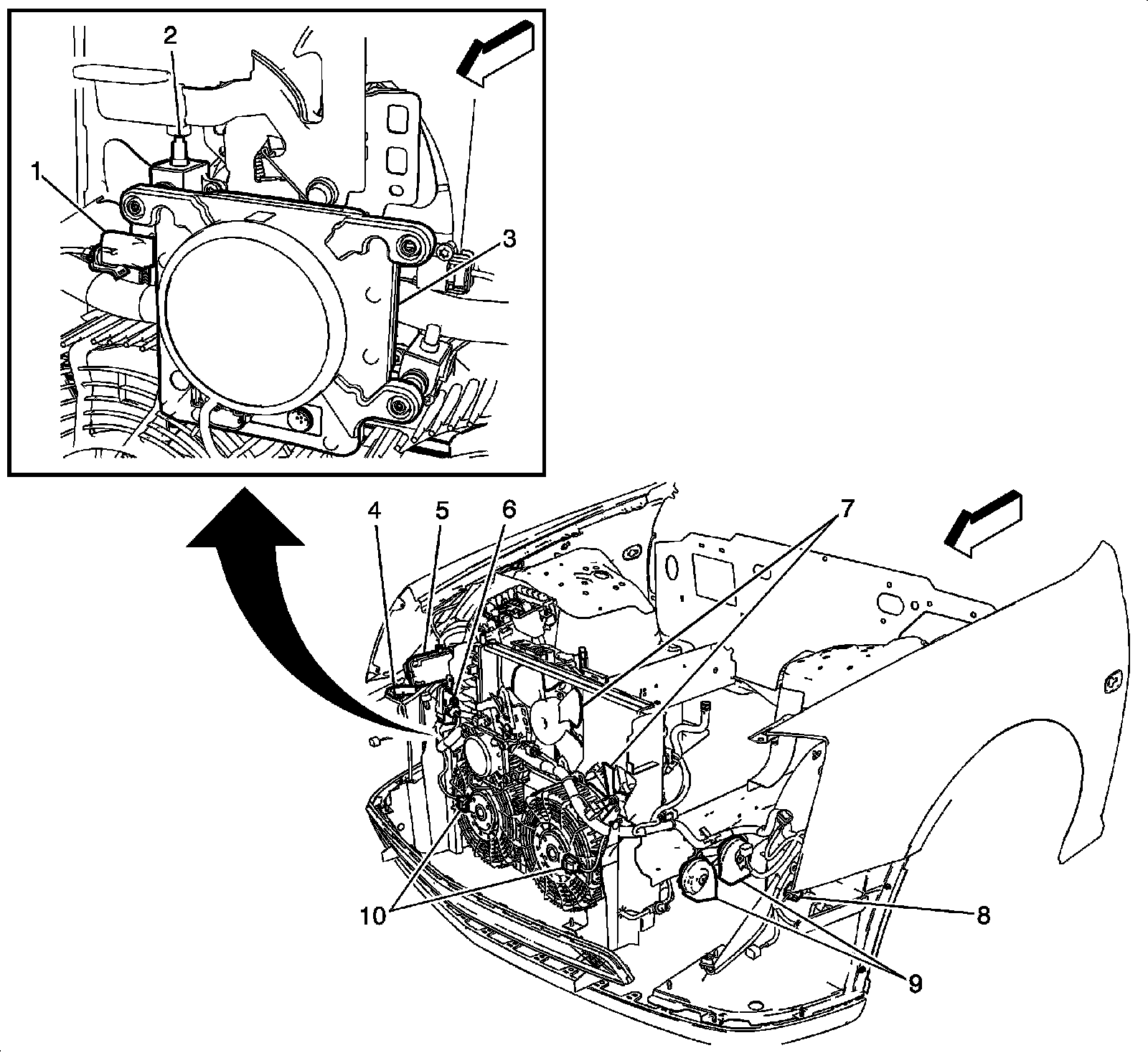

Front of Vehicle/Engine Compartment Component Views

Forward Lamp Harness Components




1 - Ambient Air Temperature Sensor
2 - Hood Ajar Switch
3 - Distance Sensing Cruise Control (DSCC) Module (K59)
4 - Tire Pressure Receiver - Right Front (UH3)
5 - Headlamp Leveling Module (TR7)
6 - Air Quality Sensor (K14)
7 - Engine Cooling Fans-Standard
8 - Tire Pressure Receiver - Left Front (UH3)
9 - Horn Assembly
10 - Engine Cooling Fans-Heavy Duty
