Acceleration/Deceleration Sensor



Component Connector End Views

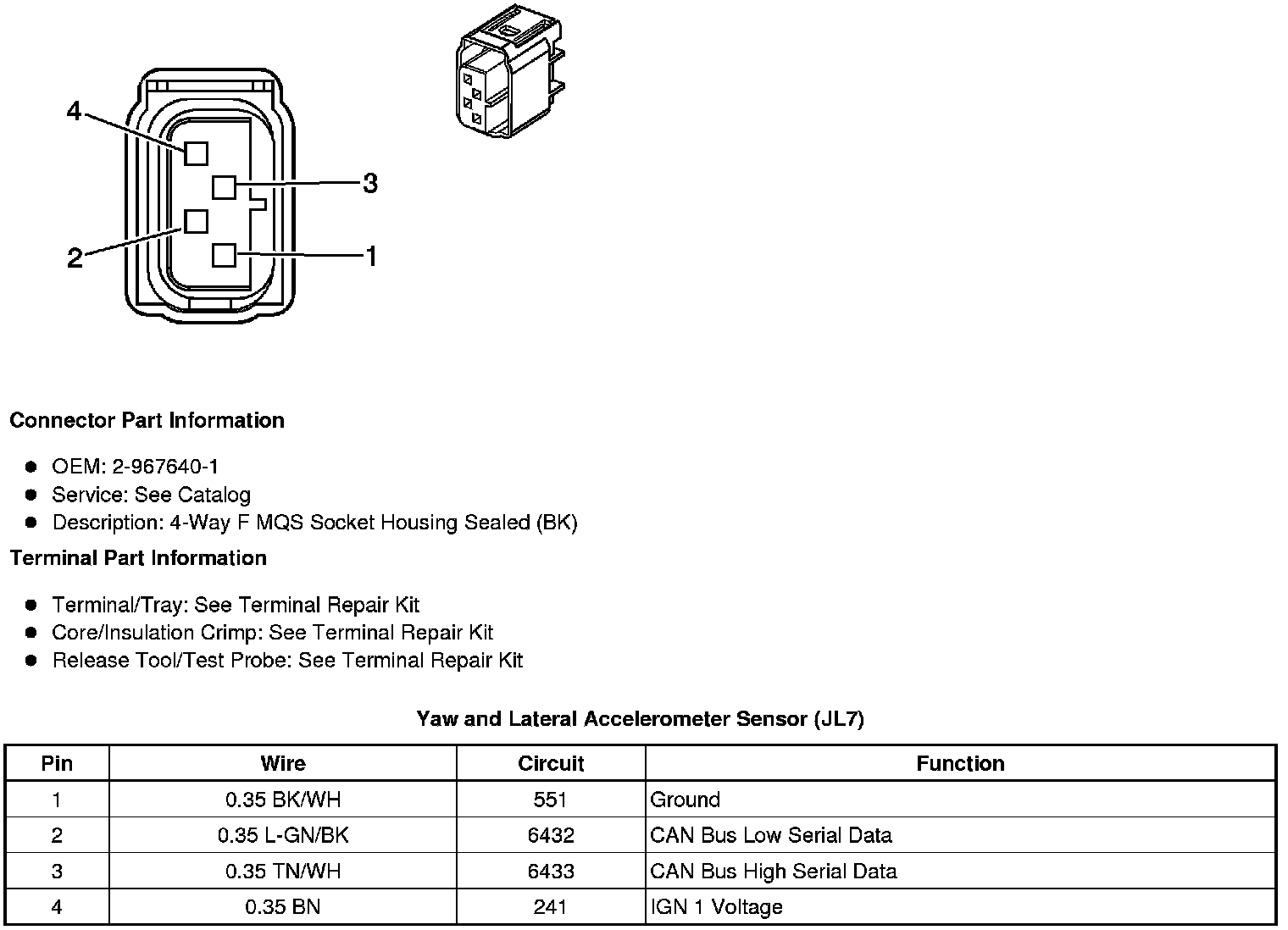

Yaw and Lateral Accelerometer Sensor (JL7)

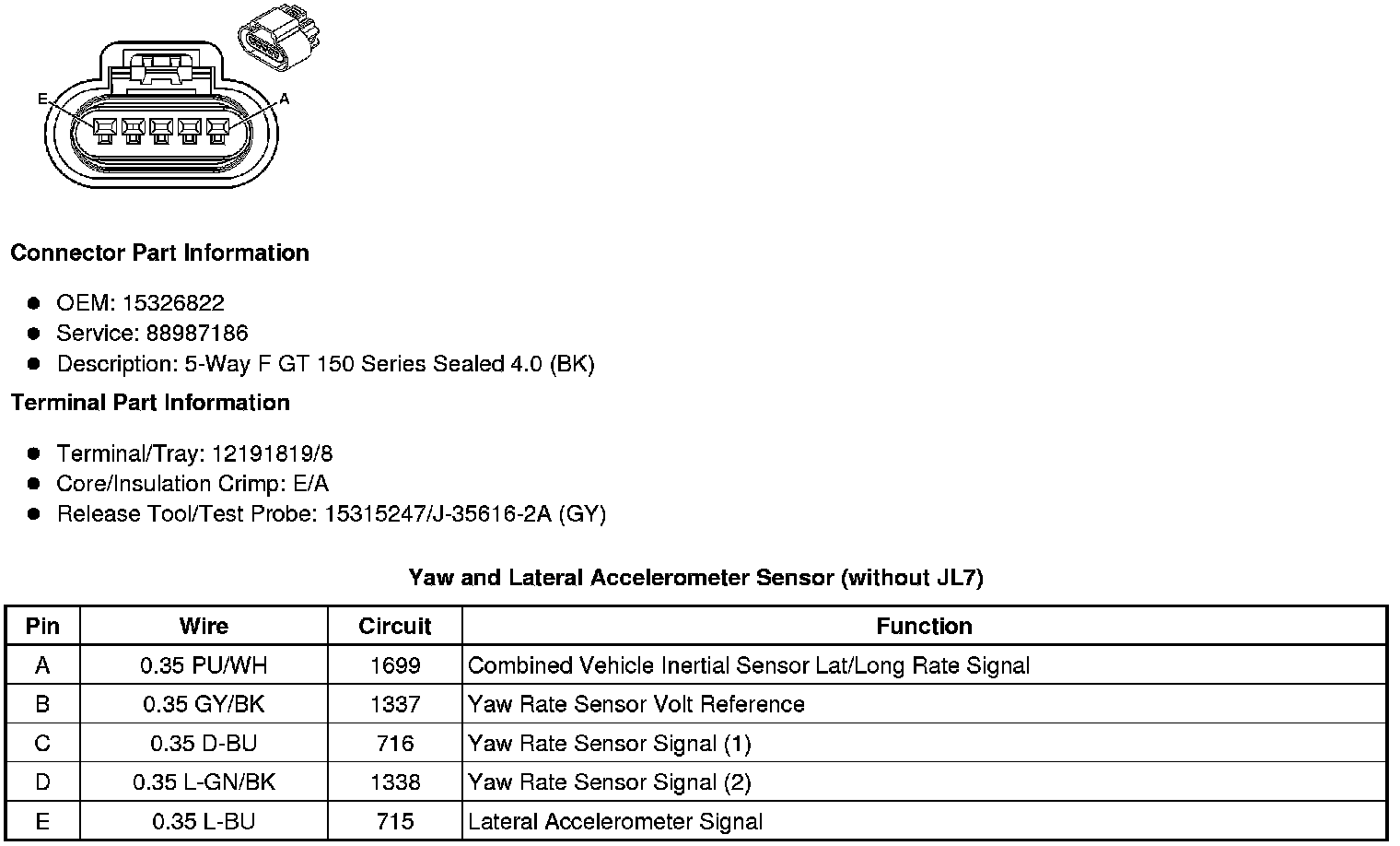

Yaw and Lateral Accelerometer Sensor (without JL7)
