Antitheft Motion Sensor



Component Connector End Views

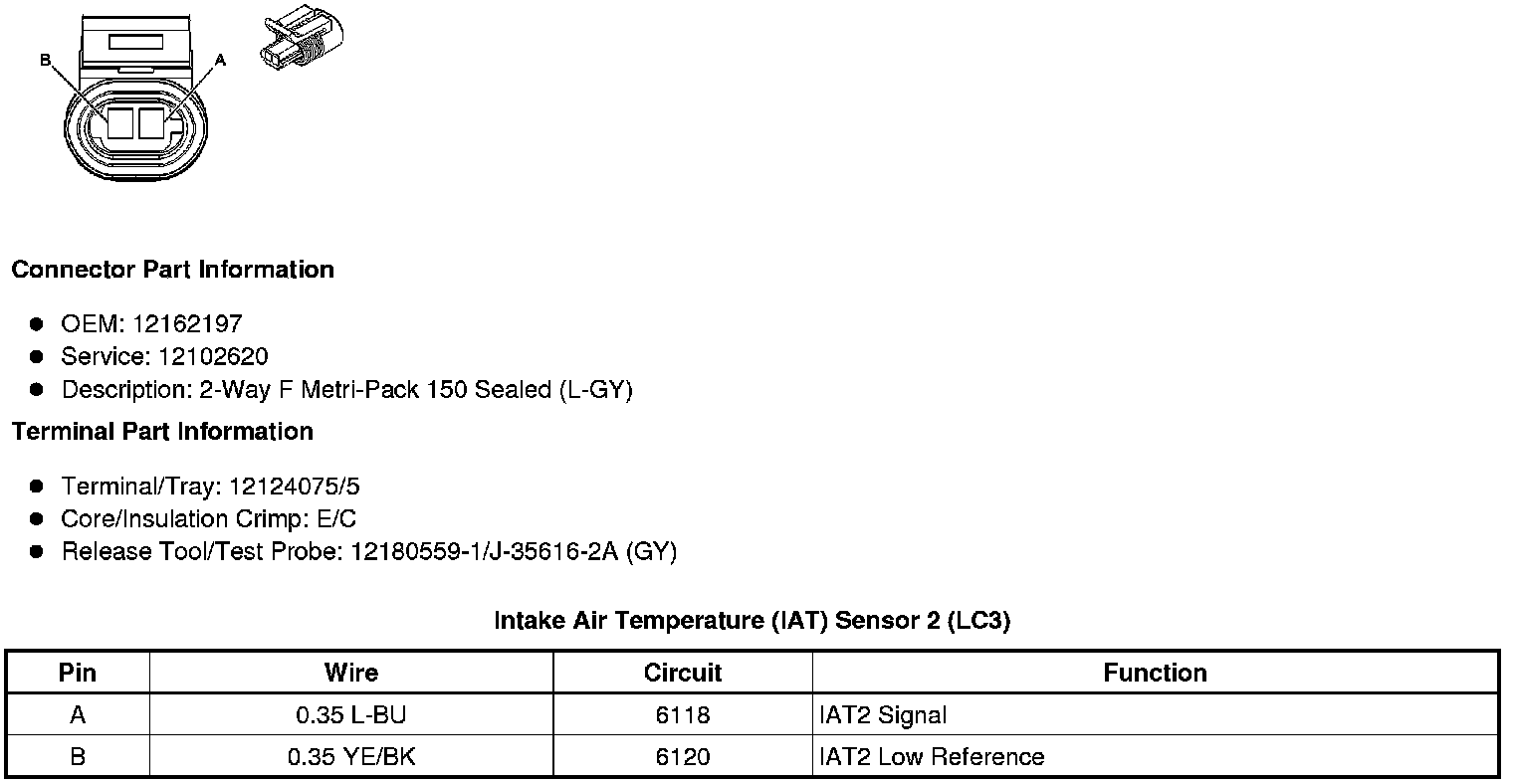

Intake Air Temperature (IAT) Sensor 2 (LC3 - 8 Cyl, 4.4L, MFI, V8, SC, ALUM, DOHC)
