Control Module HVAC



Component Connector End Views

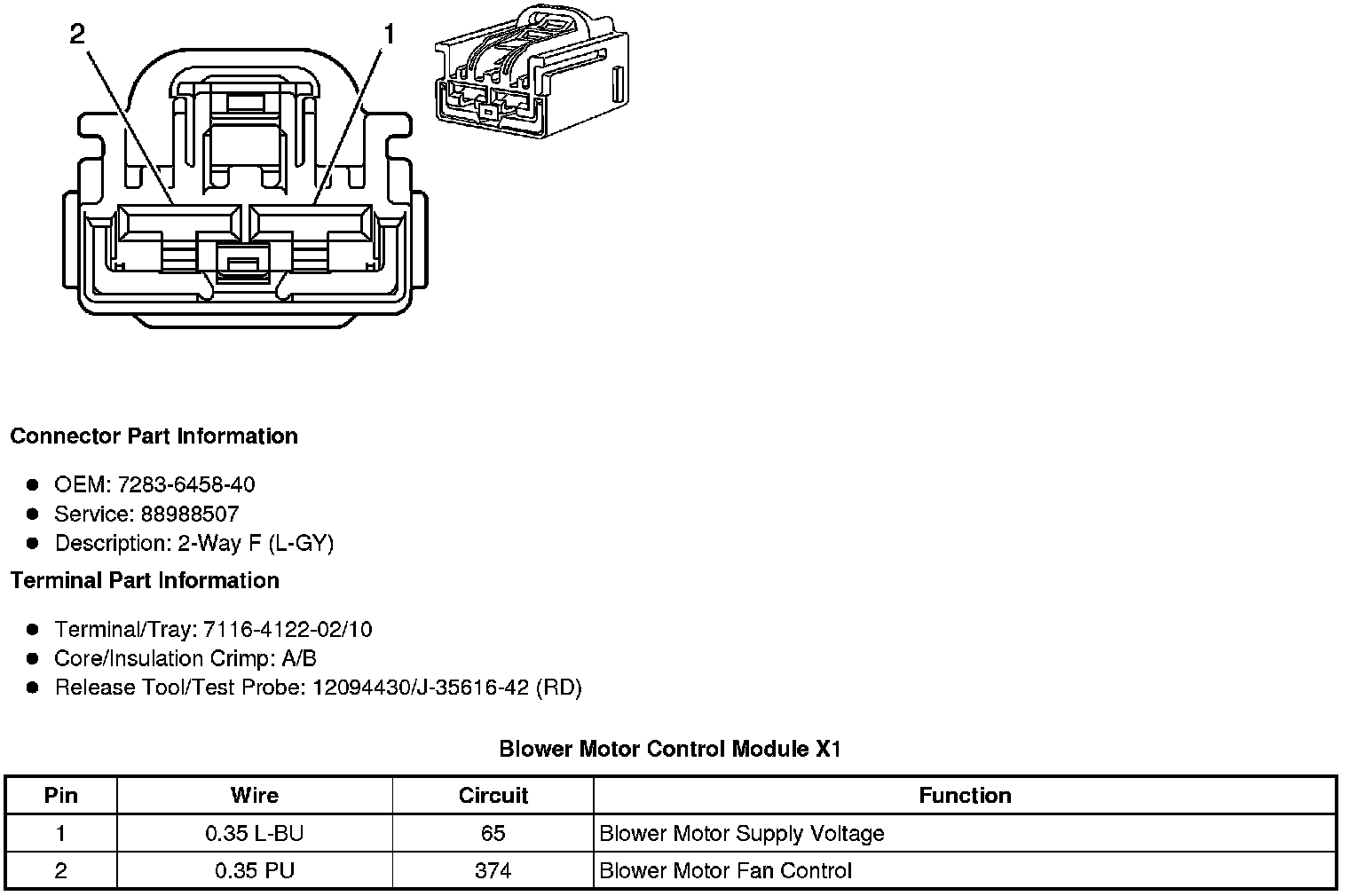

Blower Motor Control Module X1

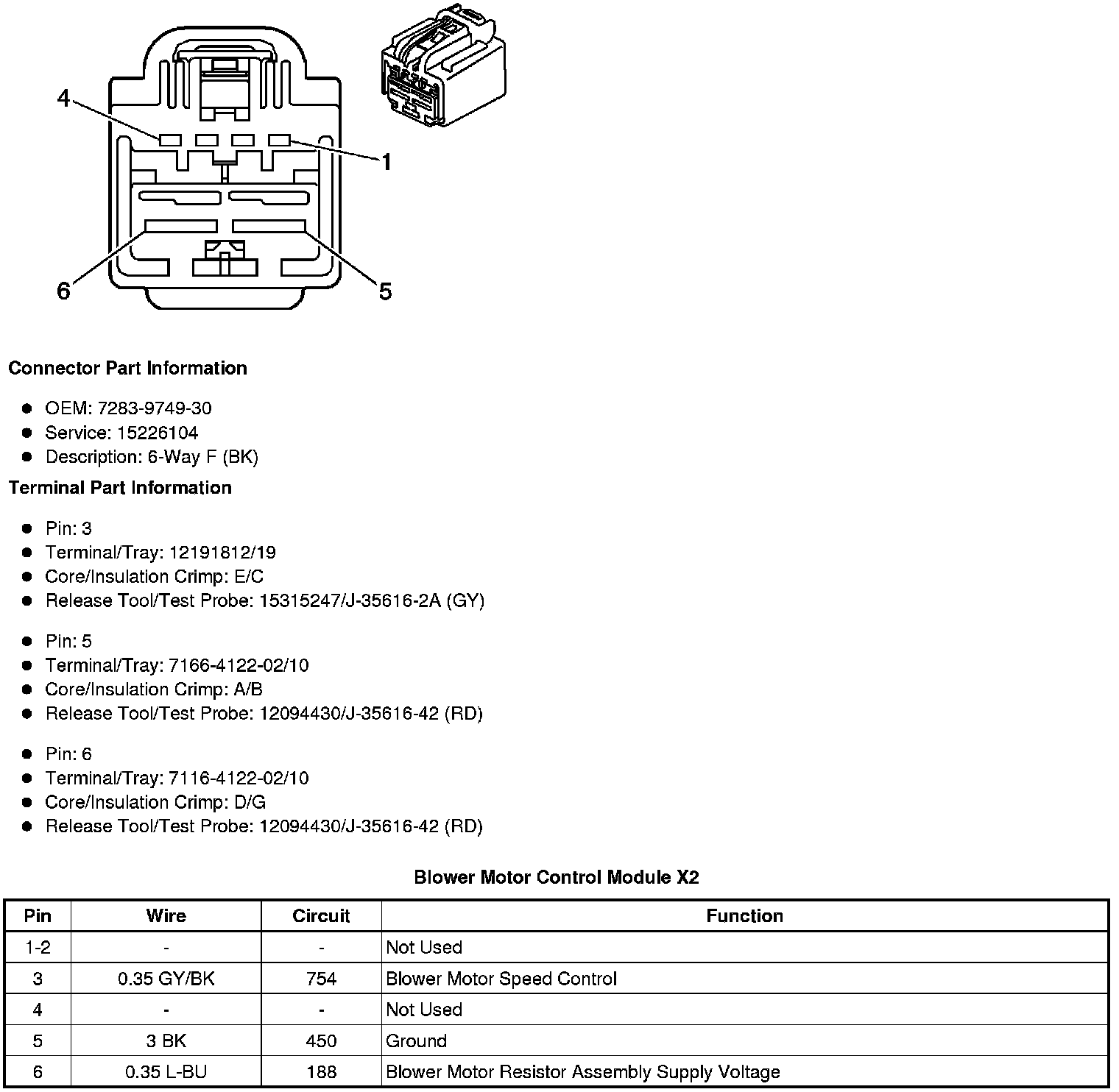

Blower Motor Control Module X2
