Wiper Switch



Component Connector End Views

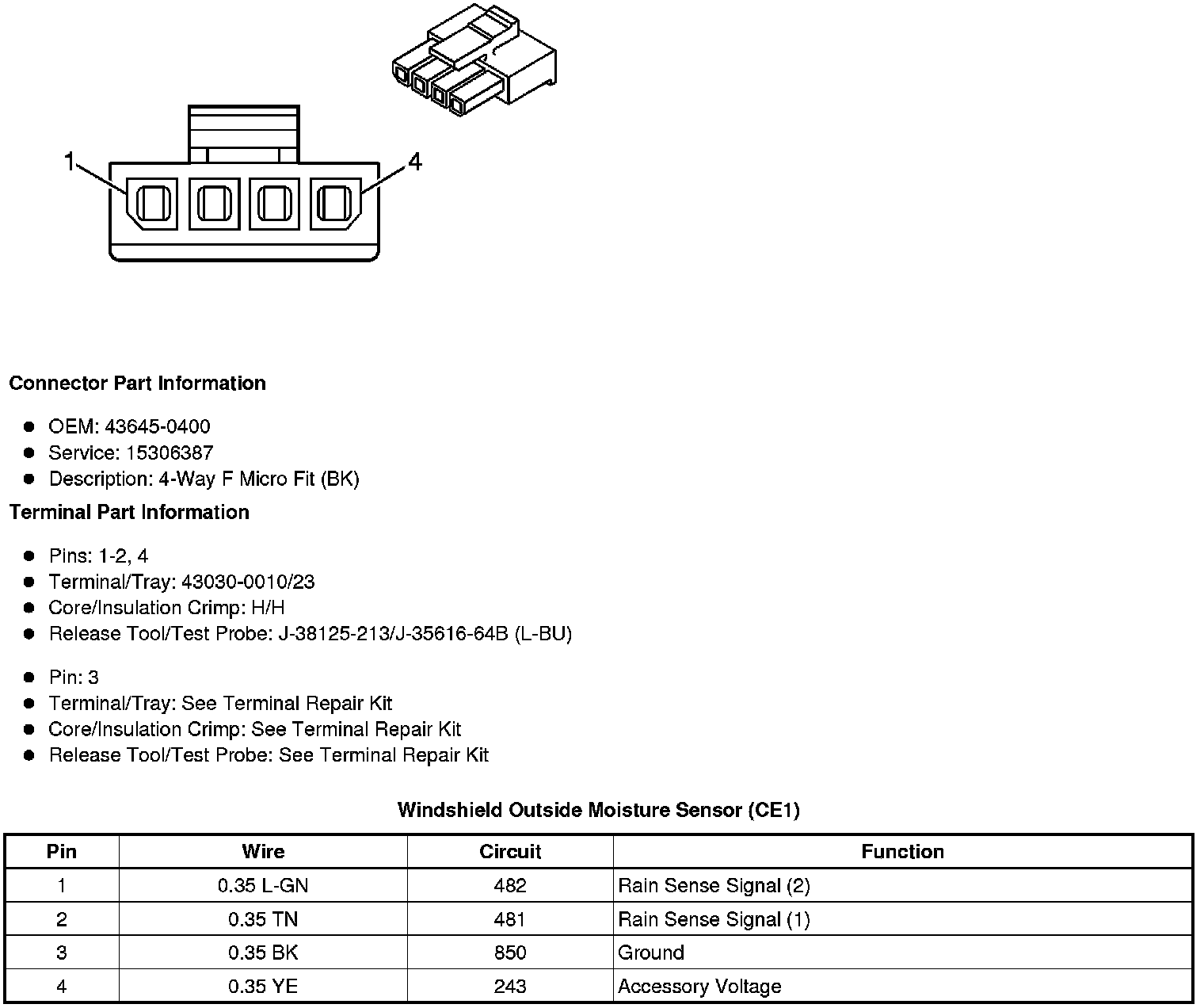

Windshield Outside Moisture Sensor (CE1)






Windshield Washer Fluid Level Switch






Windshield Washer Fluid Pump

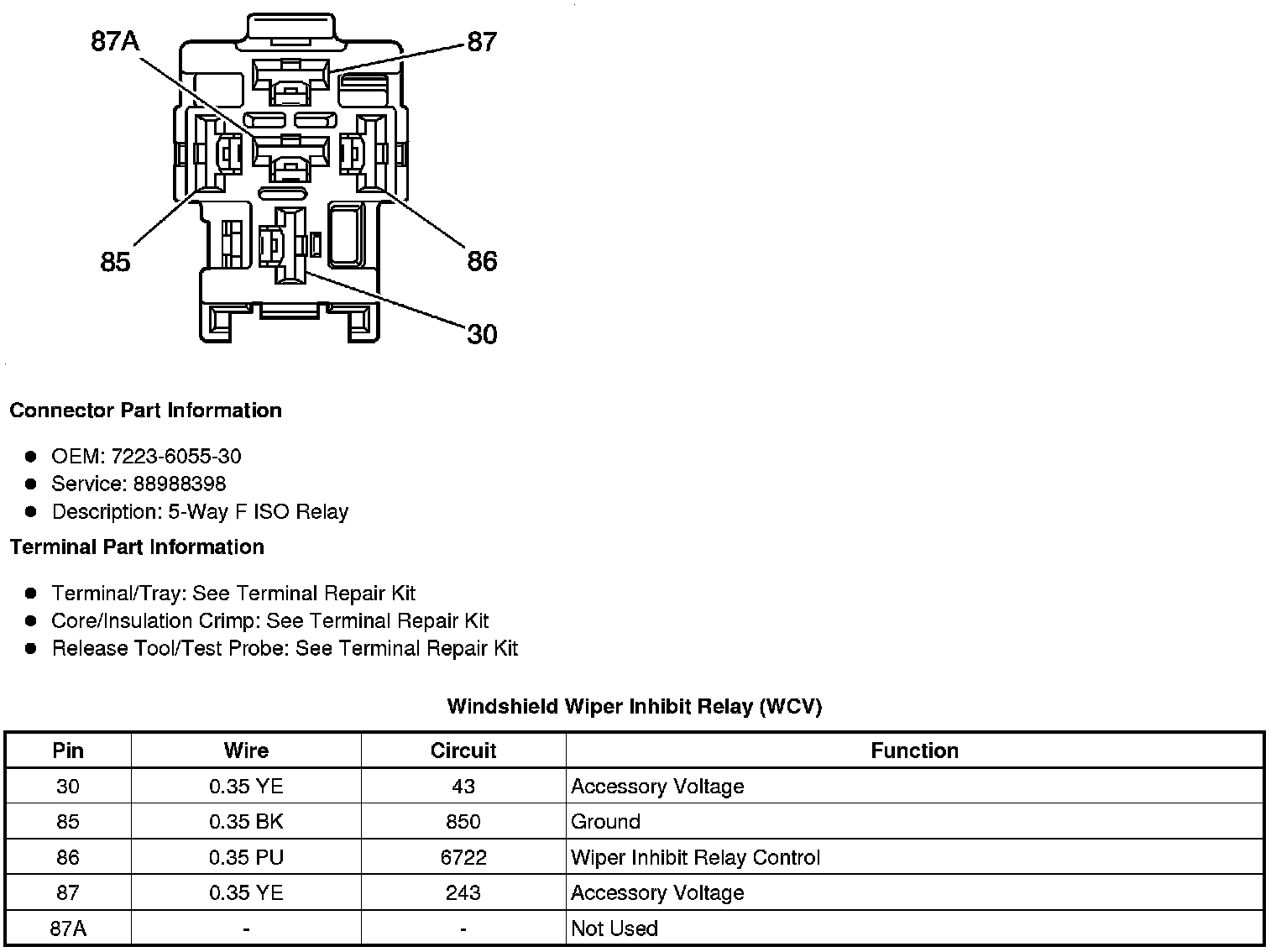

Windshield Wiper Inhibit Relay (WCV)

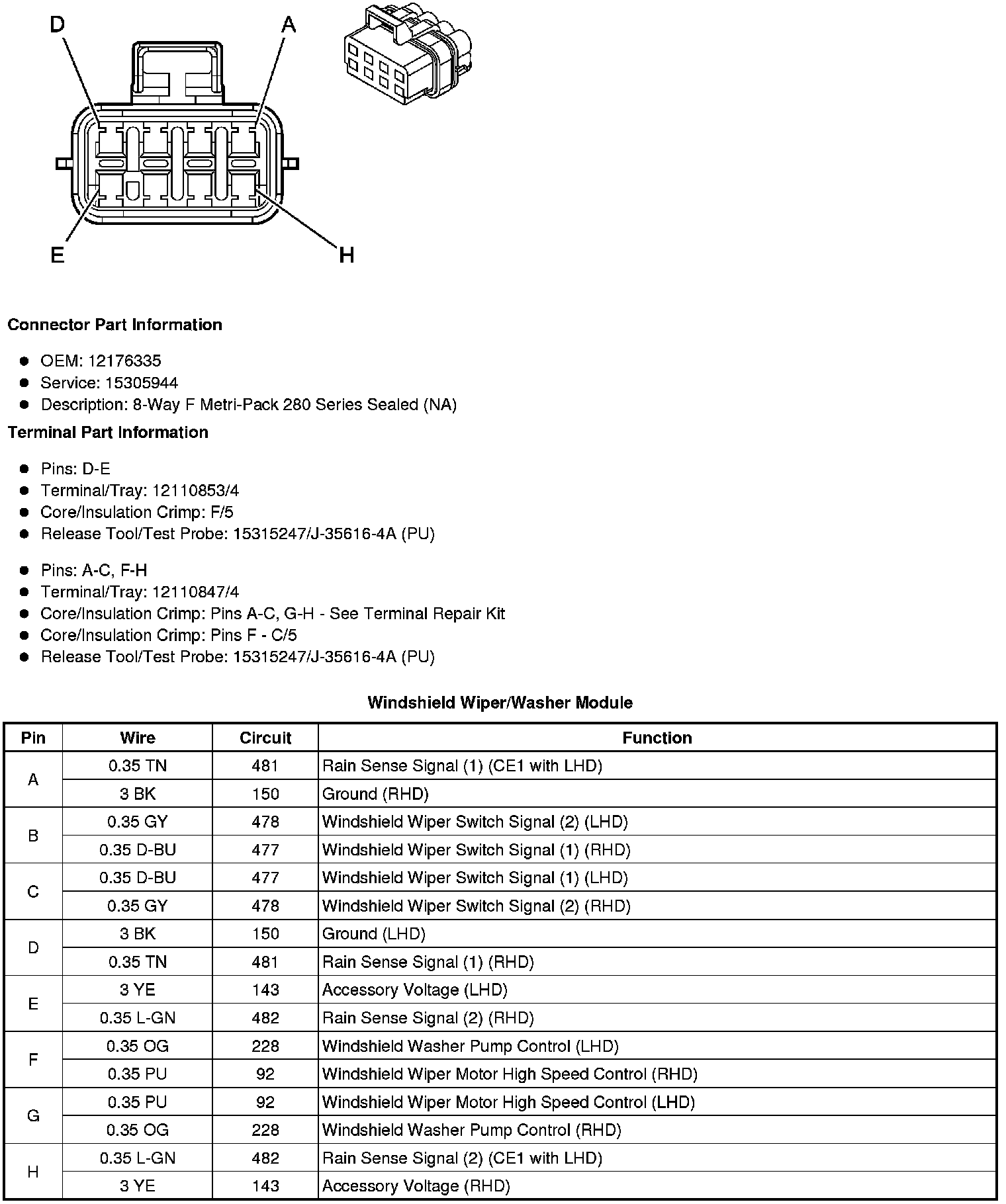

Windshield Wiper/Washer Module

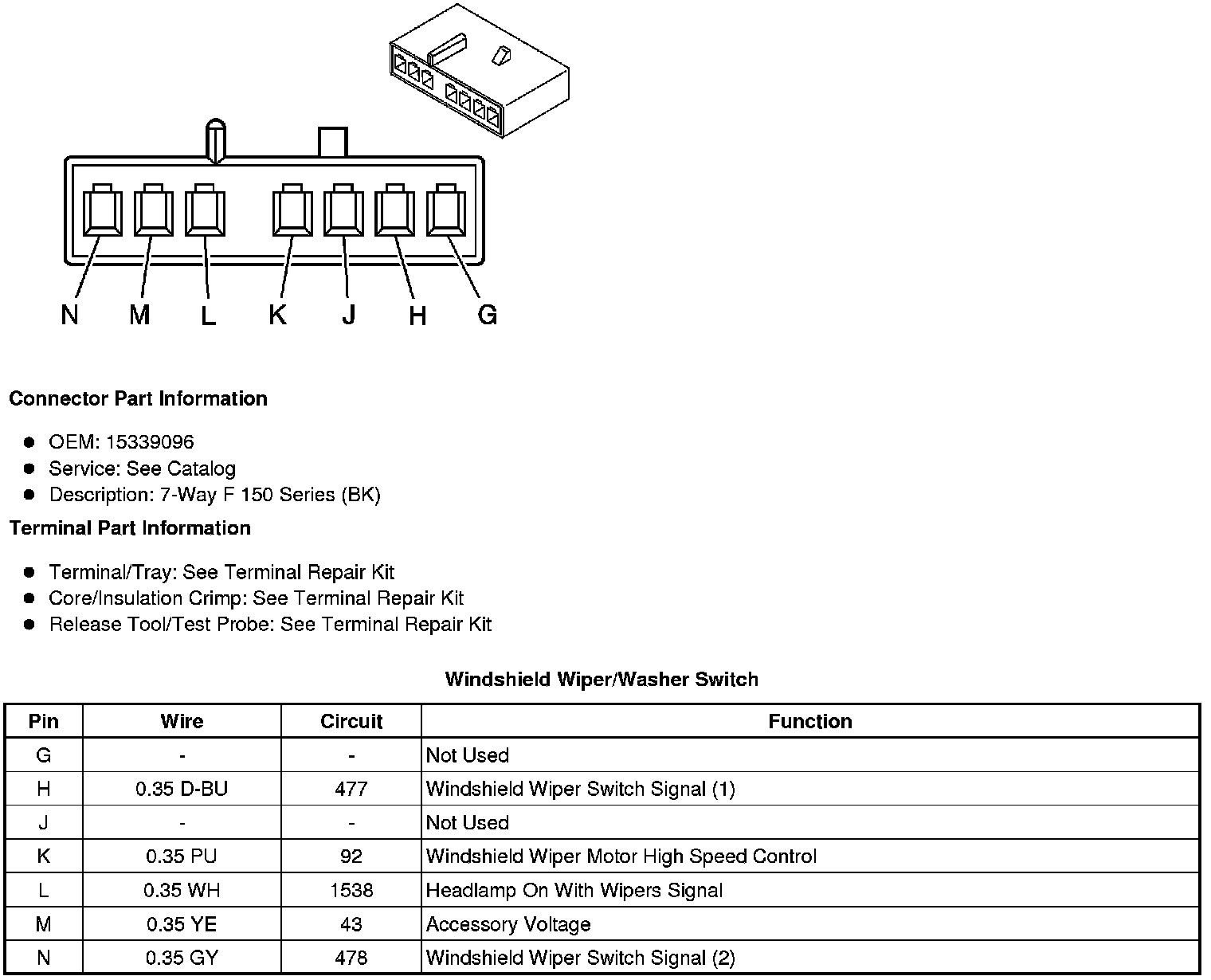

Windshield Wiper/Washer Switch
