Installation Procedure

NOTE: Refer to Fastener Notice .

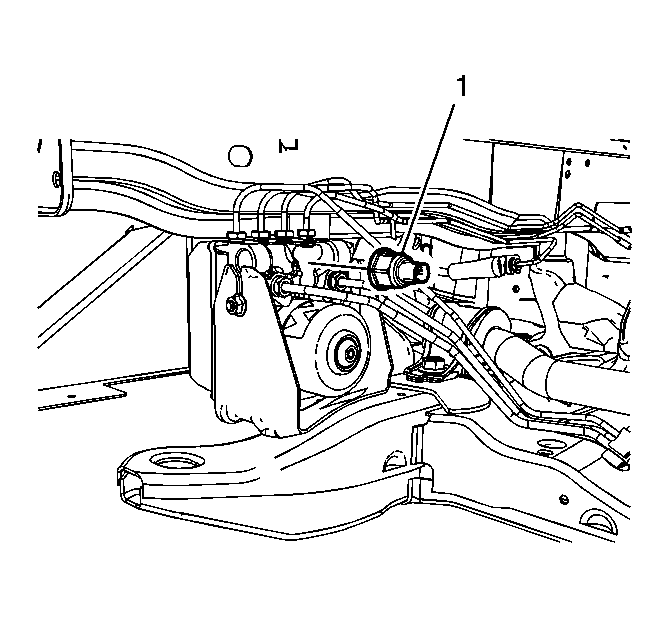

Fig 1: View Of Brake Fluid Pressure Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Install the brake fluid pressure sensor (1).
Tighten: Tighten the brake fluid pressure sensor to 17 N.m (13 lb ft).
Connect the brake fluid pressure sensor electrical connector.
Install the RH front compartment sight shield. Refer to Front Compartment Sight Shields Replacement .
Perform the Antilock Brake System Automated Bleed Procedure .
Perform the Diagnostic System Check - Vehicle .
